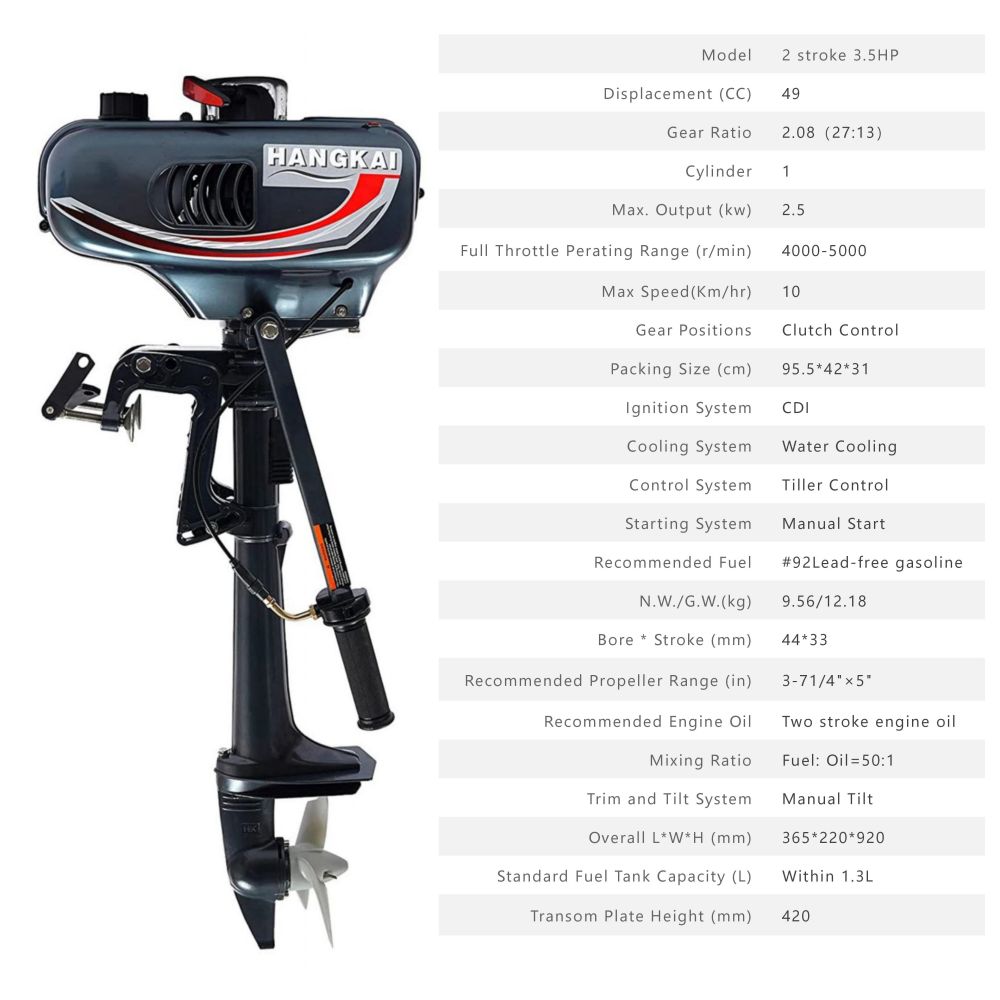

Description
Model: 2 stroke 3.5HP
Displacement (CC): 49
Gear Ratio: 2.08 (27:13)
Cylinder: 1
Max. Output (kw): 2.5
Max Speed (r/min): 4000-5000
Gear Positions: Clutch Control
Packing Size (cm): 95.5*42*31
Ignition System: CDI
Cooling System: Water Cooling
Control System: Tiller Control
Starting System: Manual Start
Recommended Fuel: #92Lead-free gasoline
N.W./G.W. (kg): 9.56/12.18
Bore * Stroke (mm): 44*33
Recommended Propeller Range (in): 3-71/4"x5"
Recommended Engine Oil: Two stroke engine oil
Mixing Ratio: Fuel: Oil=50:1
Trim and Tilt System: Manual Tilt
Overall L*W*H (mm): 365*220*920
Standard Fuel Tank Capacity (L): Within 1.3L
Transom Plate Height (mm): 420
Note:
It is strictly prohibited to start the machine on the shore.
The two-stroke outboard engine shall use a mixture of two-stroke oil and gasoline. The first 10 hours of the new machine is the run-in period, and the fuel ratio has to be gasoline 30L: 1L oil, after 10 hours the ratio is gasoline 50L:1L oil.
Make sure the petrol and oil mix well, otherwise it will damage the machine!
