Features:
LCD Screen: All data of your car can be displayed on the charging station when charging. You can see the charging status including current, voltage and temperature.
Smart Swing Charging: The charging plug is suitable for Type 2 vehicles and equipped with a card control and APP control.
Practical: It has a waterproof design, can work normally even on rainy days and can be mounted safely indoors and outdoors.
APP control: You can set the current and charging time you want on the phone. You can check the data on your mobile phone to know the charging status at any time.
Protection: Under voltage protection, overload protection, short circuit protection, ground circuit protection, grounding protection, over temperature protection, low temperature protection.
Specification:
LCD Dsiplay: 2.8"
Wallbox Size: 310x160x90mm
Number of Phases:3
Voltage: 380V-480V
Current: max 32A
Power: max 22kW

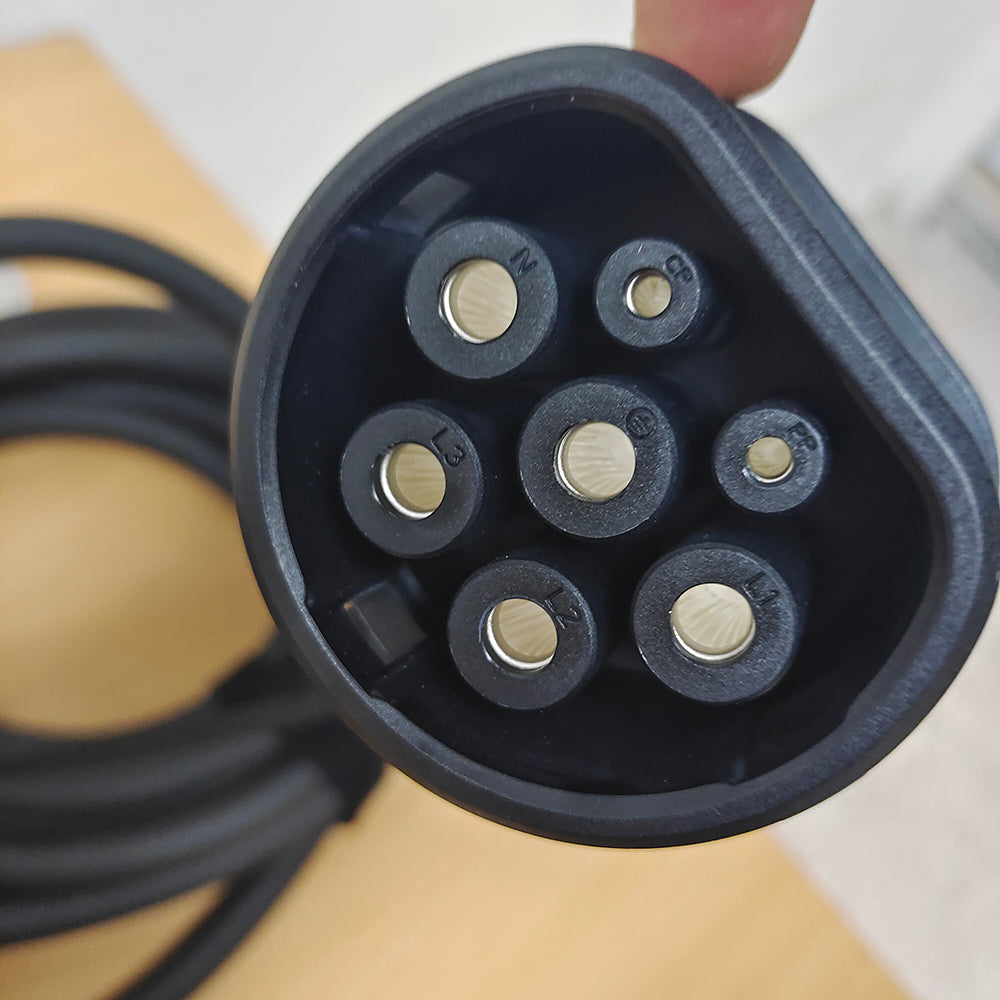

Charger: Type 2 IEC 62196-2
Wire Length: 0.5m+5m
Working Temperatur: -30degree Celsius ~55 degree Celsius
Wire: 3x6.0mm2+2x0.5mm2
Package Included:
1 x EV Charging Station
2 x RFID Card
1 x Installation Accessories Kit
1 x Charger Holder
2 x Instructions
Note: This product require installation on dedicated circuits in accordance with local regulations (units can be digitally Amp limited where suitable to meet regulations).
