Description
Full 360° "any-side-up" operation - use and store in any position
Efficient port configuration and large diameter valves maximize power output
Precision engineered components result in lower vibration
Lighter piston minimizes vibration

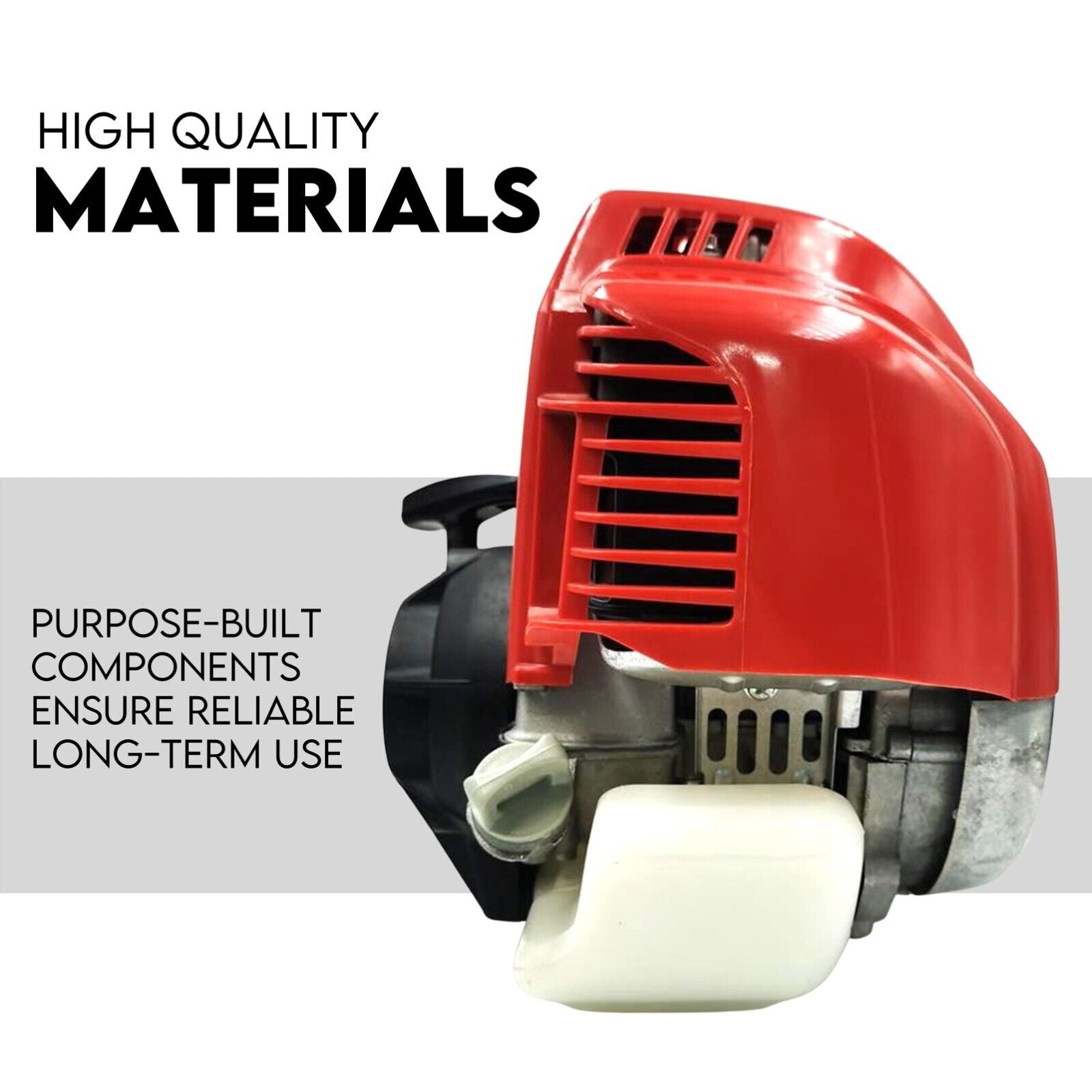

High quality materials, fit, and finish
Easy Starting
Exceptionally Quiet

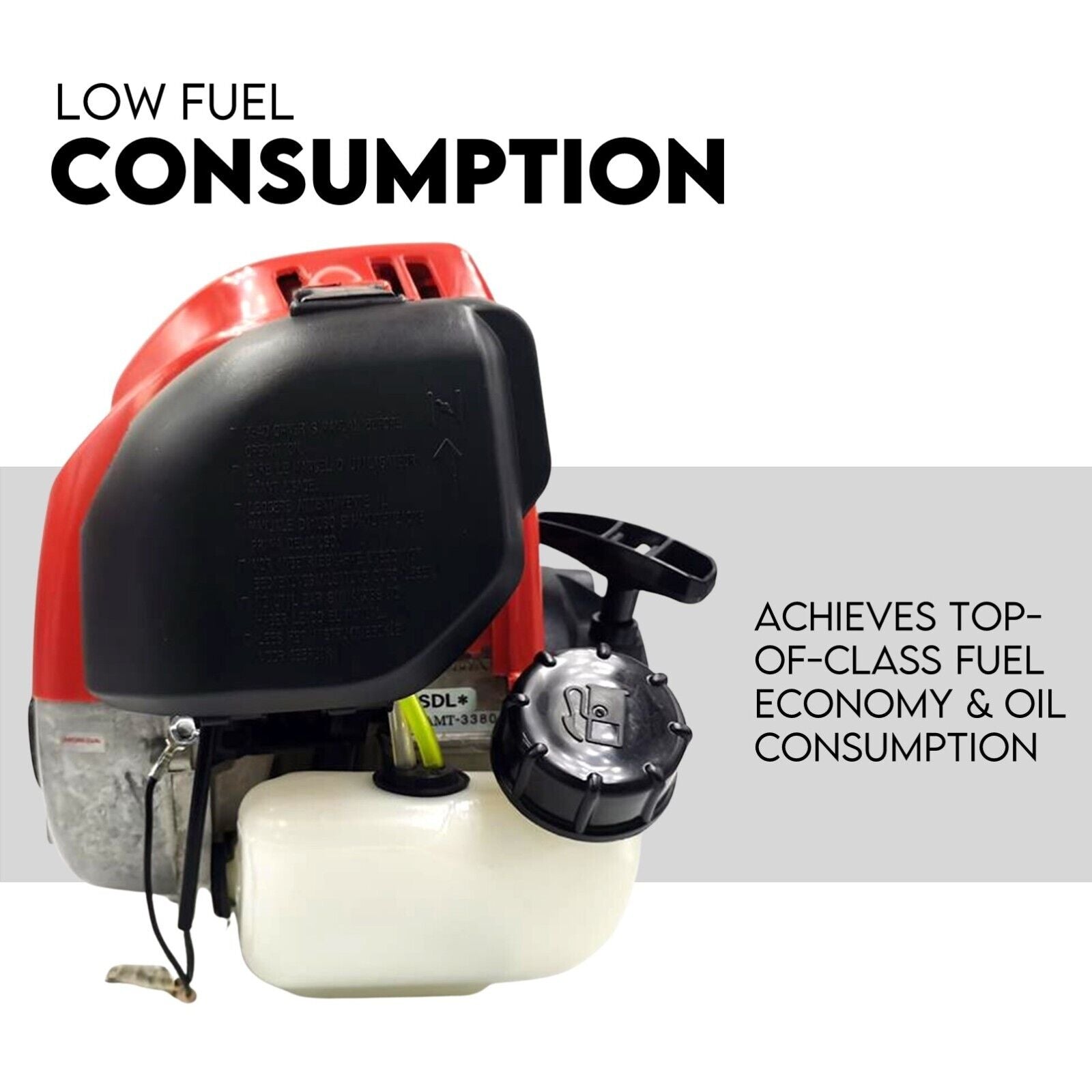

Fuel Efficient, high output operation
Smooth Performance

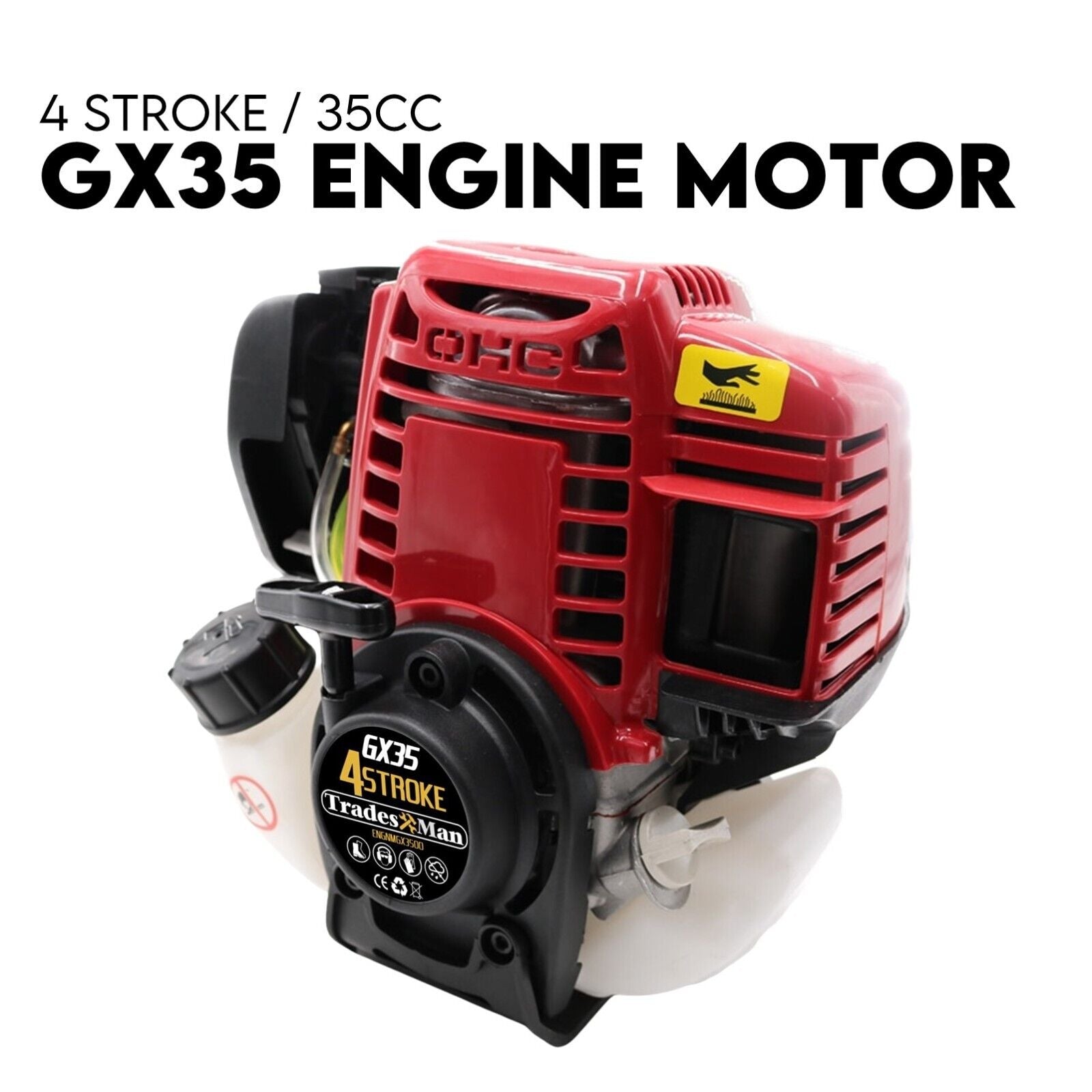

The new Tradesman GX35 35.8cc displacement, 360°- inclinable 4-stroke engine is an ideal power source for a variety of hand-held power equipment.

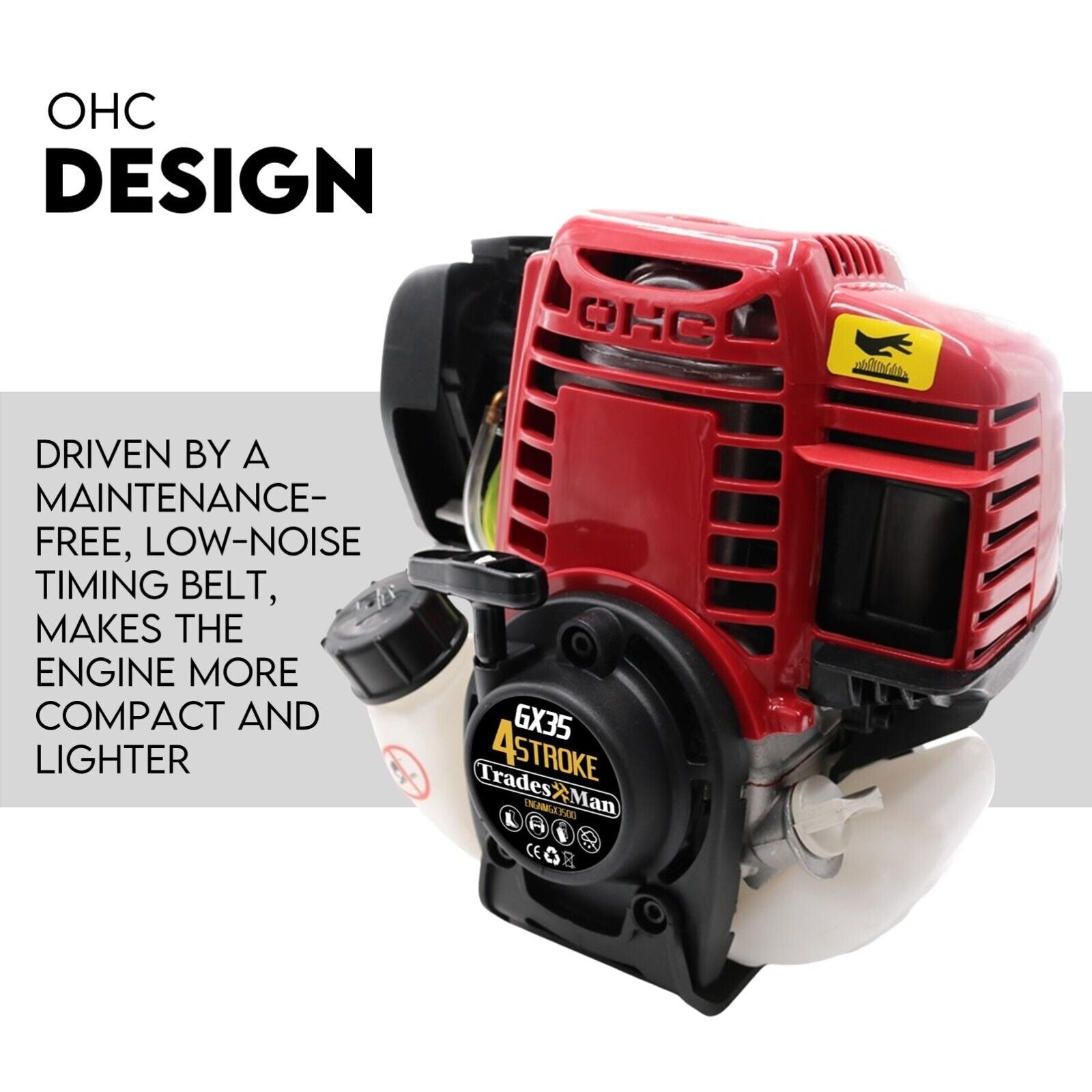

The engine's oil-immersed timing belt OHC configuration makes it possible to incorporate the valve train into the oil reservoir for substantial weight and volume savings. Its rotary slinger pumping lubrication system ensures full oil lubrication no matter what the engine angle, allowing it to be continuously operated or stored in any position.
It also delivers an outstanding balance of all-round performance combined with low noise and low vibration, for efficient, carefree operation.

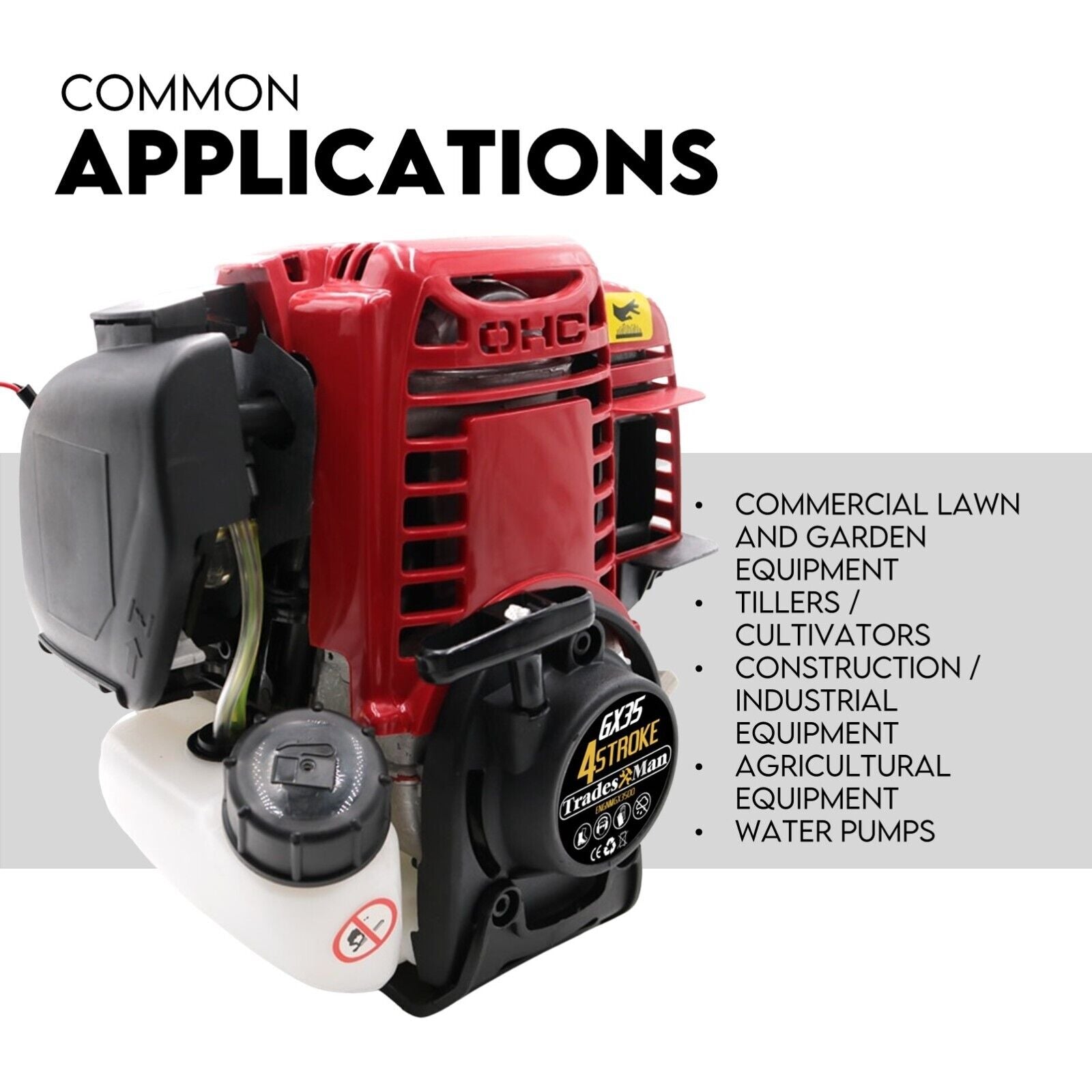

COMMON APPLICATIONS
Commercial lawn and garden equipment
Tillers / cultivators
Construction / industrial equipment
Agricultural equipment
Water pumps
SPECIFICATIONS
Engine type: 4-stroke single cylinder / OHC petrol engine
Bore x Stroke: 39 mm x 30 mm
Displacement: 35.8 cm3
Max Power Output: 1.5 kW @ 6,500 rpm
Max Torque: 1.6 Nm @ 5,500 rpm
Max Rotation: No Load @ 10,000 rpm
PTO Shaft Rotation: Counter Clockwise
Ignition System: Transistorized magneto
Starting System: Recoil
Cooling System: Forced Air
Air cleaner: Semi-dry
Oil Capacity: 0.10 Litres
Fuel: Unleaded 86 octane or higher
Fuel Tank Capacity: 0.65 Litres
IN THE BOX
1 - GX35
1 - Manual
