Description

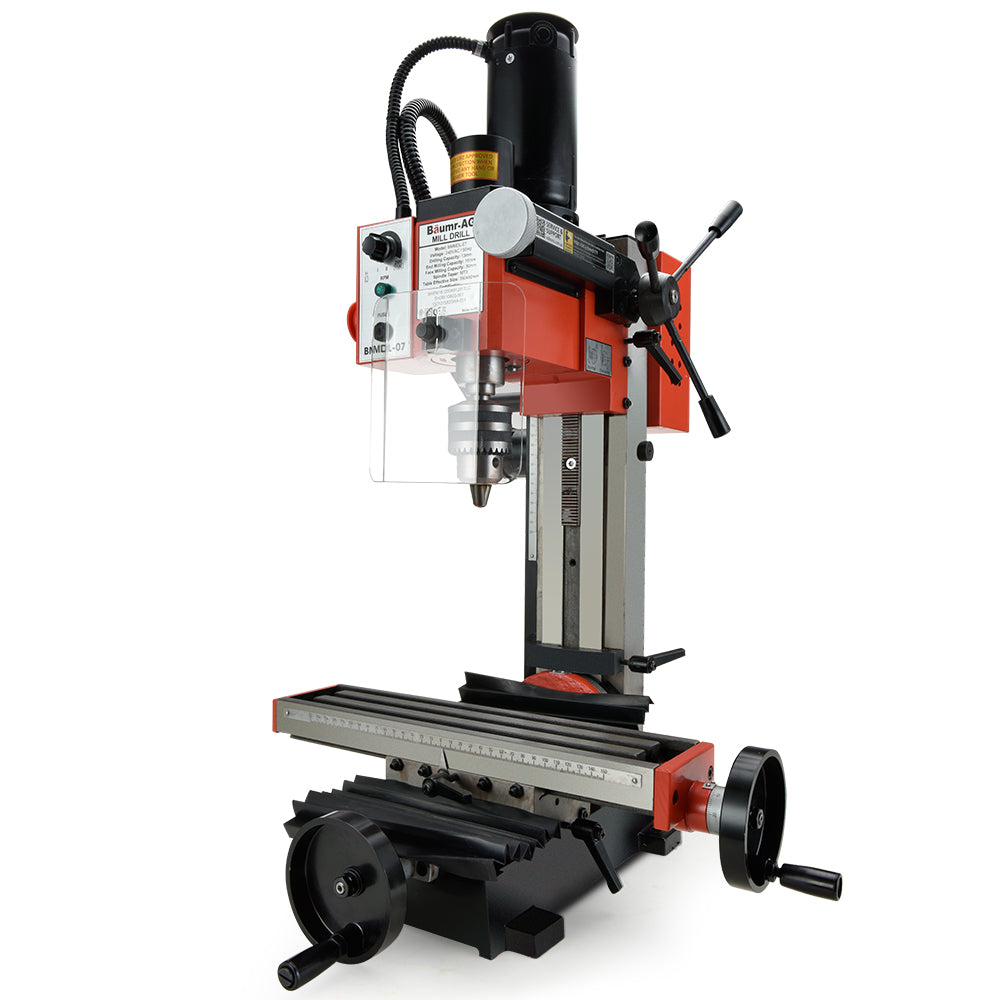

The Baumr-AG BMMDL-07 Mini Mill Drill is a versatile and accurate tool especially designed for model engineers and hobbyists to effortlessly drill, deep mill and face mill. With a 350W DC motor and geared drive there’s no shortage of power on tap! There’s a 2-speed gearbox for optimal torque, and with a variable rotation speeds up to 2500rpm you can work with most metals.
There’s a fine feed for milling and a coarse feed for drilling, and when accurate positioning of holes is required you can use the quick adjust depth limiter. The Baumr-AG boasts a sturdy cast iron body and base that only takes up a small footprint on your workbench.
The precision machined working table has T-slots to facilitate clamping of workpieces of up to 300x200x200mm, and handwheels ensure precision movement of the X and Y axis within a thousands of an inch. The column can conveniently be tilted either side up to 45 degrees from vertical.
For optimal safety there’s a transparent spindle guard, rubber ways chip guard and shut off switch. The Baumr-AG comes with a 14mm keyed drill chuck supplied, and is ready to accept MT3 collets for securing a wide range of cutting tools. Slice through your next project with the Baumr-AG Mini Mill Drill!
Specification
-
Brand: Baumr-AG
-
Model: BMMDL-07
-
Output Power: 350W
-
Voltage: 240V AC
-
Power Plug: Australian Standard
-
Drilling Capacity: 13mm
-
End Mill Capacity: 16mm
-
Face Mill Capacity: 30mm
-
Tilt angle: -45 to +45
-
Max X Axis Table Travel: 220mm
-
Max Y Axis Table Travel: 100mm
-
Max Z Axis without collet: 180mm
-
Spindle Taper: MT #3
-
Throat: 167mm
-
Spindle Speed: Low :0~1000 RPM; High: 0~2500 RPM
-
Swing: 324mm
-
Spindle to Table: 292mm
-
Spindle to column: 162mm
-
Work Table Load Capacity: 25kg
-
T-slot size: 12mm
-
Table Size: 390x92 mm
- Assembly Required
IN THE BOX
-
1 x Baumr-AG Mini Mill Drill
-
1 x 14mm Drill Chuck
-
1 x Lubrication Bottle
-
1 x Assembly Kit
- User Manual is accessible online
SIZE & WEIGHT
-
Carton Dimensions (W x L x H): 54 x 48 x 70cm
-
Carton Weight: 60kg
-
Product Dimensions (W x D x H): 51 x 52 x 76cm
-
Product Weight: 50kg
SKU: TOLMDLBMRA07X
