Description
Deutsch Connectors are Waterproof.
They are suitable for up to 15 amp.
The pins can take automotive cable up to 2mm in thickness.

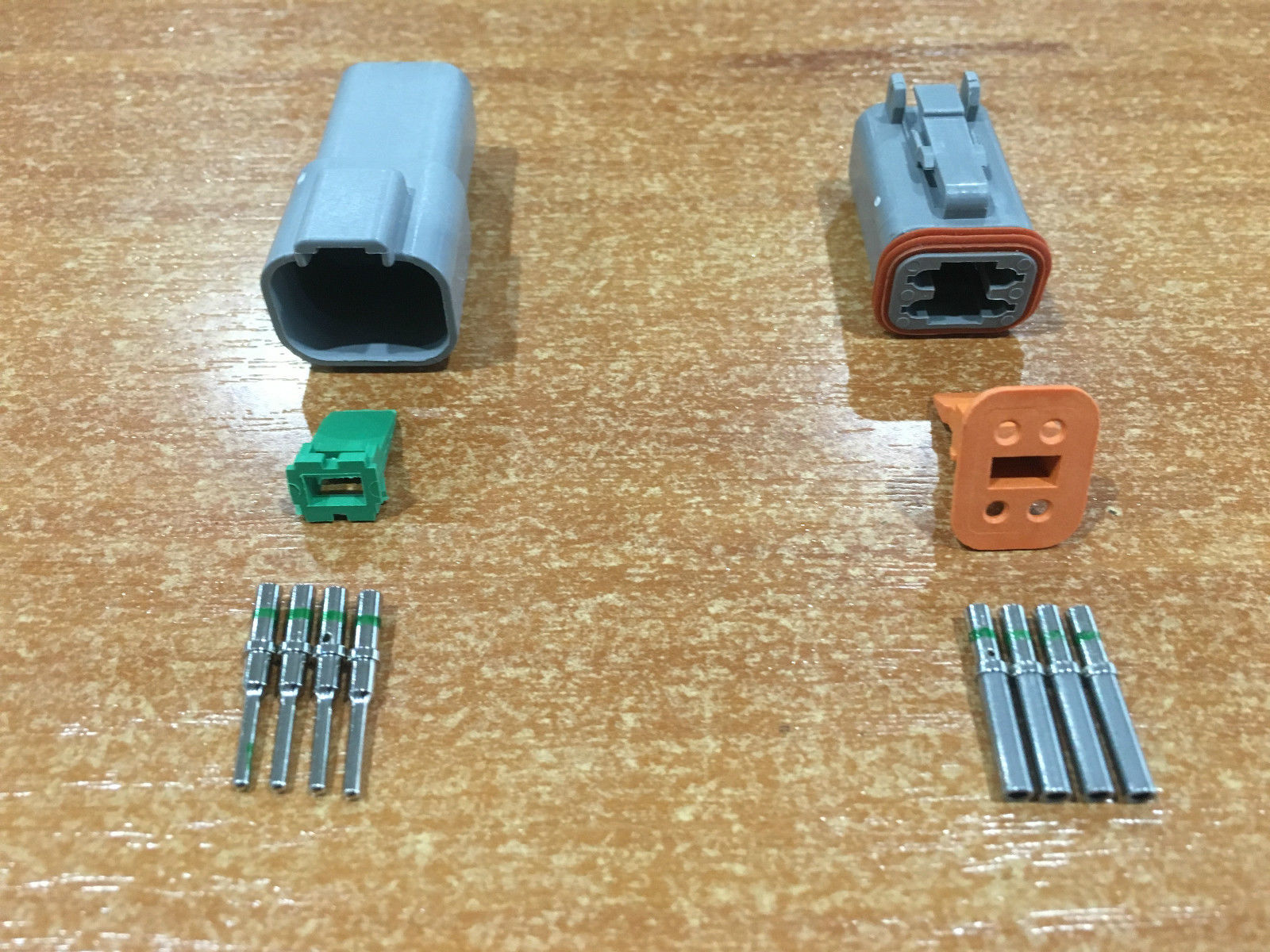

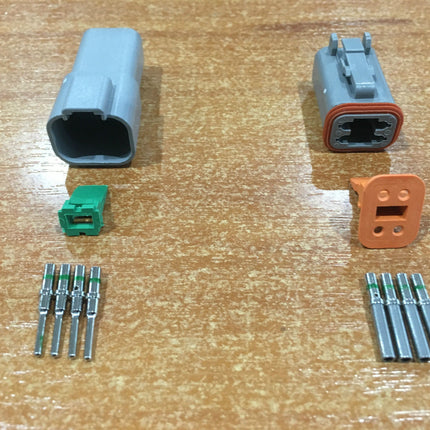

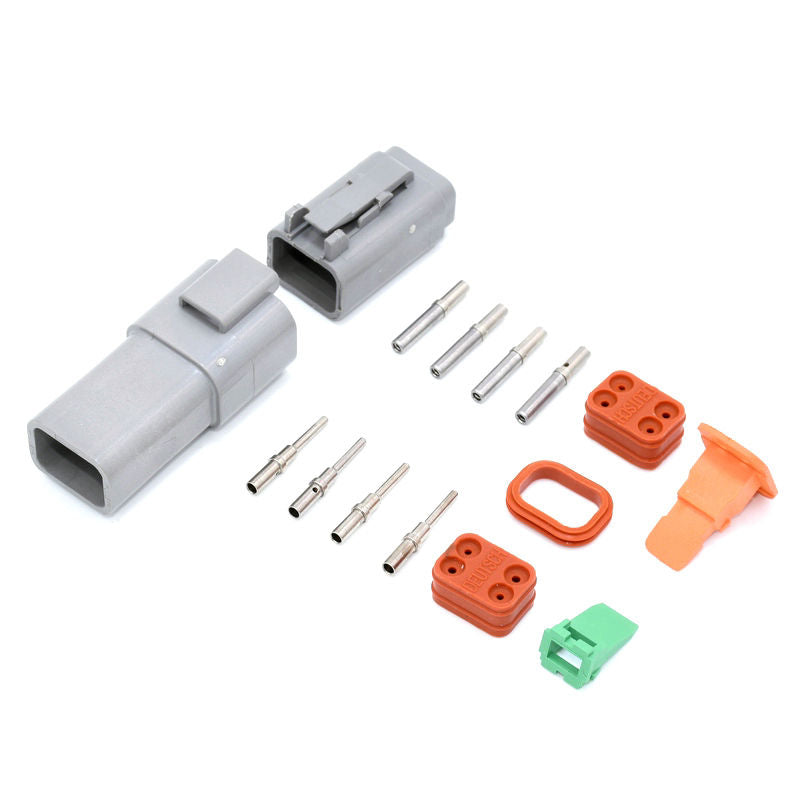

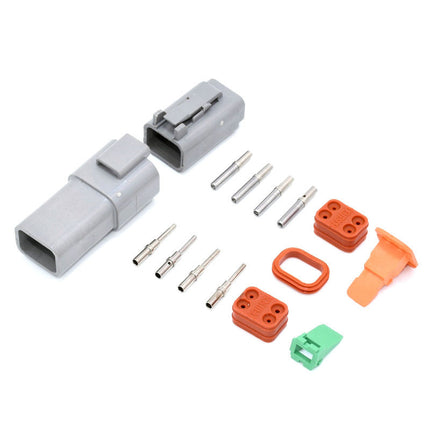

Our Kits contains:
1 X 4-Way Receptacle with Wedgelock
1 X 4-Way Plug with Wedgelock
4 X Nickel Pin Male Contacts to terminate 1.0mm+2 wire
4 X Nickel Socket Female contact to terminate 1.0mm+2 wire
The Deutsch DT Series of environmentally-sealed connectors is specifically design for cable-to-cable applications where even a small degradation in the connection may be critical. They provide one of the most reliable connections at a low cost for 2 to 12 cables.
The housings are moulded from thermoplastic material and silicone seals allow the connector to withstand extremes of temperature (-55C to +125C) and pressurised moisture. They can accept either a solid-copper crimp type contact for critical circuits or a stamped and formed alternative where low cost is a priority.
Inserting and removing contacts requires no special tools and - once they are in - the contacts are locked in place by dialectric fingers which are formed as part of the housing. Contrasting coloured \'wedgelocks\' (orange and green in the image) are then inserted to secure the contacts in place.
Deutsch DT connectors are suitable for automotive (chassis, cabin, engine bay, drivetrain, interior, aftermarket accessories, caravans, 4X4), marine, harsh environment and heavy equipment applications where reliable connections need to be made quickly, easily, and at a low cost.
