Description
Features
Fits into a standard 5.25" drive bay
6 card reader slots
Supports more than 60 model of memory cards
4 x USB 2.0/2 x USB 3.0/1x eSATA interface
1x microphone port/1x earphone port
Windows 7/8/8.x
Makes the Computer more Sociable
Many peripherals can get in touch due to the multi-port front panel. Over 60 memory card types fit and can be read. Two USB 3.0 ports allow super-fast data transfer and the USB 2.0 and eSATA interfaces ensure flexibility with peripheral devices.

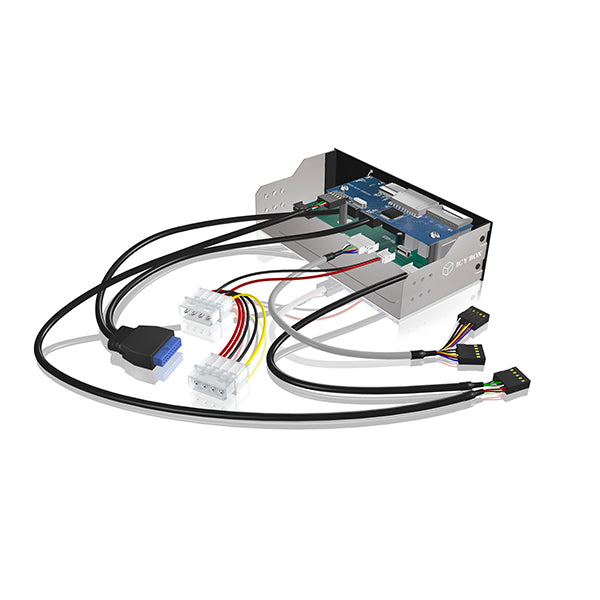

Connection IB-863a:
USB 3.0: Internal to the mainboard
USB 2.0 hub and card reader: Internal to the mainboard via USB 2.0 cable
eSATA: Internal to the mainboard via SATA cable
Audio: Internal to the mainboard via Audio cable
Power: Internal to the system power supply via Big-4Pin Molex
Specifications

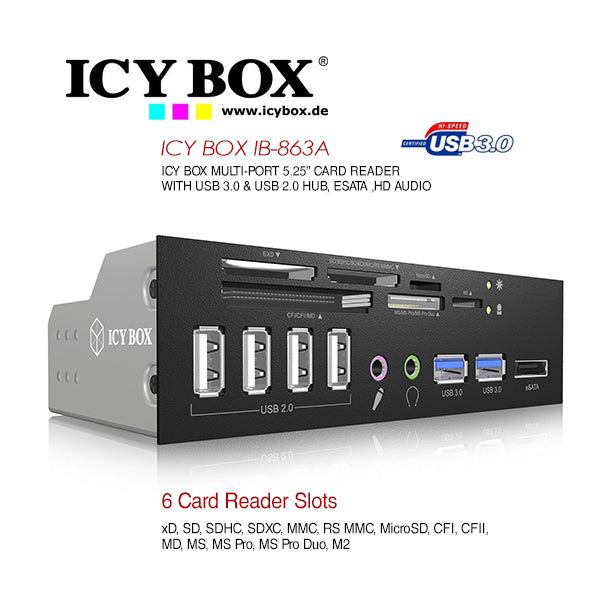

Model: IB-863a
Category: Card Reader with multiport front panel
Colour: Black
Material: Plastic/Aluminium
Required Space: 1 x 5.25"
Memory card support Generic type of cards: xD, SD, SDHC, SDXC, MMC, RS MMC, MicroSD, CFI, CFII, MD, MS, MS Pro, MS Pro Duo, M2

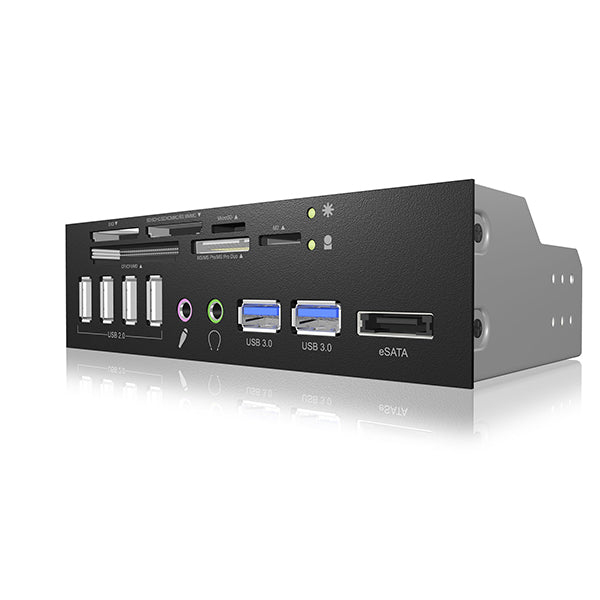

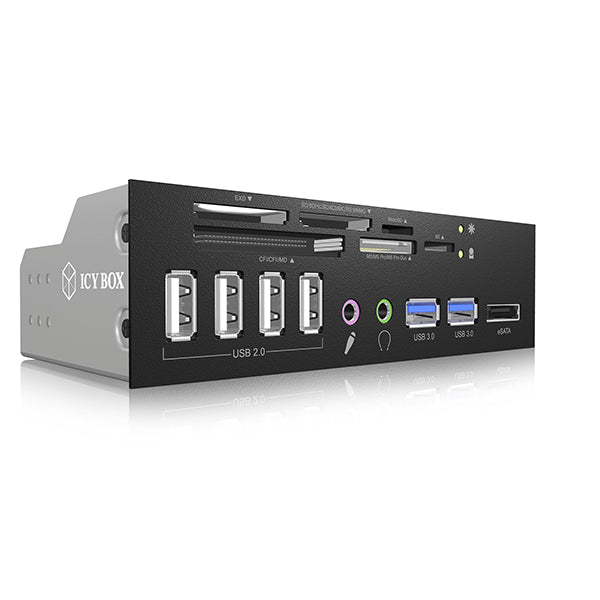

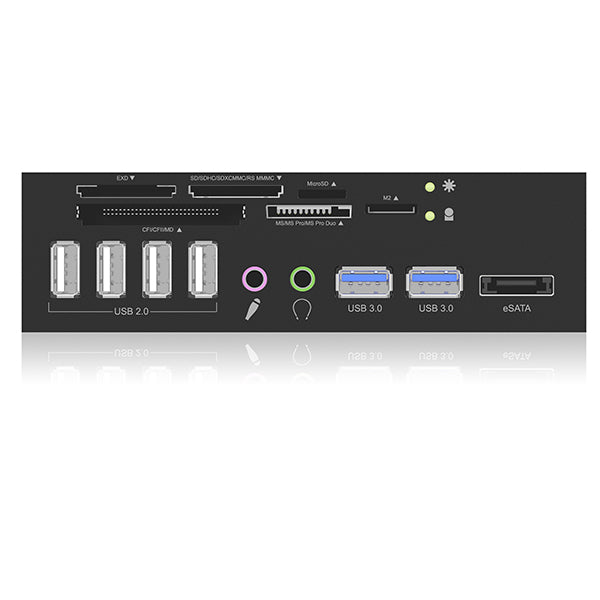

Front port: 4x USB 2.0, 2x USB 3.0, 1x eSATA, 1x microphone, 1x earphone, 6x card reader slot (NOTE: For using the USB 3.0 ports, a motherboard must have at least one USB 3.0 19 pin socket.)
Operating system: Windows 7/8/8.x
Transfer rate:
USB 2.0 up to 480 Mbit/s
USB 3.0 up to 5 Gbit/s
eSATA up to 3 Gbit/s
Power switch: No
LED: Power and access
Power connector: Internal Molex power cable
Product Content
1 x Card Reader
