Description

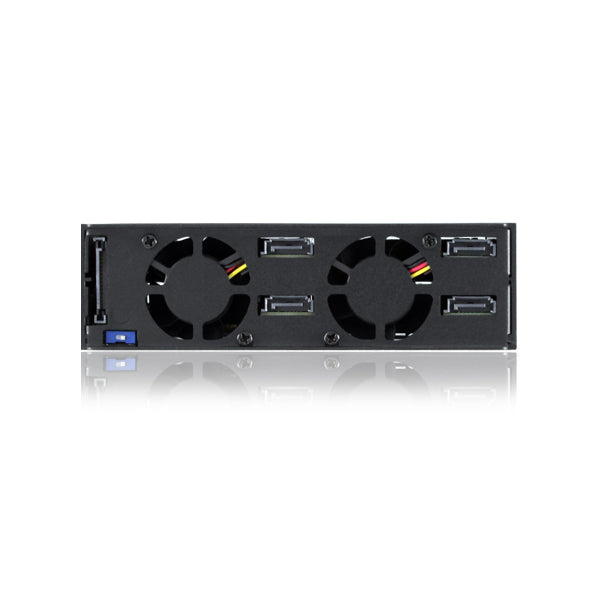

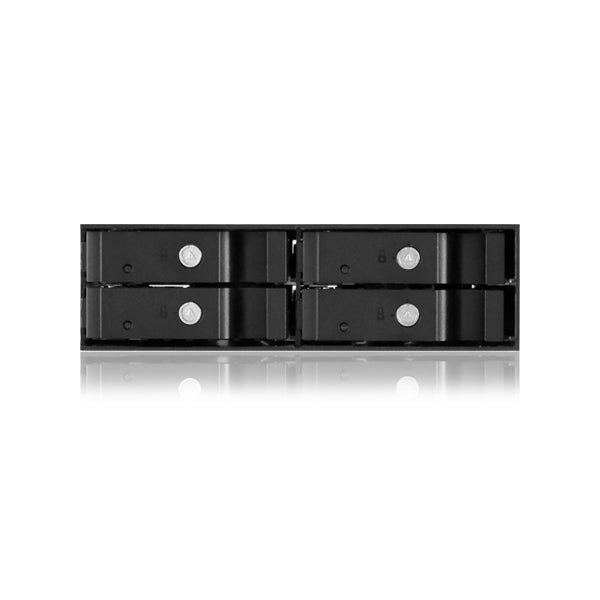

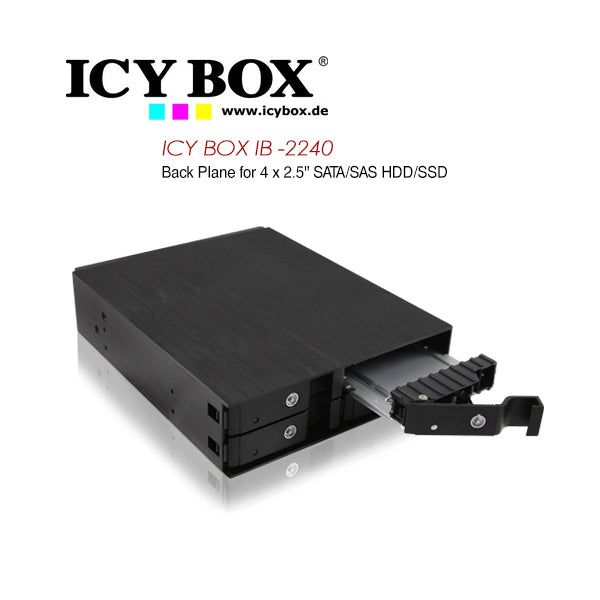

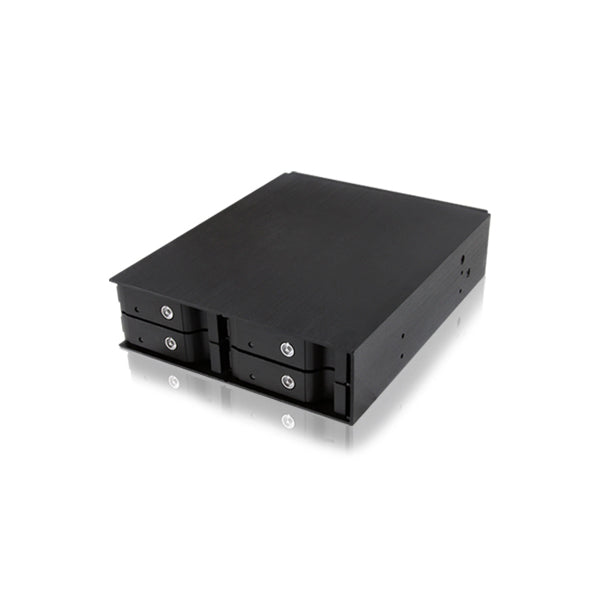

ICY BOX (IB -2240) Back Plane for 4 x 2.5 Inch SATA/SAS HDD/SSD
HDDs in the 2.5 inch form factor are getting more and more popular as their storage capacity is growing. It is only consequent to employ them in servers. That's why ICY BOX offers a backplane that fits into a single 5.25 inch unit and is for four 2.5 inch SAS/SATA HDDs or SSDs. The height of the HDDs may even be 15 mm, for greatest storage capacity.
This ICY BOX works reliably even with huge amounts of data being transferred. That's a great recommendation for the hard duty in RAID systems. Accordingly demanding is the layout of the cooling. While the aluminium casing cools two 40 mm fans work reliably and silently. Everything is as solid and safe as you might know it from the ICY BOX backplanes for the "big ones".
For 4 x 2.5 Inch SATA/SAS HDD/SSD
HDD Height up to 15 mm
Robust industrial design
Full aluminium/metal material
Support SATA III 6 Gbit/s
With Key Lock
Specifications:
Colour: Black
Material: Aluminium
Required space: 1 x 5.25 inch bay
Fan: 2 x 40 x 40 x 20 mm cooling fan
HDD size (inch): 4x2.5 inch
HDD height: 6 - 15 mm
HDD capacity: Unlimited
HDD interface: 4 x 2.5 inch SAS/SATA I/II/II
Host interface: 4 x SATA Data Connector 7Pin
Transfer rate: Up to 6 Gbit/s
Hot Swap: Yes
Plug & Play: Yes
Lock: Yes
Operating system: OS independent
Power connector: 1x 15pin SATA power
LED: Power and HDD Access
Packing content: 1x IB-2240SK, 2x keys, 28x screws, 1x short manual
Gross weight (incl. packing): 0.83 kg
Net weight: 0.70 kg
Dimension of packing box: 197x152x46 mm
Dimension of article: 181x146x42 mm
Package Contents
1 x Back Plane
