Description
For heaviest server duty
These three HDD backplanes are well-proven in extremely hard server duty. Even with highest transfer rates they run very smoothly. That’s why we recommend them for the demanding duty in RAID systems. Accordingly elaborate is the temperature control. The aluminium parts dissipate the heat. The 60-mm fan operates reliably and silently and the operating mode is easily adjusted. If high temperature is detected there are optical and acoustic warning signals. All moving parts are layed out for strongest strain. The trays and their locking mechanism are extremely fitting. They slide without resistance. The aluminium parts are electropolished.
Stress resistant
The IB-56X Series is built for heavy duty. The best available materials were used in this enclosure which makes it the ideal 3.5" HDD solution for demanding environments. for additional security, a lock was added.
Cool & silent
The high quality metal dissipate the created heat by passive convection to the environment. The active convection is done using an 60 mm fan. The big fan swirls slowly which makes it quieter.
Always up to date

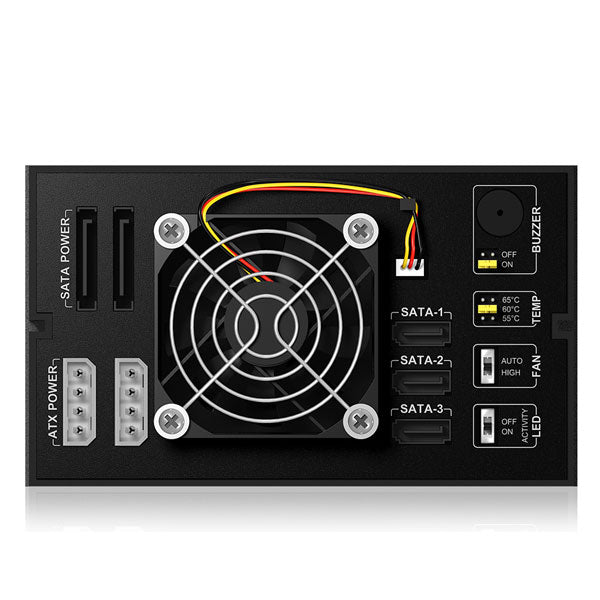

Up to three 3.5" SATA/SAS HDDs find a home in this backplane. Not even SAS hard disks have to stay out in the cold. Optical and auditory signals alert regarding the HDD and fan state. The temperature alarm signal can be set on three possibilities - 55° C, 60° C, 65° C.
Specifications
Model:IB-563SSK
Brand:ICY BOX
Material:Aluminium
Colour:Black
Fan:1x 60x60 mm
HDD size (inch):3,5"
HDD size (cm):8,89 cm
HDD capacity:No limit
HotSwap:Yes
Plug & Play:Yes
HDD interface:3x SAS / SATA I/II/III
Host interface:3x SATA I/II/III
Operating system:Supports Windows & Mac
LED:Power (blue), HDD Access (orange), On / Off, Alarm
Lock:Yes
Alarm:Visual LED and audio alarm (temperature adjustable 55° C, 60° C, 65° C)
Package content
1x IB-563SSK
3x SATA cables
2x Keys
8x Screws
1x Manual
