Description

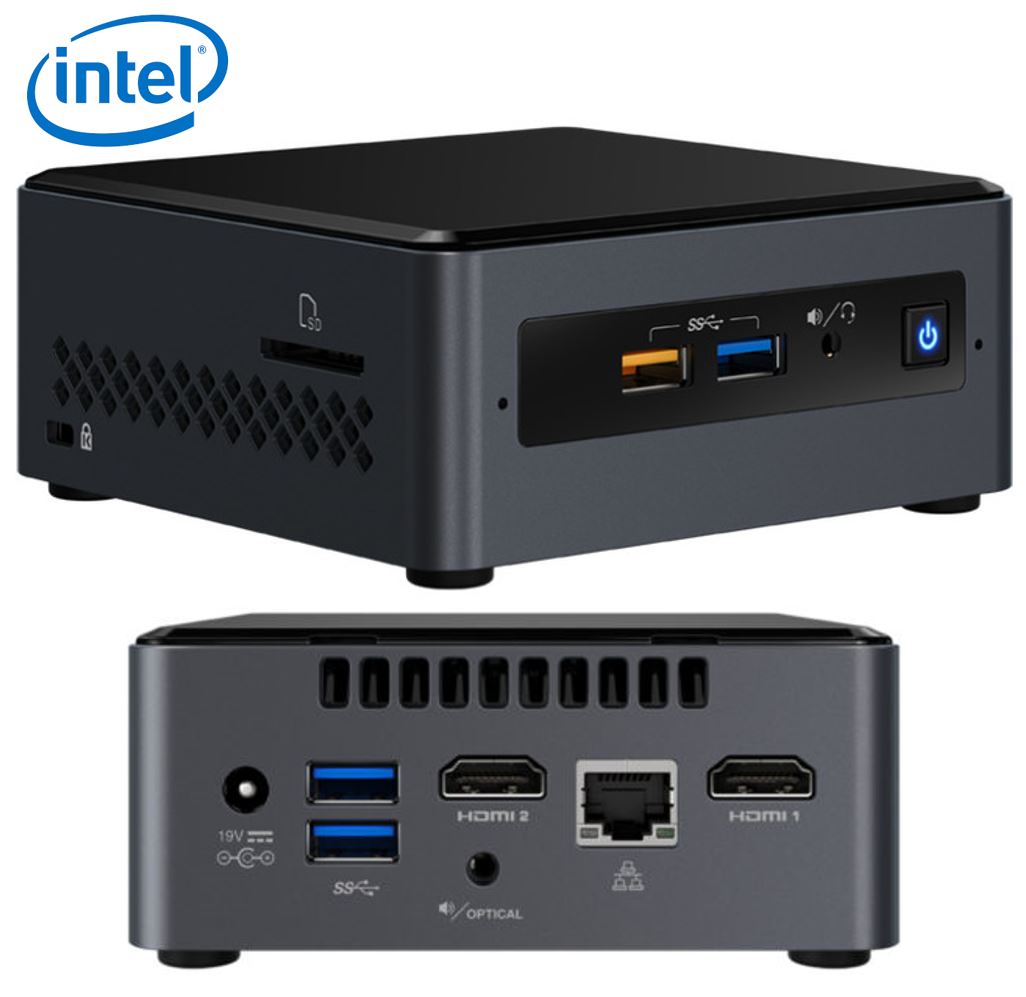

Intel NUC J5005 2.8GHz 2xDDR4 SODIMM 2.5\' HDD/SSD 2xHDMI 2xDisplays GbE LAN WiFi BT 4xUSB3.0 2xUSB2.0 for DS POS no headphone no AC cord no headphone jack Essentials Product Collection Intel?« NUC Kit with Intel?« Pentium?« Processors Code Name Products formerly JUNE CANYON Launch Date Q1\'18 Supported Operating Systems Windows 10 | 64-bit* Board Number NUC7JYB Board Form Factor UCFF (4\' x 4\') Socket Soldered-down BGA Internal Drive Form Factor 2.5\' Drive # of Internal Drives Supported 1 Lithography 14 nm TDP 10 W DC Input Voltage Supported 12-19 VDC Processor Included Intel?« Pentium?« Silver J5005 Processor (4M Cache | up to 2.80 GHz) Intel vPro?« Platform Eligibility ?Çí No Total Cores 4 Total Threads 4 Processor Base Frequency 1.50 GHz Warranty Period 3 yrs Supplemental Information Embedded Options Available No Description Other features: Includes SDXC card slot | dual microphones Product Brief View now Memory & Storage Max Memory Size (dependent on memory type) 8 GB Memory Types DDR4-2400 1.2V SO-DIMM Max # of Memory Channels 2 Max Memory Bandwidth 38.4 GB/s Max # of DIMMs 2 ECC Memory Supported ?Çí No Processor Graphics Integrated Graphics ?Çí Yes Graphics Output 2x HDMI 2.0a # of Displays Supported ?Çí 2 Expansion Options Removable Memory Card Slot SDXC with UHS-I support I/O Specifications # of USB Ports 6 USB Configuration 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers USB Revision 2.0 | 3.0 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total # of SATA Ports 1 Max # of SATA 6.0 Gb/s Ports 1 RAID Configuration N/A Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) Integrated LAN Realtek 8111H-CG Integrated Wireless?Çí Intel?« Wireless-AC 9462 + Bluetooth 5.0 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes
