Description
MK-WS-102-UC

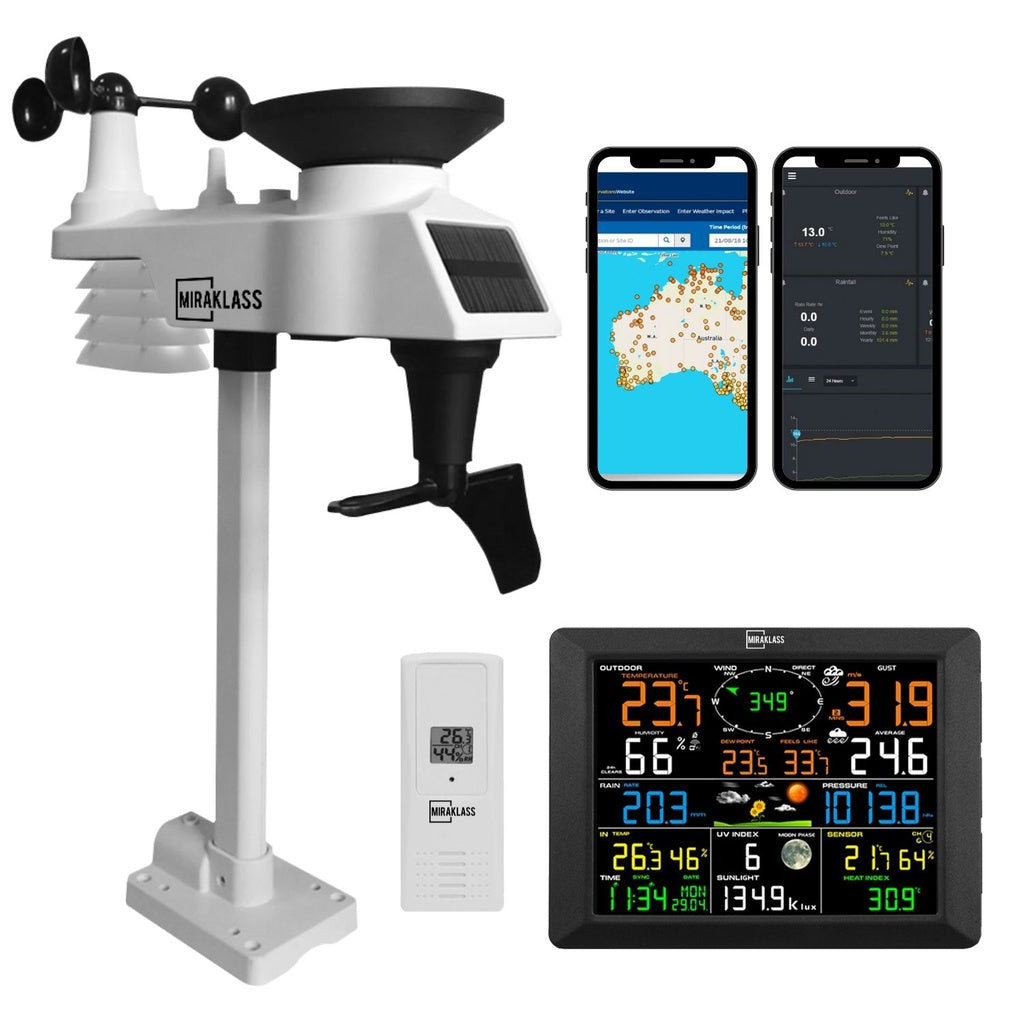

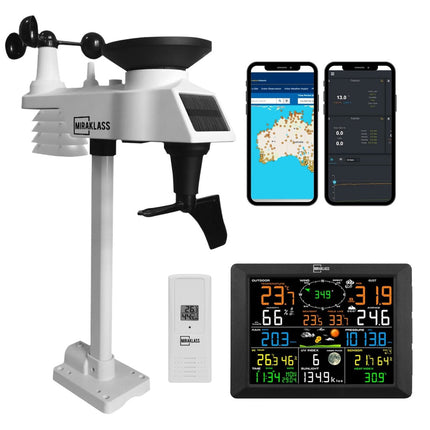

Miraklass Wifi Weather Station
FEATURES
- Home Weather Station: Accurate information and forecast weather conditions at your home and backyard.
- Wi-Fi Capable: Remotely view data on mobile device anytime and anywhere.

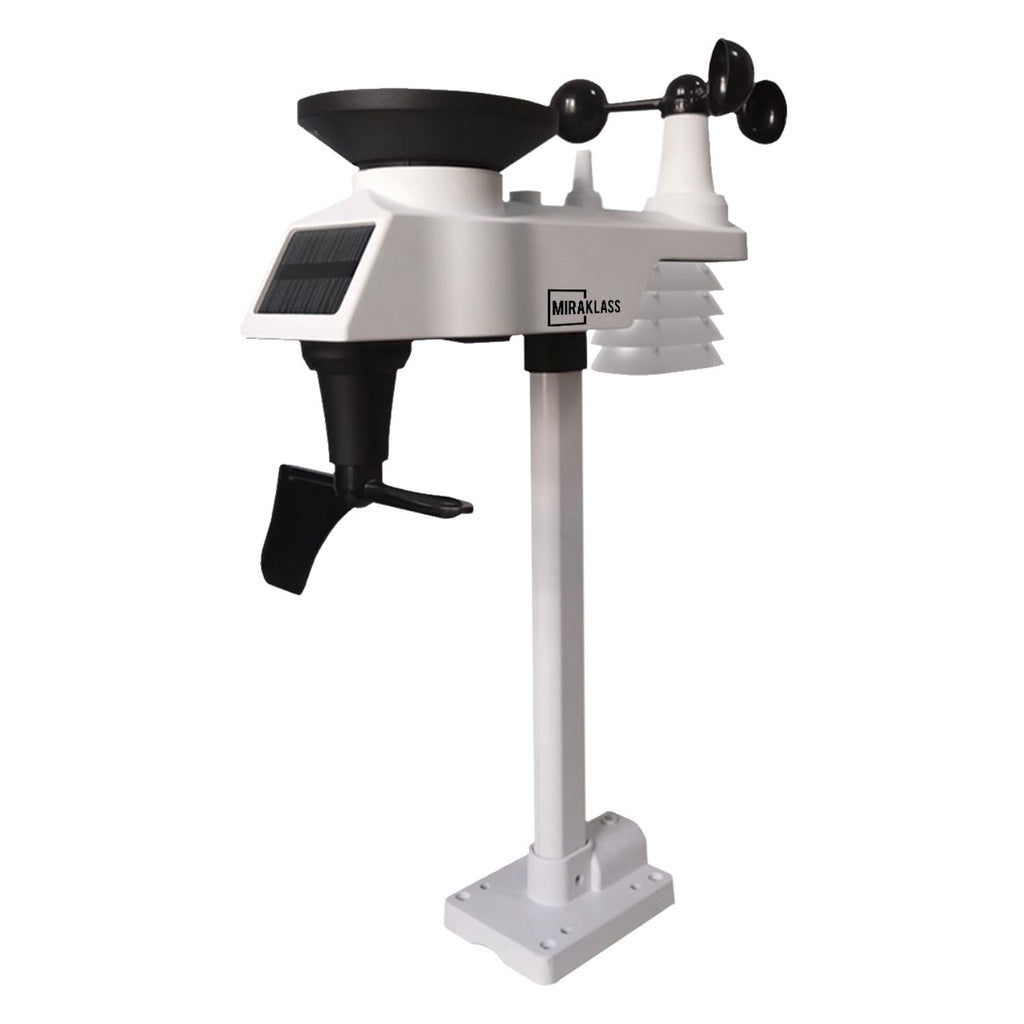

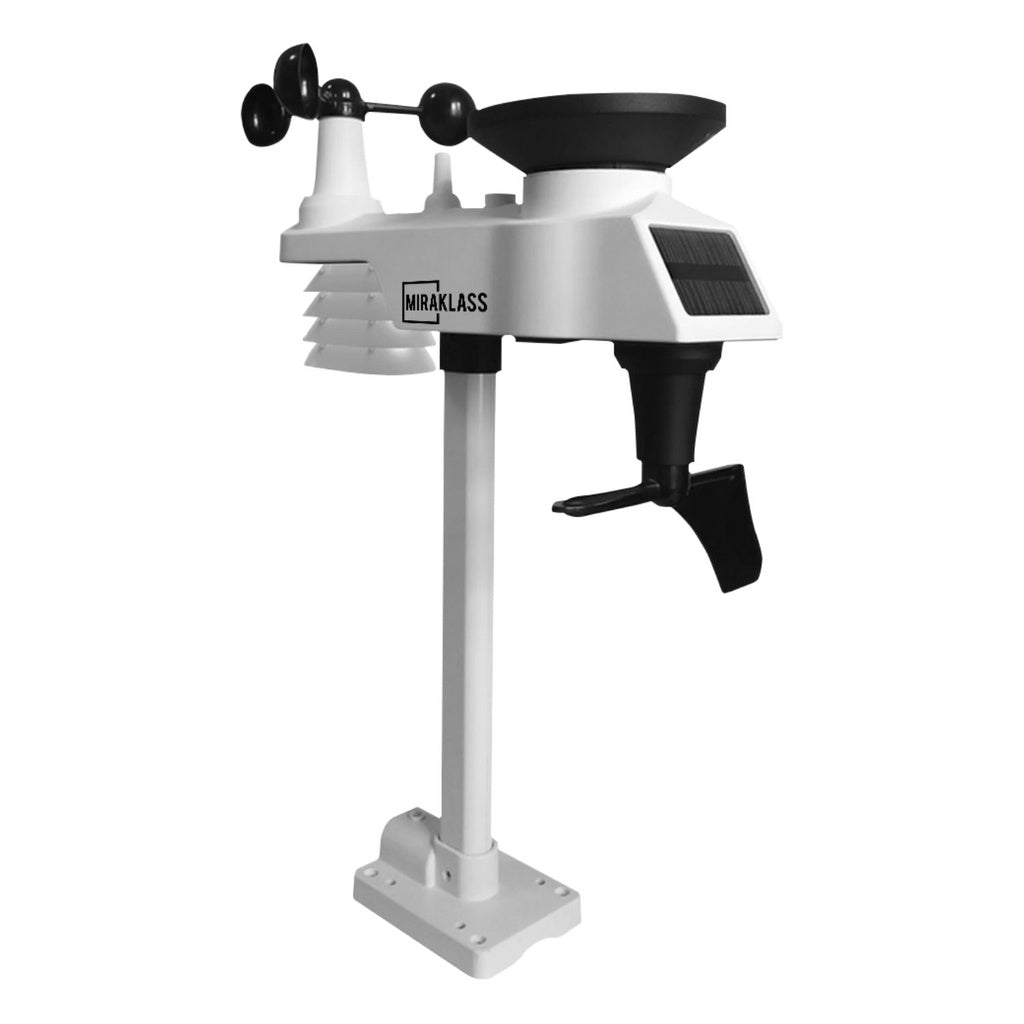

- Wireless Outdoor Sensor: Outdoor temperature, humidity, dew point, wind speed and direction, rainfall, light range, UV and solar collector 7-in-1 integrated sensor

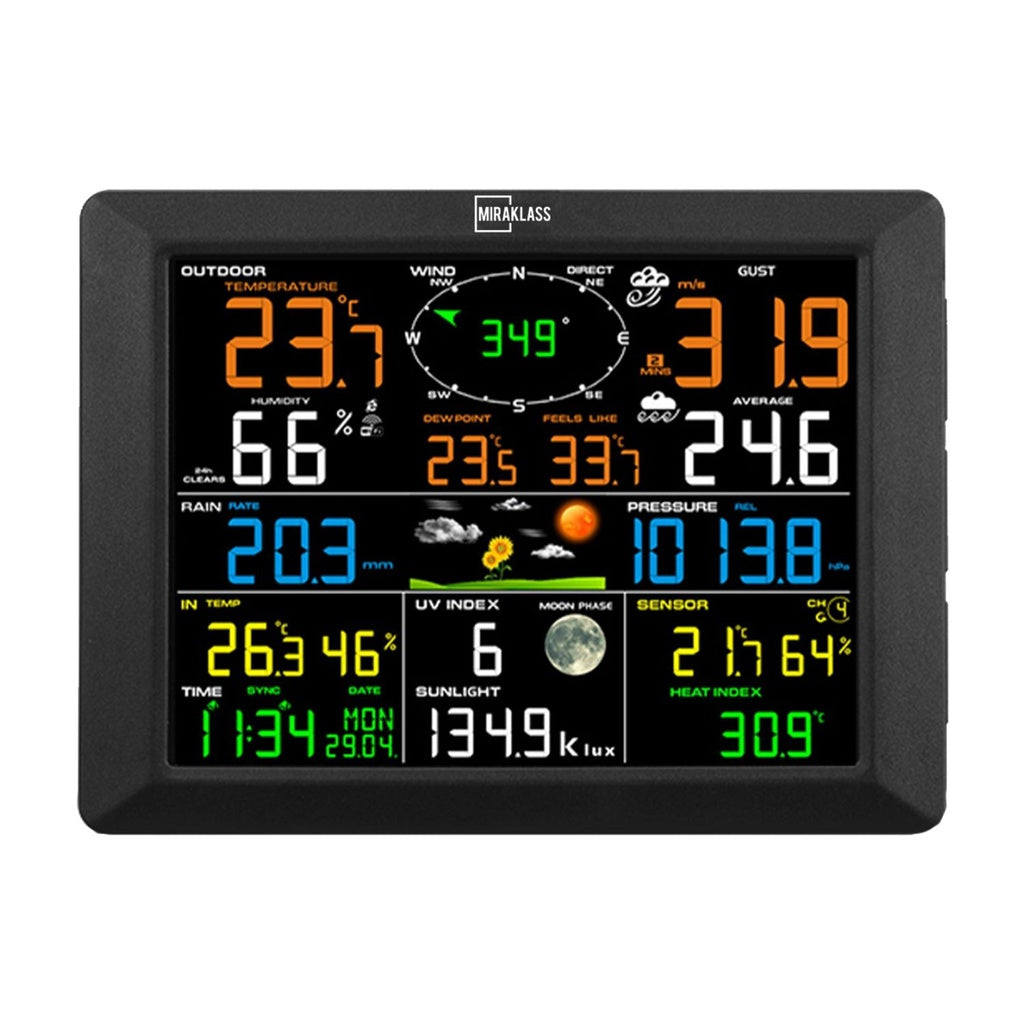

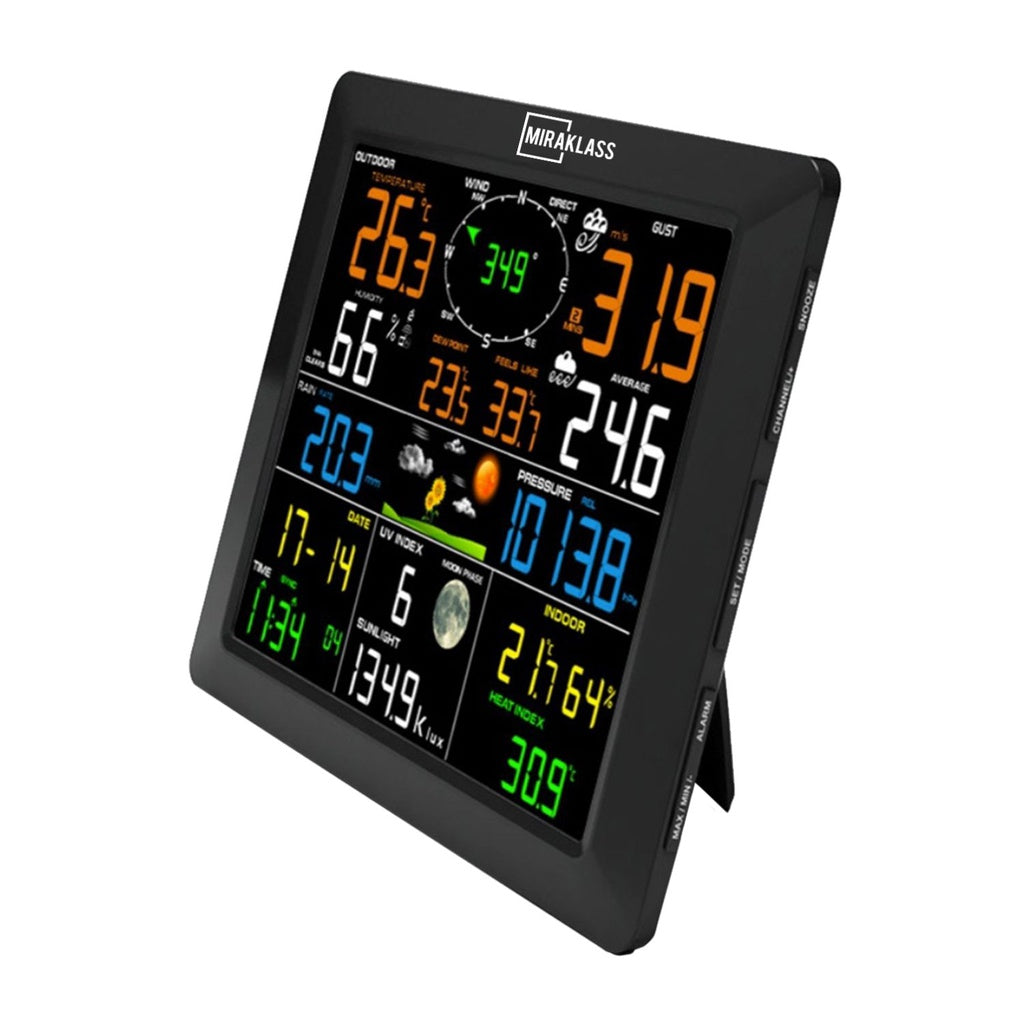

- Color Display LCD Screen: Displays wind speed and direction, dewpoint, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV.

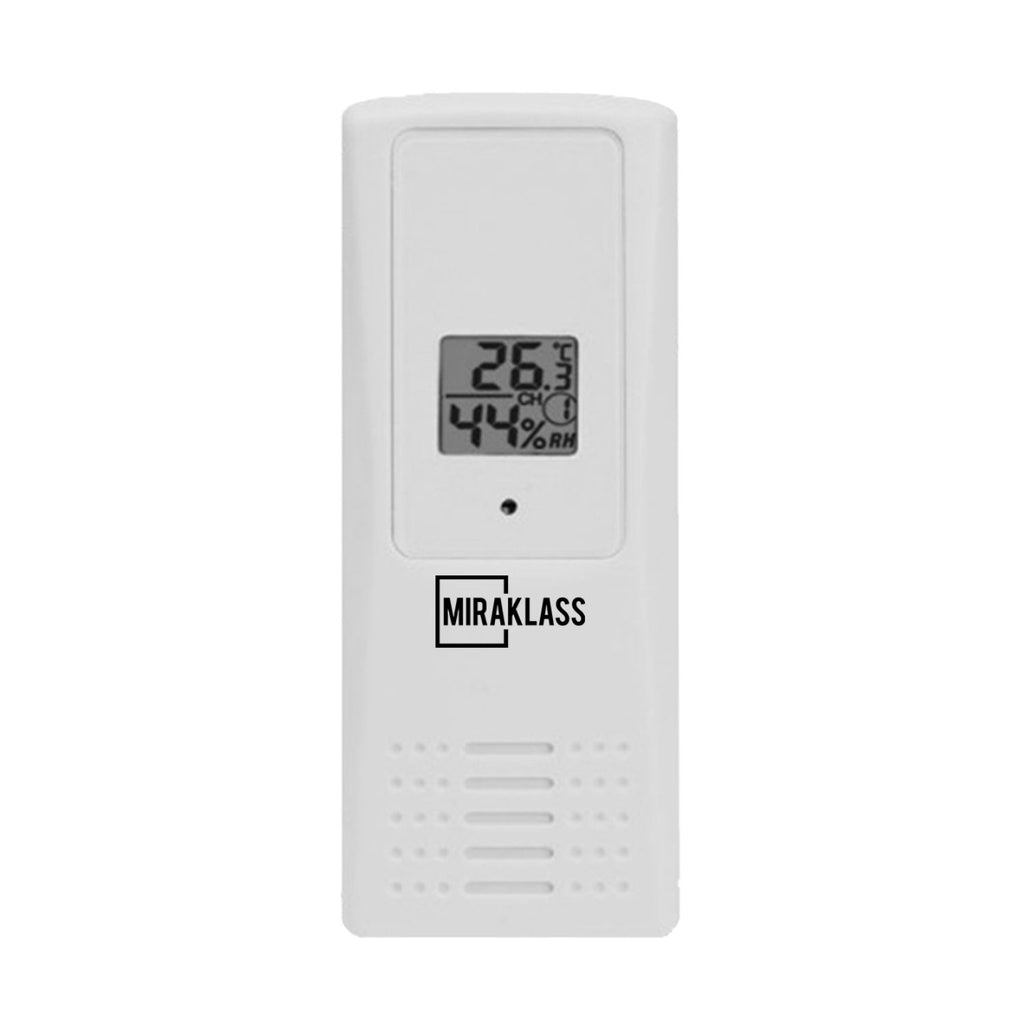

- Indoor Thermo-Hygrometer: Support up to 8 indoor thermo-hygrometer sensors at once for easy monitoring the temperature and humidity at home.
SPECIFICATIONS
WIRELESS SPECIFICATION:
1. Transmission distance in open field: 100m; Frequency: 433 MHz
2. Outdoor Transmitter reporting interval: 16 seconds
3. Thermo-Hydrometer Transmitter reporting interval: 60 seconds
MEASUREMENT SPECIFICATION:
1. Temperature range: -40 to 60 °C
2. Humidity range: 10 to 99%
3. Rain volume display range: 0 to 9999mm
4. UV index range: 1 to 15+
5. Sunlight: 0 to 200klux
6. Wind speed: 0 to 50 m/s
7. Barometric pressure: 300 to 1100 hpa
POWER CONSUMPTION:
1. Display console: 5V AU power adapter (included), 3 x AAA batteries (not included)
2. Outdoor Transmitter: Solar panel (built in), 3 x AA batteries (not included)
3. Thermo-Hydrometer Transmitter: 2 x AAA batteries (not included)
PACKAGE INCLUDES:

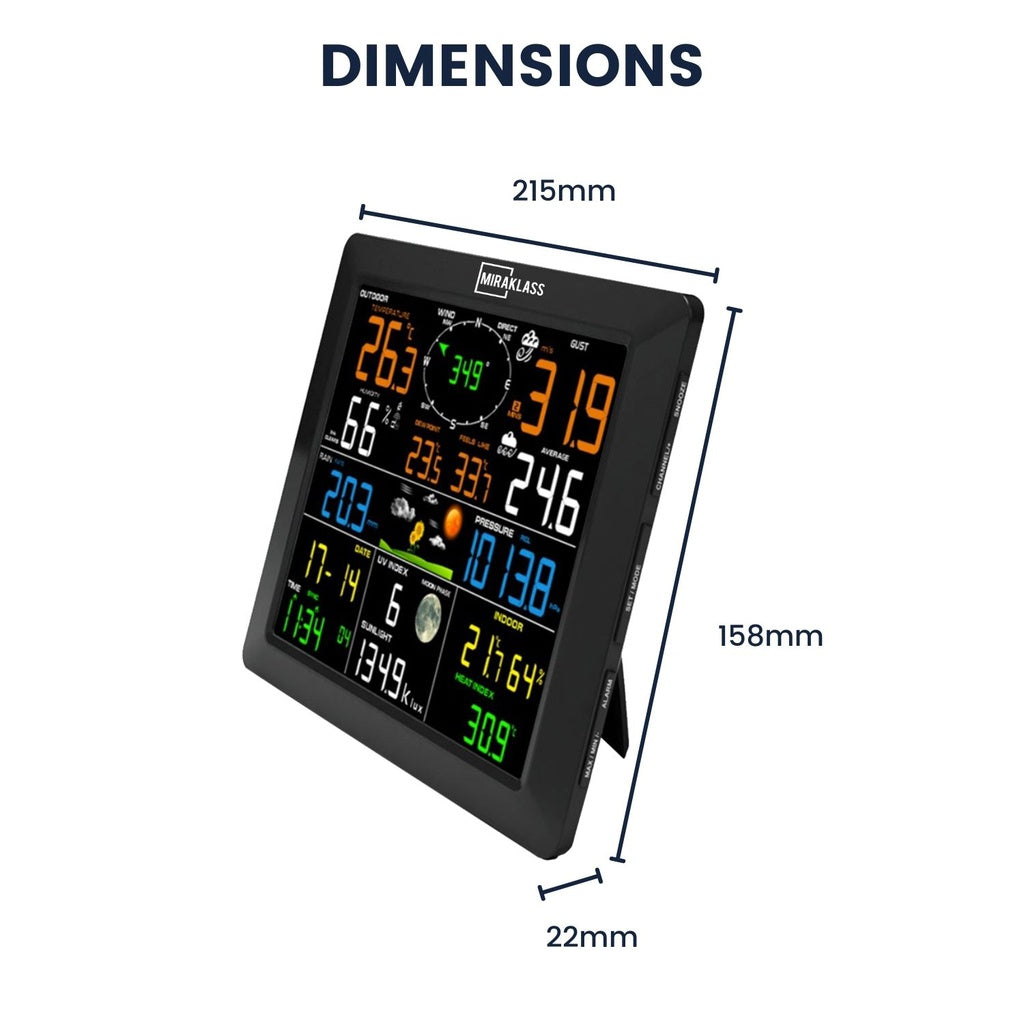

1. Display console 215 x 22 x 158mm

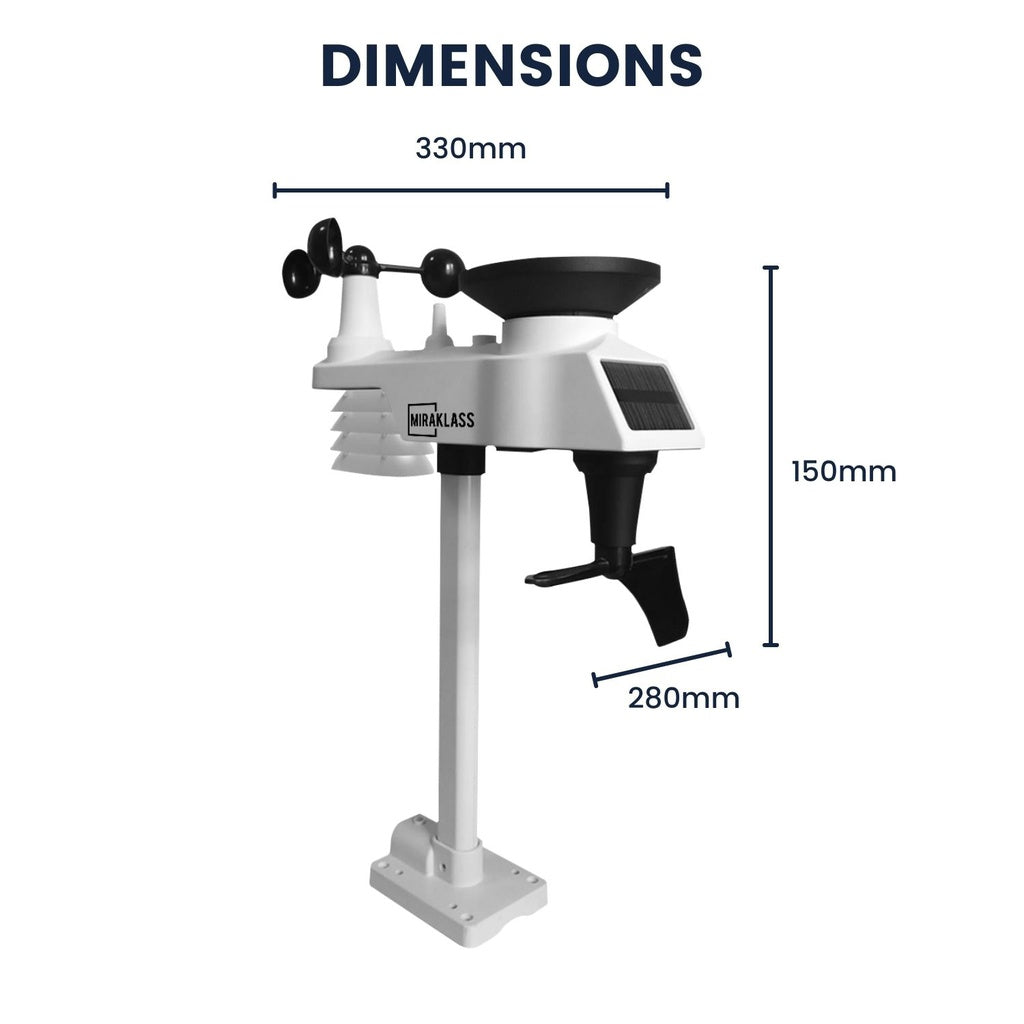

2. Outdoor Transmitter 330 x 150 x 280mm

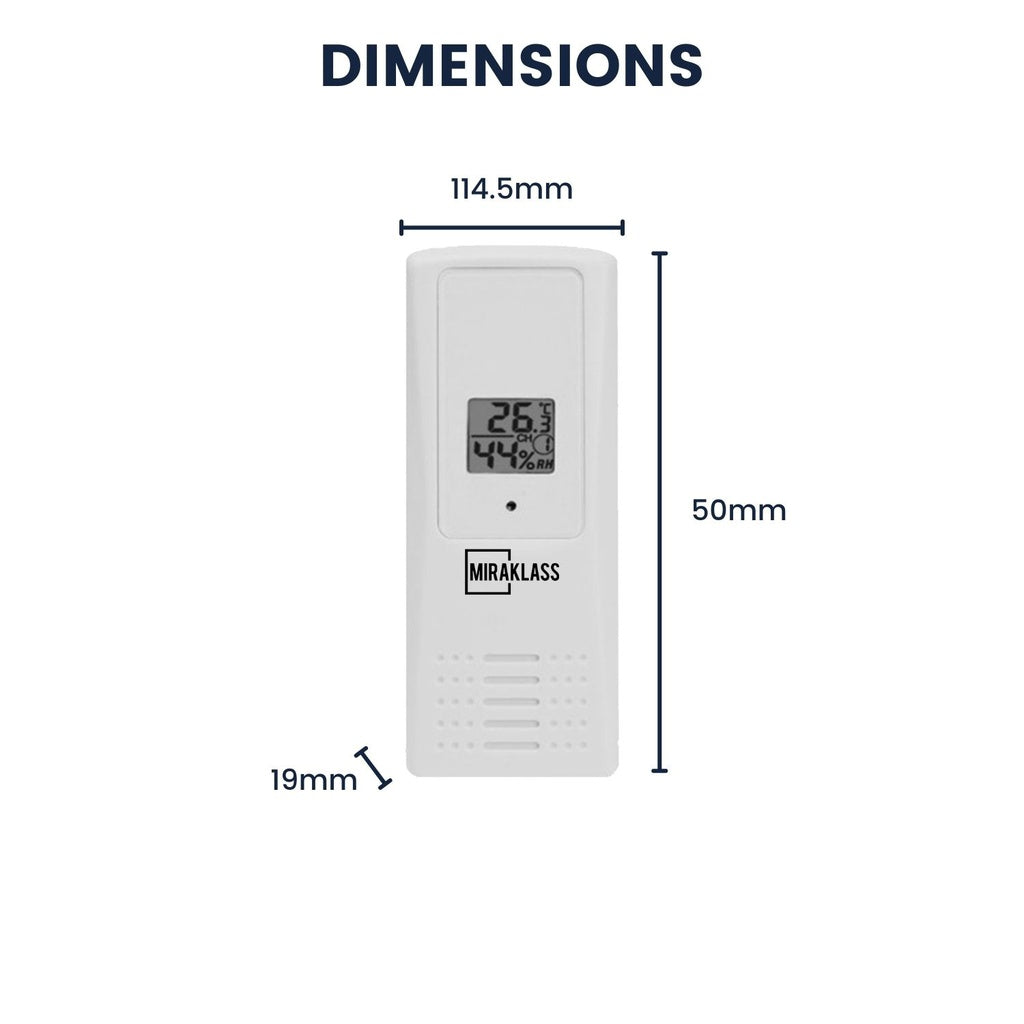

3. Thermo-Hydrometer Transmitter 114.5 x 50.0 x 19mm
4. Foot Mounting 84x 152 x 216mm
5. Mounting Bracket Backplate 76 x 102 x 38mm
6. Mounting Pole 76 x 76 x 25mm
7. Pole Mounting nuts (M3)
8. Pole Mounting nuts (M5)
9. Tapping Screws
10. User Manual
PACKAGE DETAILS:
Package Weight: 2.8KG
Package Dimensions: 32 x 47 x 56 cm
