Description
PRODUCT FEATURE:

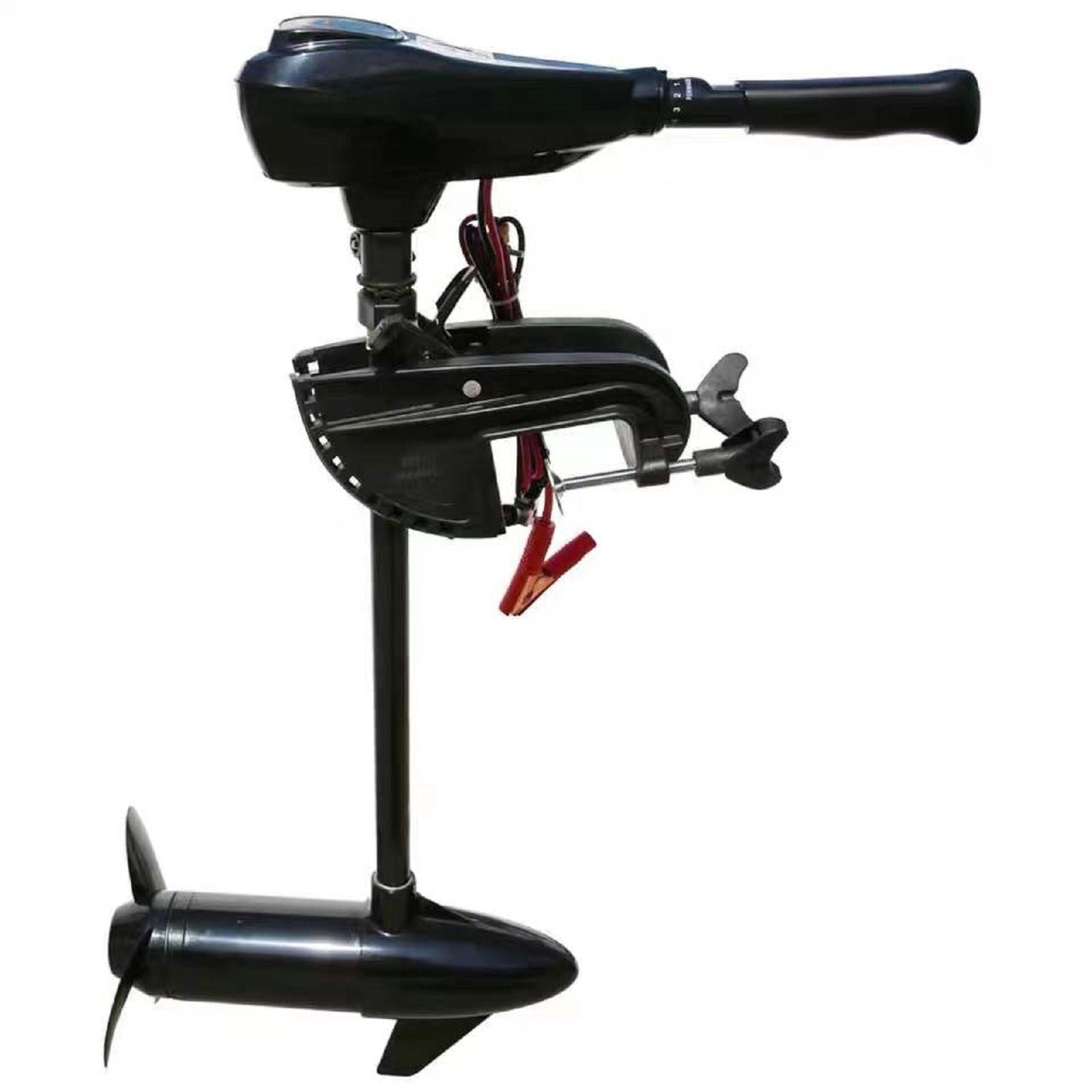

EFFICIENT POWER:40lb Thrust - this 12v electric trolling motor provides excellent power and efficiency for any boater. The high quality build allows the motor to run all day long without overheating, or making noise to spook fish.
FEATURES:This motor features a 30 inch shaft, a 5 LED battery meter, a 6 inch telescoping tiller handle, and 3 blade propeller. The mount angle, height, and direction can all be adjusted and locked into place when needed.
SPEED:8 speed motor, 5 forward & 3 reverse. Motor is designed for trolling, with a top speed of 3.5mph, exact top speed depends on boat shape, weight, water, wind, & other factors. 3 blade prop provides great low end torque to get the boat moving.
BATTERY: 46lb motor requires one (1) 12V Lead-Acid Deep Cycle or Lithium Deep Cycle battery (not included), 50ah recommended. Motor also includes a 40amp circuit breaker, recommended at all times to protect from battery voltage surges. Max Amp Draw:40A
QUALITY & RELIABILITY: Newport Vessels trolling motors are made with high quality materials to withstand fresh water and salt water. We stand behind every product we make with industry leading customer service and a 1 year warranty.
SPECIFICATION:
Max Thrust:40lb (0.6HP Equivalent)
Total Weight:7.2Kg
Speed Levels: 8 speed levels, 5 step forward & 3 step reverse
Shaft: 74cm
Max Amp: 32 Amps
Max Battery Voltage:12V
Prop Speed: 1700RPM at full speed
Rated Power: 380W
Handle/Tilt: Up to 28cm includes Extension & 90 Degree Tilt
Maximum Speed: 6km/h
Sound Level: 50db
Battery Meter: 5 LED Meter Display
Stock Propeller: 3 Blade (21.3cm)
Package Size: 110*52*17cm
Max Load: 250KG
Note:
1. Use higher capacity battery for longer running time. For example: 12V, 100AH Battery. Under rated power can run up to 3 hrs.
2. Battery is not included.
3. When Changing speed, do not change too fast, has to be one by one.
