Description
Technical Specifications

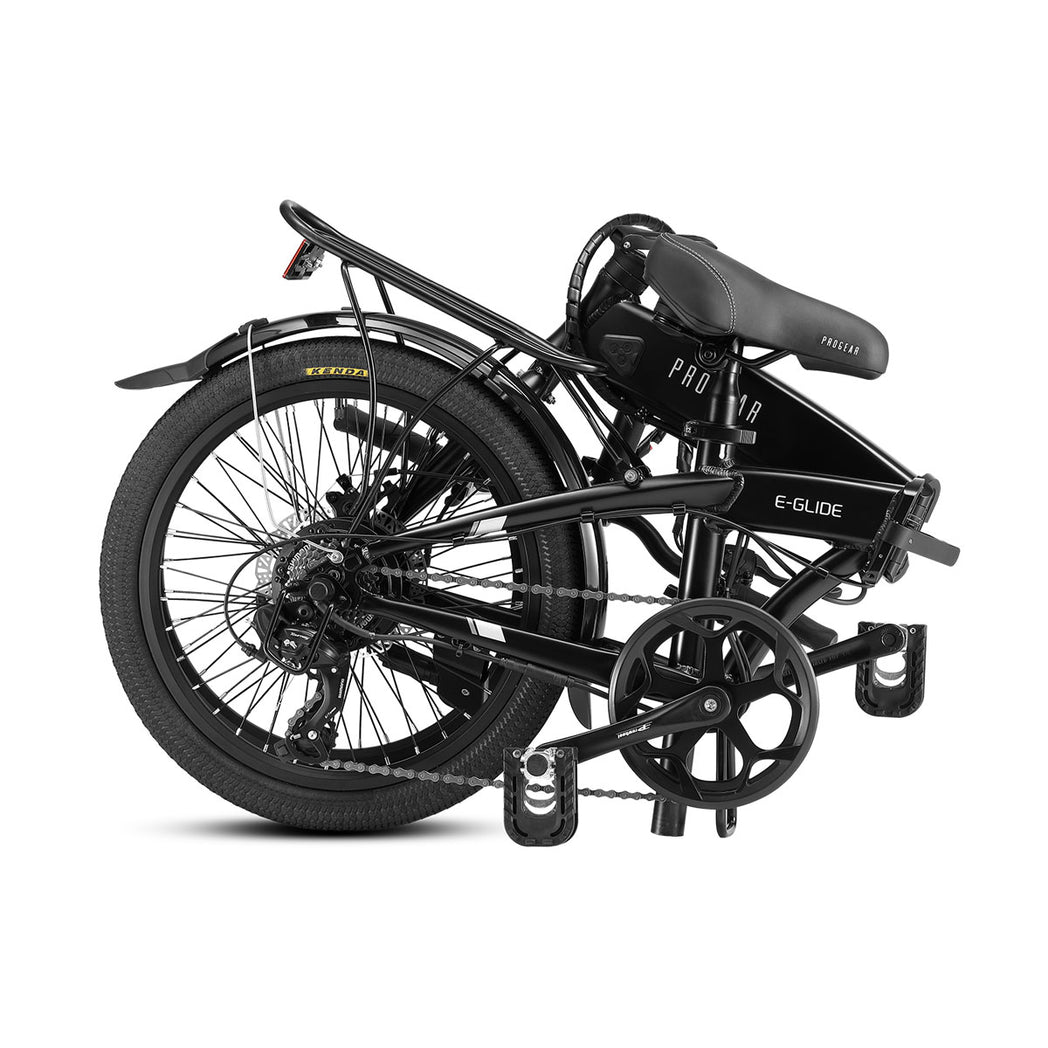

Frame: 20" Alloy Folding Frame
Fork: 20: Steel Fork
Headset: Threaded ?1-1/8"
Handlebar: Alloy Width 580MM, 30mm Rise
Grip: L:125mm
Crank set: 48T, 170mm Crank
Bottom bracket: BB68 * 126mm Axle
Pedal: 9/16" Plastic
Chain: 1/2" 108L
Freewheel: 7sp, 14-28T

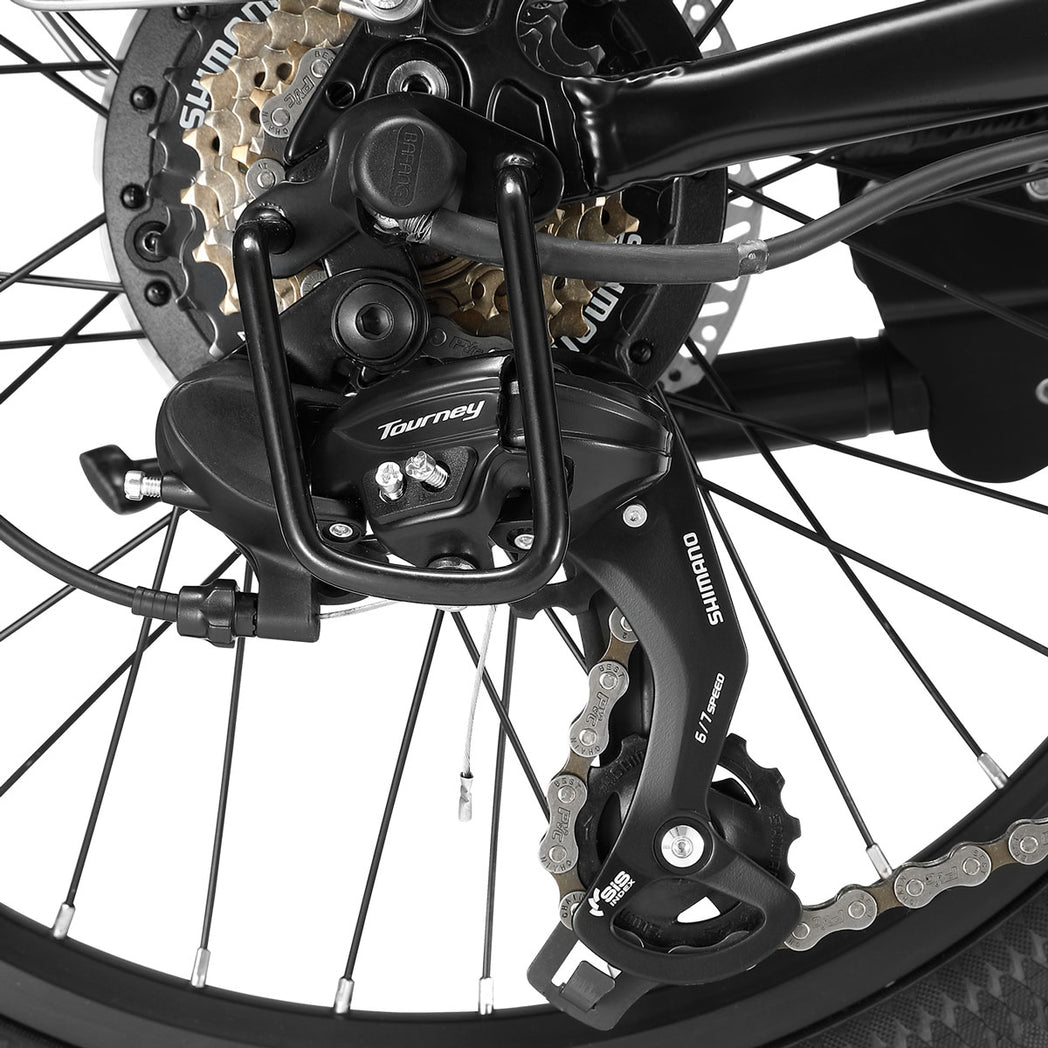

Rear derailleur: Shimano Tourney TY300D 7SP

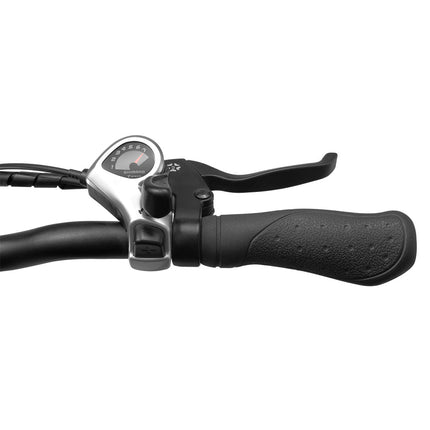

Shifter lever: Shimano Tourney SL-TX50-7R, 7-SPEED
Brake front: Mechanical Disc Brake, 160mm Rotor
Brake rear: Mechanical Disc Brake, 160mm Rotor
Front hub: 36H*100*108 with Quick Release
Rim: 20" H:20mm
Spoke: 13G
Tyre: 20" x 1.95
Seatpost: ?33.9mm 500mm
Electrical Components
Motor: EverDrive� Electric Motor 250W 25KM/H- Complies to EN15194
Sensor: Double hall, cable length:150MM

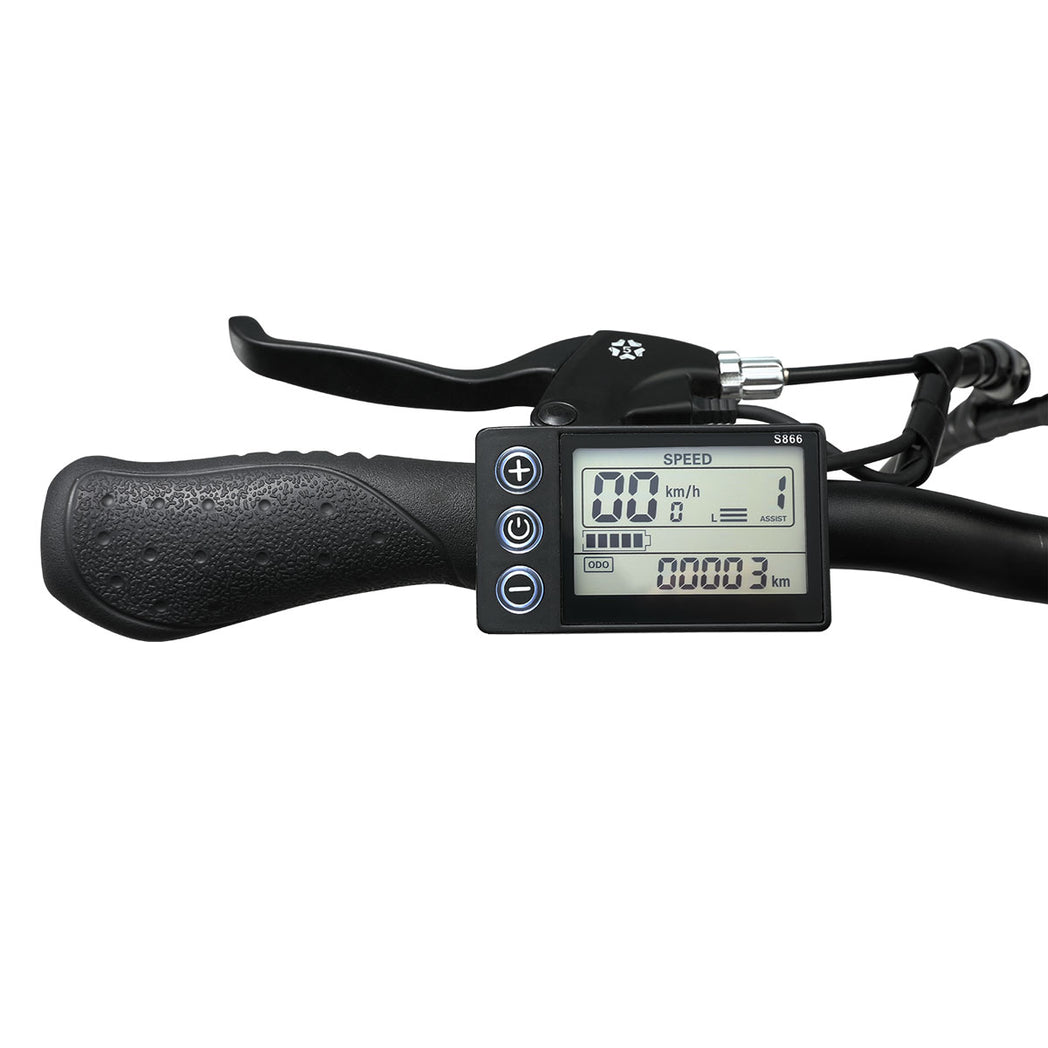

Display: EverDrive S8666 Display
Controller: 36V*14A*250W
Battery: EverDrive� Integrated 36v / 7.8AH
Charger: 42V 2A 50/60HZ AU
