Description
Technical Specifications
Frame Sizes: Sizes 53cm

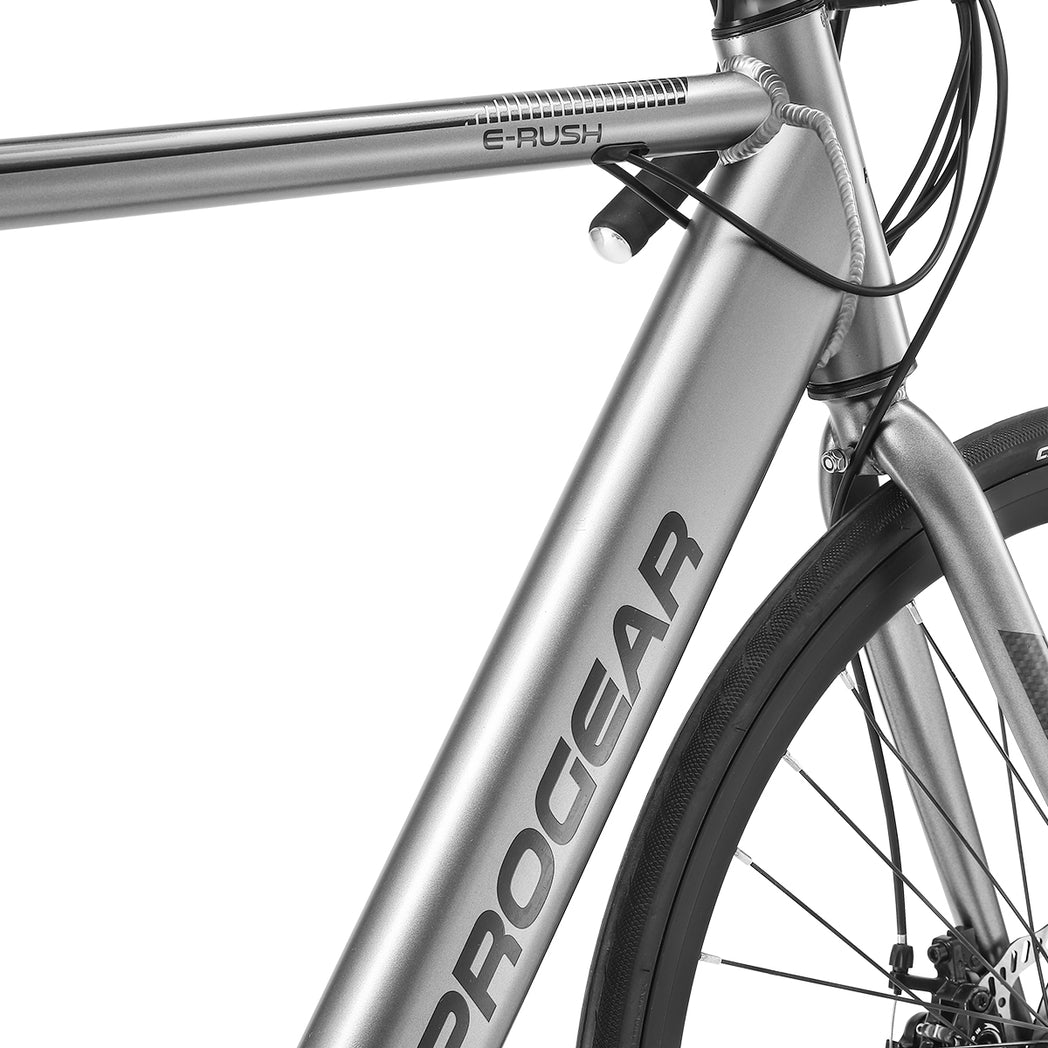

Frame: 6061 Alloy 700C
Fork: 700c Steel Fork
Handlebar: Drop Bars W:440mm 25.4mm
Stem: 80mm angle +-7
Seatpost: ?27.2 L:350mm
Seat Clamp: Quick Release
Saddle: Black Saddle w/ Steel Rails
Pedals: 9/16?Alloy

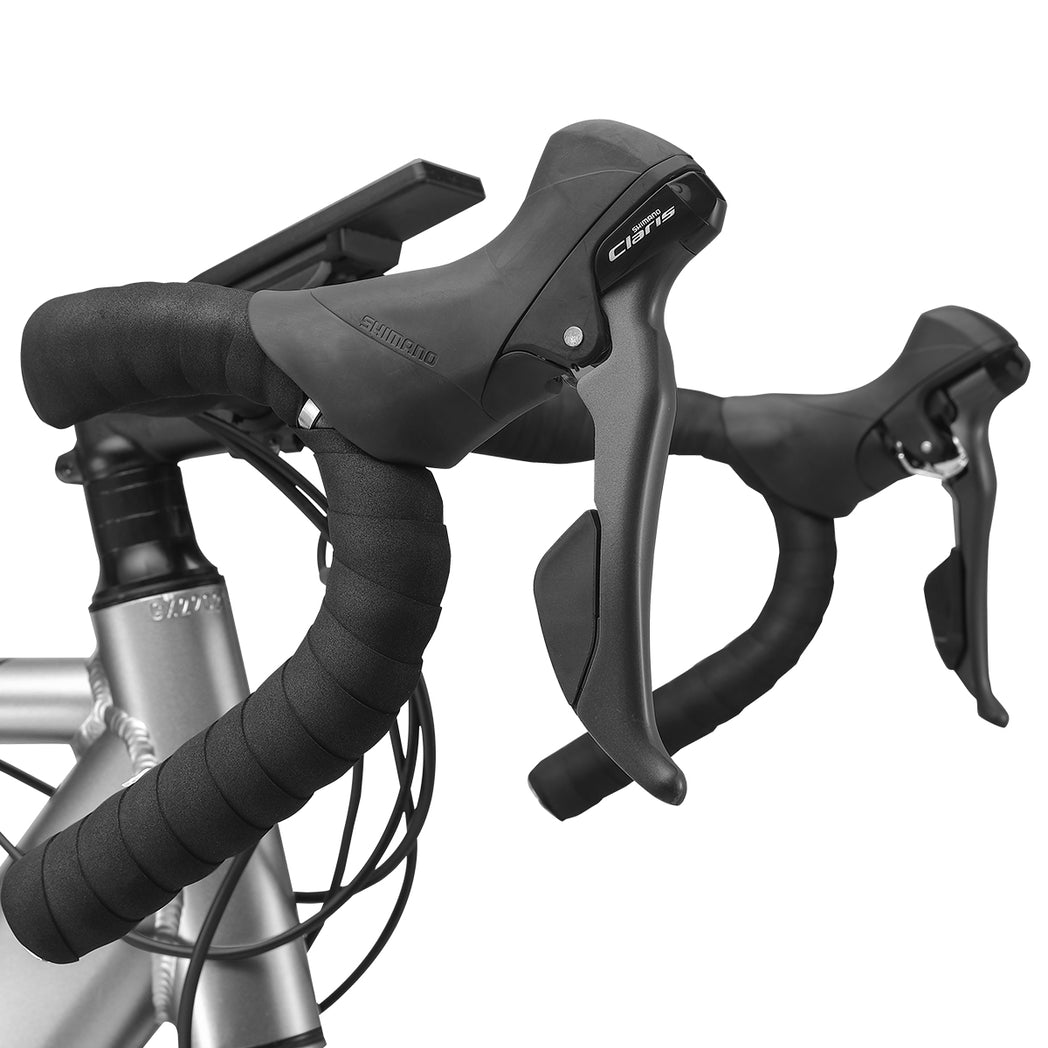

Gear Shifters: Shimano Claris, ST-R2000
Front Derailleur: Shimano Claris, FD-R2000

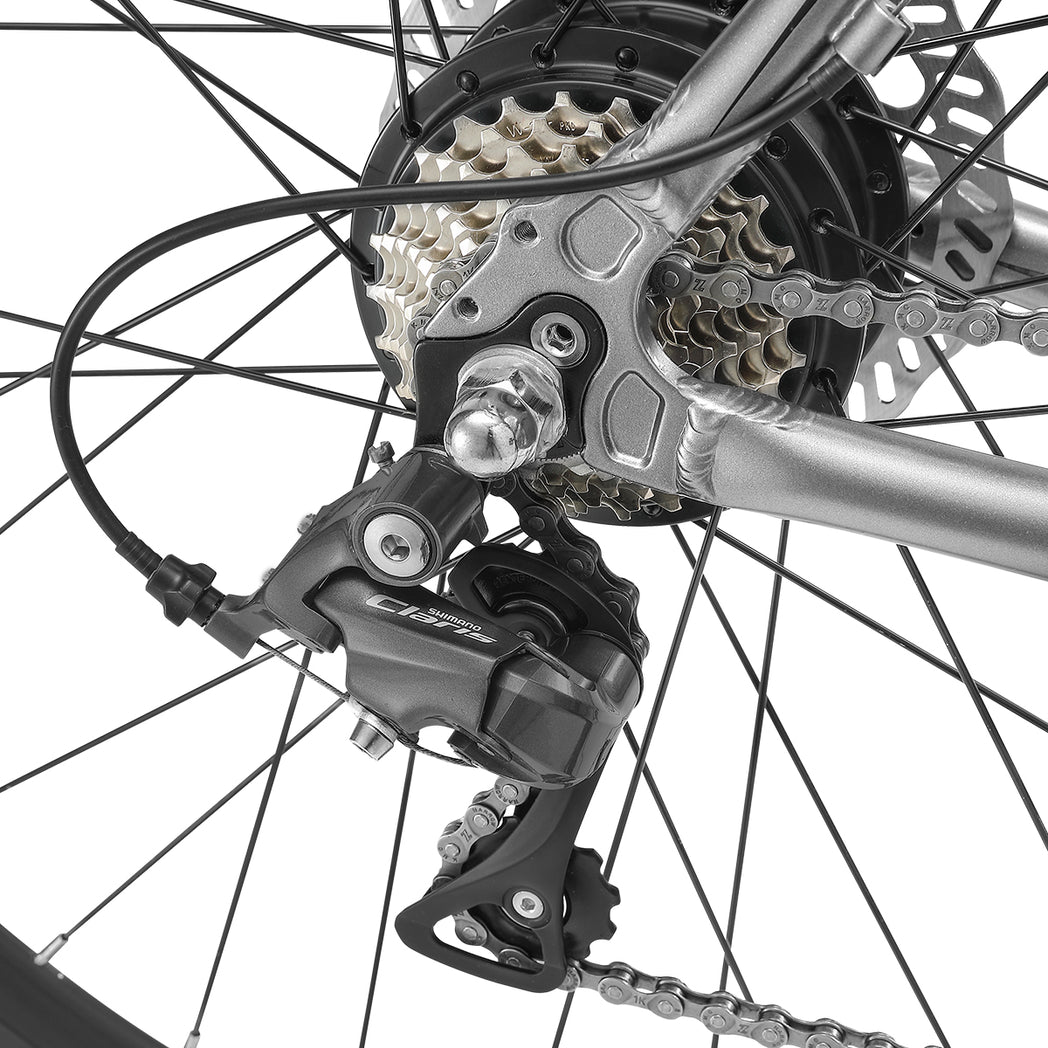

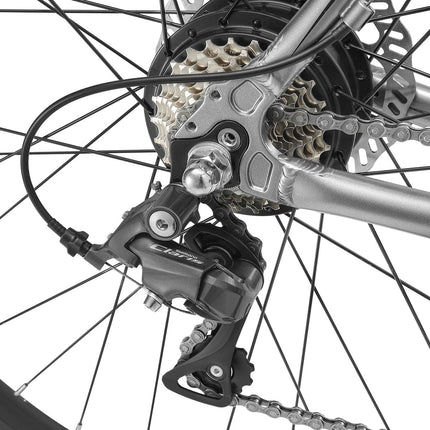

Rear Derailleur: Shimano Clairs, RD-R2000, 8-SPEED
Front Brakes: Mechanical Disc Brake, 160mm rotor
Rear Brakes: Mechanical Disc Brake, 160mm rotor
Brake Levers: Integrated with Shift Lever
Freewheel: Shimano CS-HG50 8-SPEED 2-13-15-17-19-21-23-25T
Chainwheel: 34T/52T
Crank left: Crank 170cm
Crank right: Crank 170cm
Chain: 1/2" 110L
Chainguard: Integrated
Bottom Bracket: BB68*126mm
Headset: 28.6 Threadless Headset
Front Hub: 36H*100*108,w/quick release

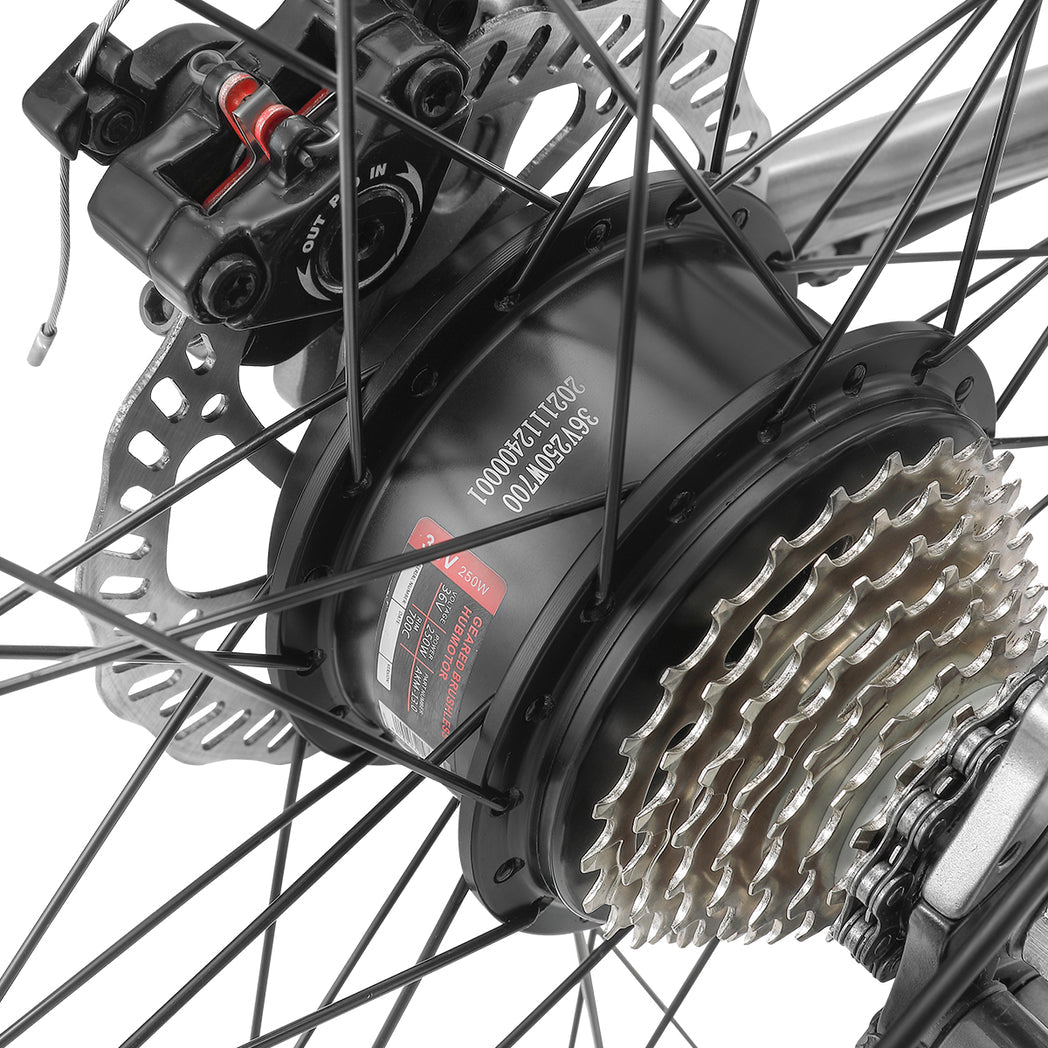

Rear Hub: Everdrive 36V*250W speed 25KM/H
Spokes: 13G Stainless Steel
Tyre : 700*28C
Tube: 700*28C
Rim: 700C*1.5*13G*36H, ,Height:30mm
Bell: Included
Electrical Components
Battery: 36V 8.7AH

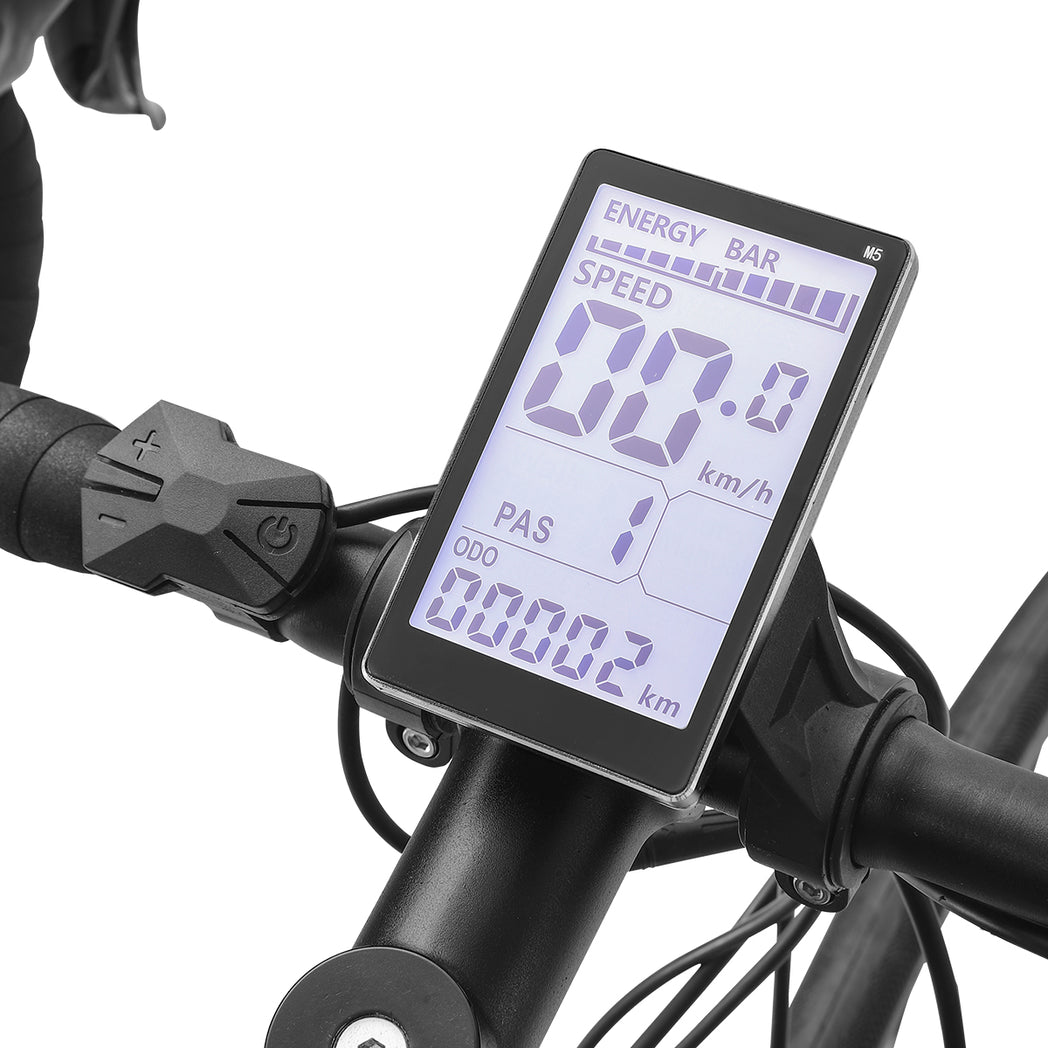

Display: Everdrive M5 display
Sensor: Dual hall
Charger: 42V-2A/100-240VDC
Motor: Everdrive 36V*250W speed 25KM/H complies with EN15194
Controller: 36V,13A?36V 250W motor, 5S communication
