Description

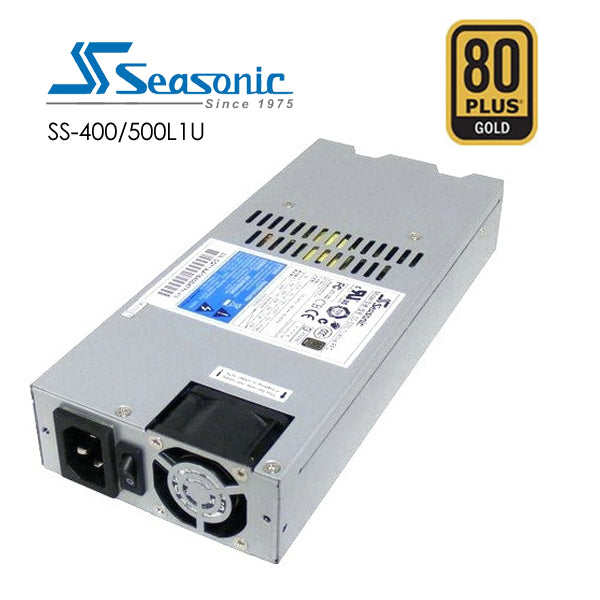

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC
Features:
Specification compliance: Intel EPS 12V
DC to DC converter design
High efficiency and reliability
Low THD
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
100% hi-pot test
100% burn in, high temperature cycled on/off
DC Outputs:
Model: SS-400L1U Active PFC
DC Outputs:
|
+3.3V
|
+5V
|
+12V(Combined)
|
-12V
|
+5Vsb
|
|
20A
|
20A
|
32A
|
0.3A
|
2.5A
|
|
80W*
|
384W
|
3.6W
|
12.5W
|
(Remarks: * Combined +3.3VDC & +5V DC maximum power)
Total Power: 400W
Input Type: Full range
Electrical Specifications:
Input frequency: 47/63 Hz
Inrush current, cold start: 100A max.
Efficiency, at normal input voltage: > 87%
Line regulation: +/-1% typical
Load regulation: +/-5% typical
Cross regulation: +/-5% typical
Ripple / noise: 1%
MTBF, full load: >100K hours (Excluding the DC fan)
Power Factor Correction: Active PFC 99% typical
Certifications:
Satety: CUL, UV, CB
EMC: CE, Fcc, C-Tick
Specifications:
Dimension: L235 x W100 x H40mm
Connectors: Customized modular cables
Package contents:
1x SeaSonic 400W Active PFC F3 1U PSU (SS-400L1U)
