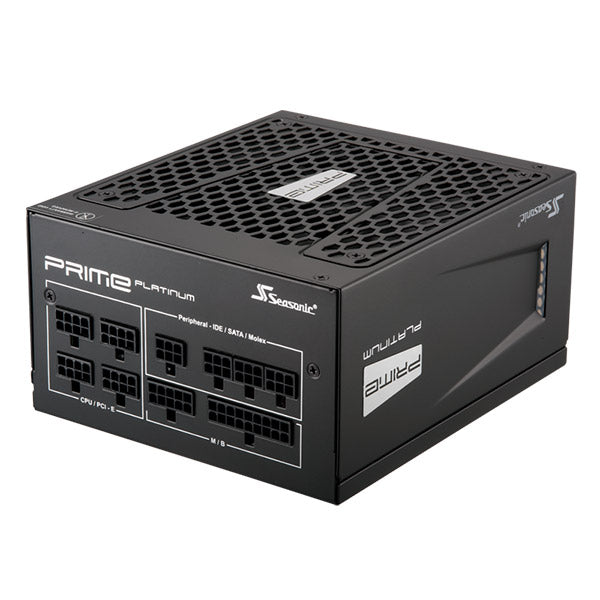

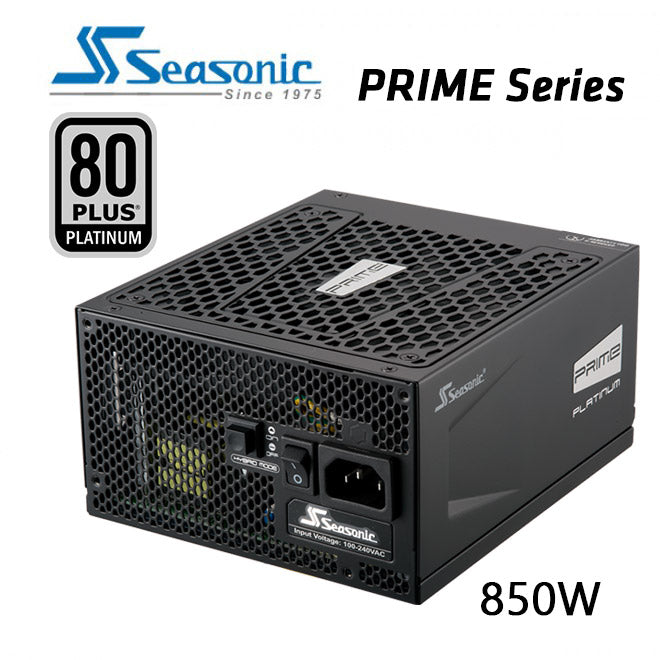

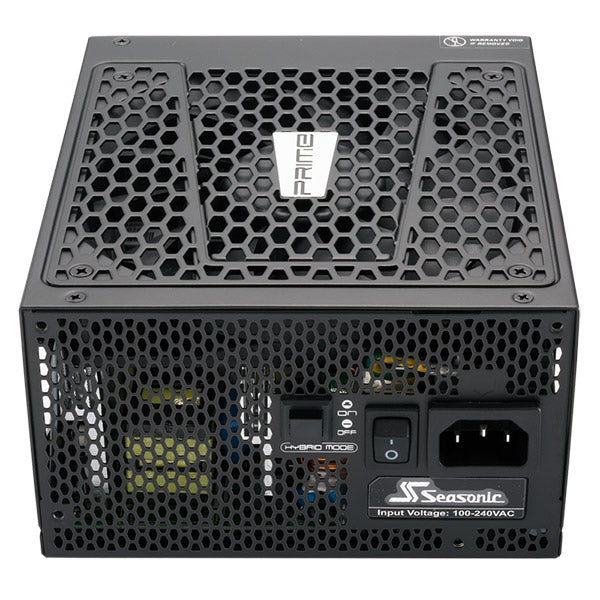

SeaSonic 850W PRIME Platinum PX-850 PSU (SSR-850PD) PX-850 (One Seasonic )

Description

The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.

  • 80 PLUS® Platinum certified
  • Micro Tolerance Load Regulation (0.5 %)
  • Cable-free Connection Design
  • Premium Hybrid Fan Control - Fanless until 40 % load
  • Multi-GPU setup
  • Gold plated connectors
  • 12 years warranty

Specifications

Technical Specifications
80PLUS® Platinum
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 11 - 5.5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 70 A 0.3 A 2.5 A
100 W 840 W 3.6 W 12.5 W
Total continuous power 850 W
Product form

The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the... Read more

Out of stock

$591.95$436.99 Excl. GST

      Description

      The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.

      • 80 PLUS® Platinum certified
      • Micro Tolerance Load Regulation (0.5 %)
      • Cable-free Connection Design
      • Premium Hybrid Fan Control - Fanless until 40 % load
      • Multi-GPU setup
      • Gold plated connectors
      • 12 years warranty

      Specifications

      Technical Specifications
      80PLUS® Platinum
      Cybenetics Efficiency Level TBA
      Cybenetics Noise Level TBA
      Form Factor Intel ATX 12 V
      Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)
      Fan Information Fan Size 135 mm
      Fan Control Premium Hybrid Fan Control
      Fan Bearing Fluid Dynamic Bearing
      Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
      Cable Information Modularity Fully Modular
      Cable type Flat black cables
      Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
      MTBF @ 25 °C, excl. fan 150,000 hours
      AC Input Full Range
      Protection OPP, OVP, UVP, OCP, OTP, SCP
      Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
      Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
      Warranty 12 Years
      Power Output
      AC Input Voltage: 100 V - 240 V
      Current: 11 - 5.5 A
      Frequency: 50 Hz - 60 Hz
      DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
      Maximum Power 20 A 20 A 70 A 0.3 A 2.5 A
      100 W 840 W 3.6 W 12.5 W
      Total continuous power 850 W
