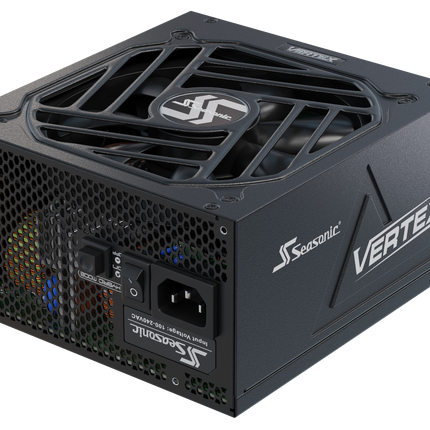

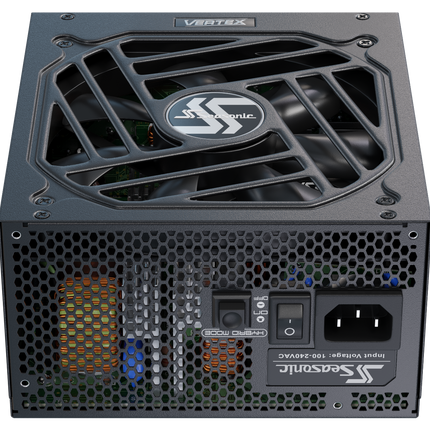

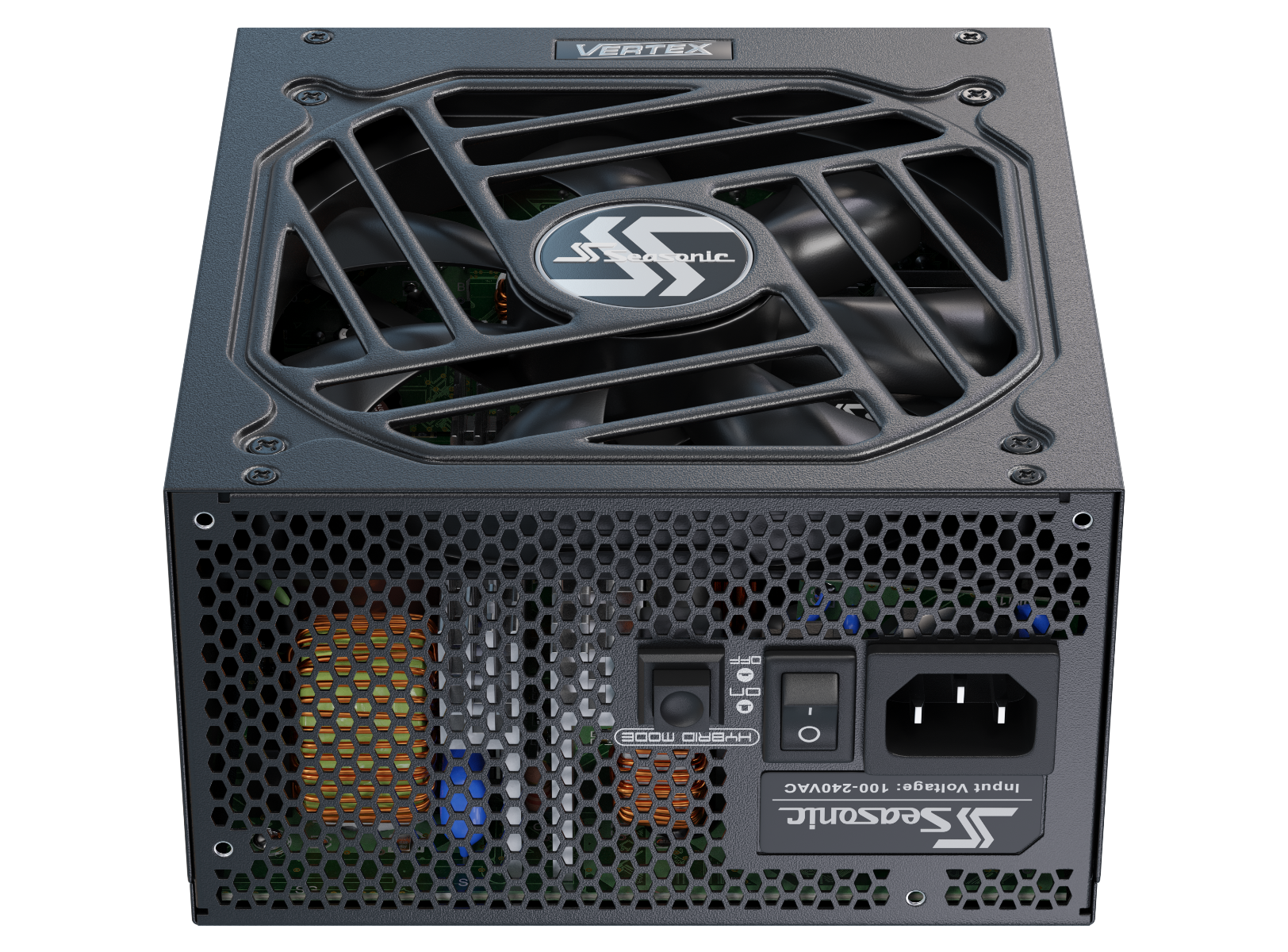

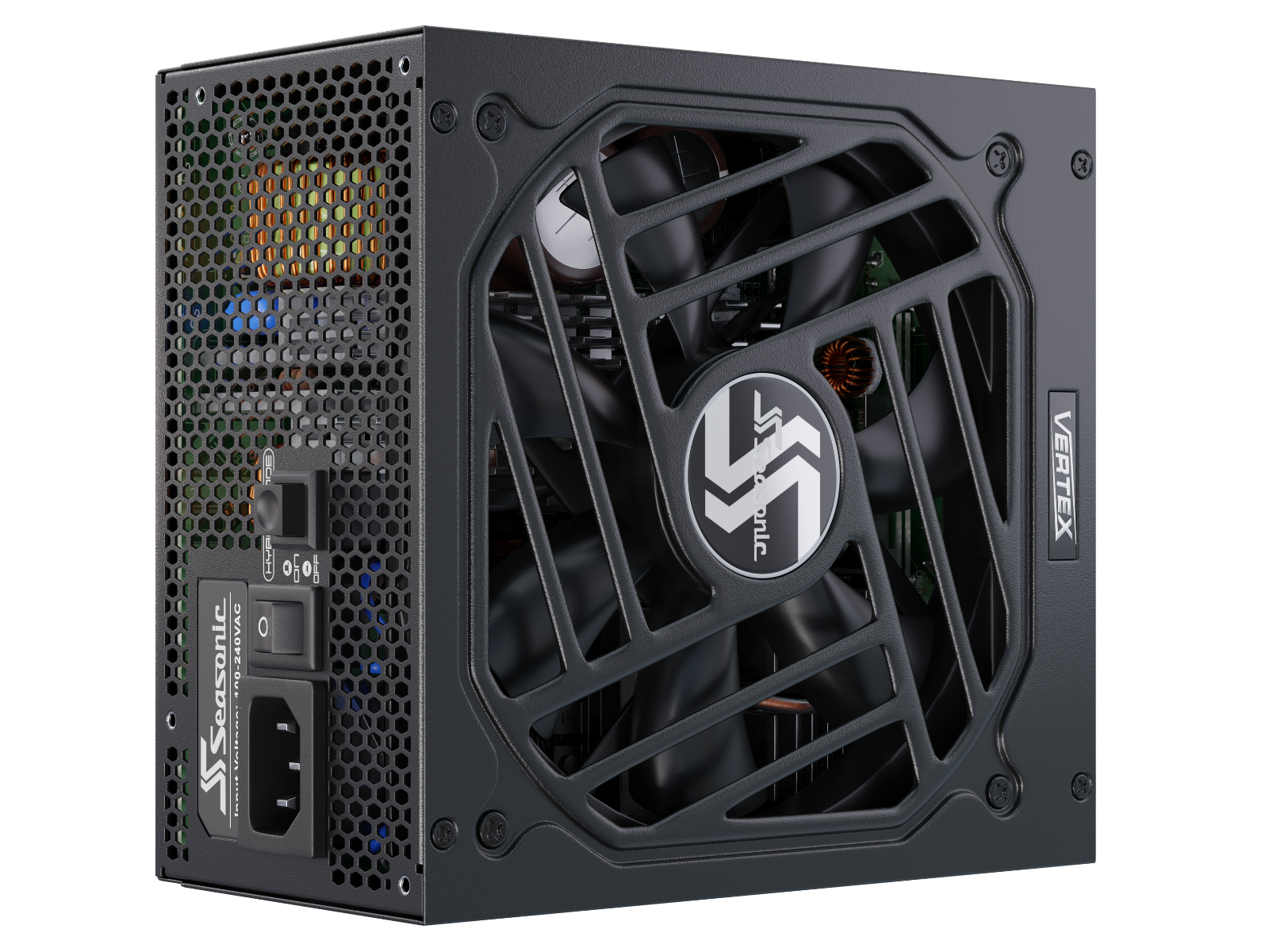

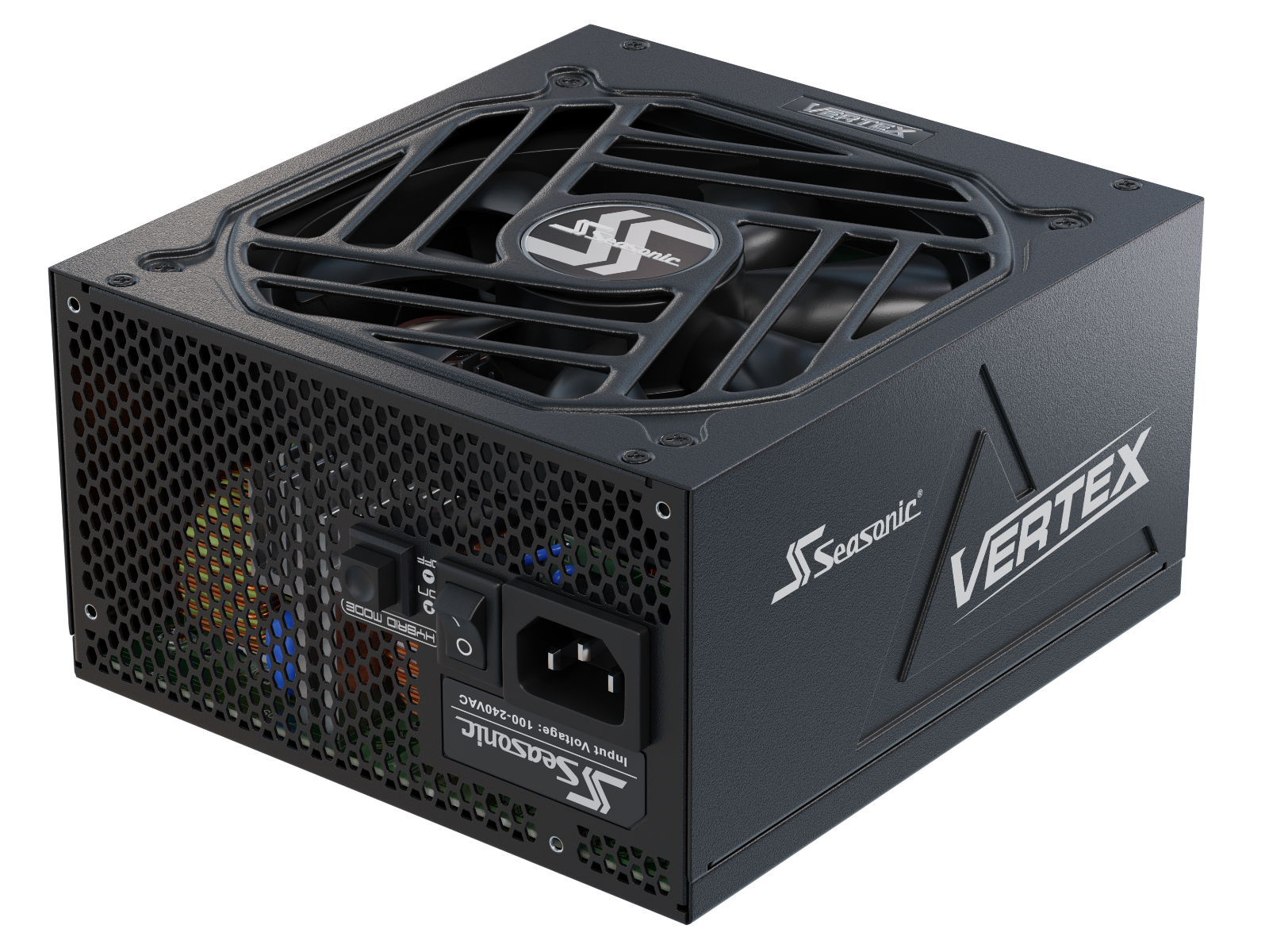

Seasonic VERTEX 850W (GX-850) 80 PLUS Gold Modular PSU

VendorLucky Deals
Share
- WhatsApp
- Deel
- Tweet
- Pin it
- Messenger
- Email

Product form

FEATURES Super-High Efficiency, 80 PLUS® Platinum Certified Fully Modular ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR) Top-Quality 135... Read more

$518.95$407.99 Excl. GST

Reviews

Seasonic VERTEX 850W (GX-850) 80 PLUS Gold Modular PSU

0 out of 5 stars

This product has no reviews yet

Write a review

Technical Specifications
80PLUS ®		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		160 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH

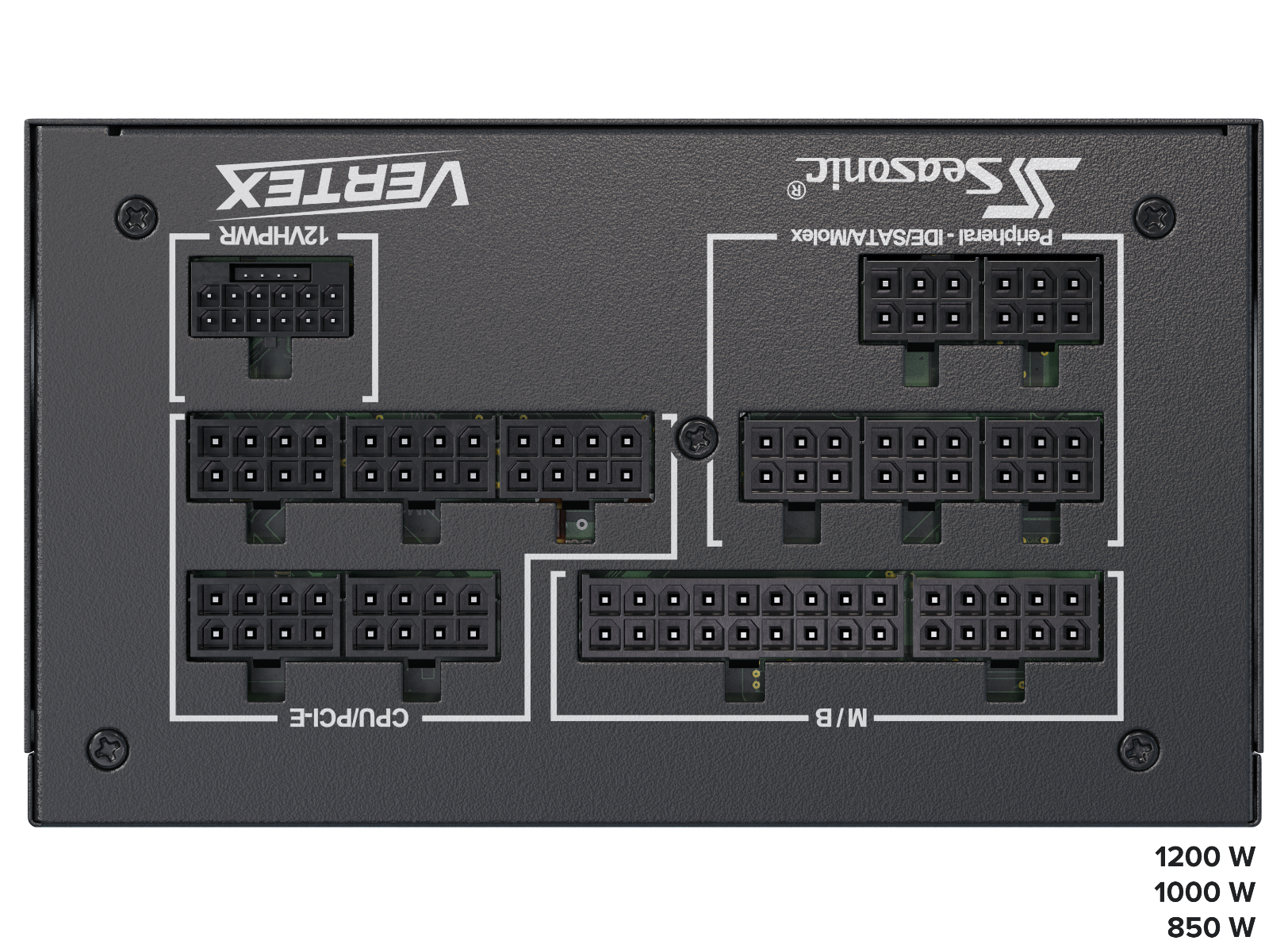

Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 11 - 5.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	70 A	0.3 A	3 A
		125 W		840 W	3.6 W	15 W
	Total continuous power	850 W

Technical Specifications
80PLUS ®		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		160 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 11 - 5.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	70 A	0.3 A	3 A
		125 W		840 W	3.6 W	15 W
	Total continuous power	850 W
