Description
Features:
Universal input
Japanese Capacitor
High efficiency 87%
Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
Over voltage protection
Over current protection
Short circuit protection
Over Thermal protection
No load consumption 0.5W
Output Specifications:
|
Model
|
Output power
|
Min. Load
|
Max. Load
|
Total power
|
Efficiency
|
|
SSA-1201-24
|
24V
|
0A
|
5
|
120W
|
87%
|
Dimension:
L174 W65 H37 mm (L6.85 W2.56 H1.46 inch)
General Specifications:
Input voltage range: 90~264 Vac
Input frequency: 47~63 Hz
Input current: 2A (rms)
Efficiency: 87% Average
Leakage current: 3.5mAa max.
Safety:
|
Safety
|
EMI/EMC
|
|
CEC
|
CB
|
CUL
|
UL
|
CCC
|
DEMKO
|
FIMKO
|
NEMKO
|
SEMKO
|
TUV
|
cTUVus
|
VDE
|
PSE
|
BSMI
|
C-tick
|
CE
|
FCC
|
|
V
|
V
|
V
|
|
V
|
|
|
|
|
V
|
|
|
V
|
V
|
V
|
V
|
V
|
(V = certificate ready ; P = certificate pending; V * = not apply to all models )
Package contents:

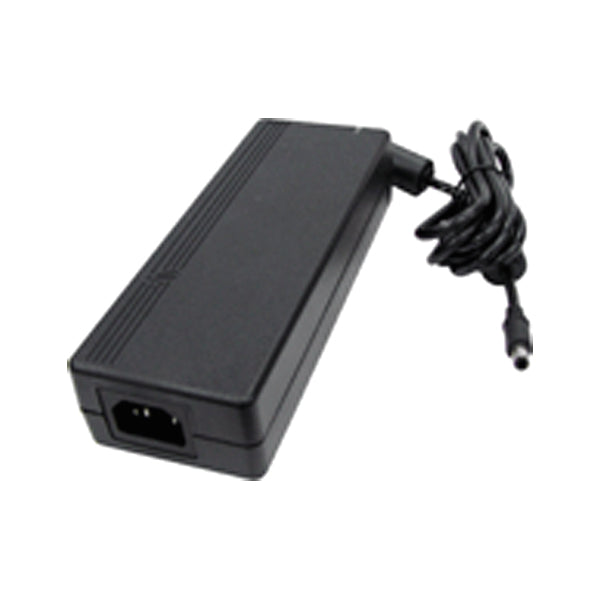

1x Seasonic Wall Mount Switching Adapter (SSA-1201-24)
