Description

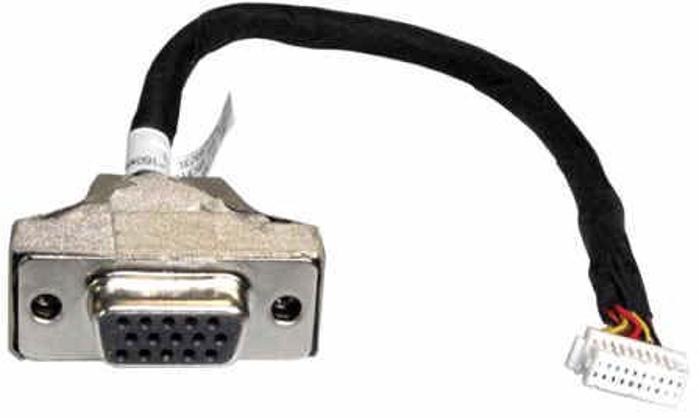

PVG01 - DS81, DH110, DS87, DH170, XH81V VGA port expansion kit for Shuttle Slim-PCs The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards. Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used. Scope of delivery: - Adapter PVG01 - Installation guide - Two screws Specifications: Internal adapter cable, Cable length: 160 mm Back panel connector: 15-pin Mini D-Sub female socket (DE15) Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female Compatibility: Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V Full spec
