Description
Features:

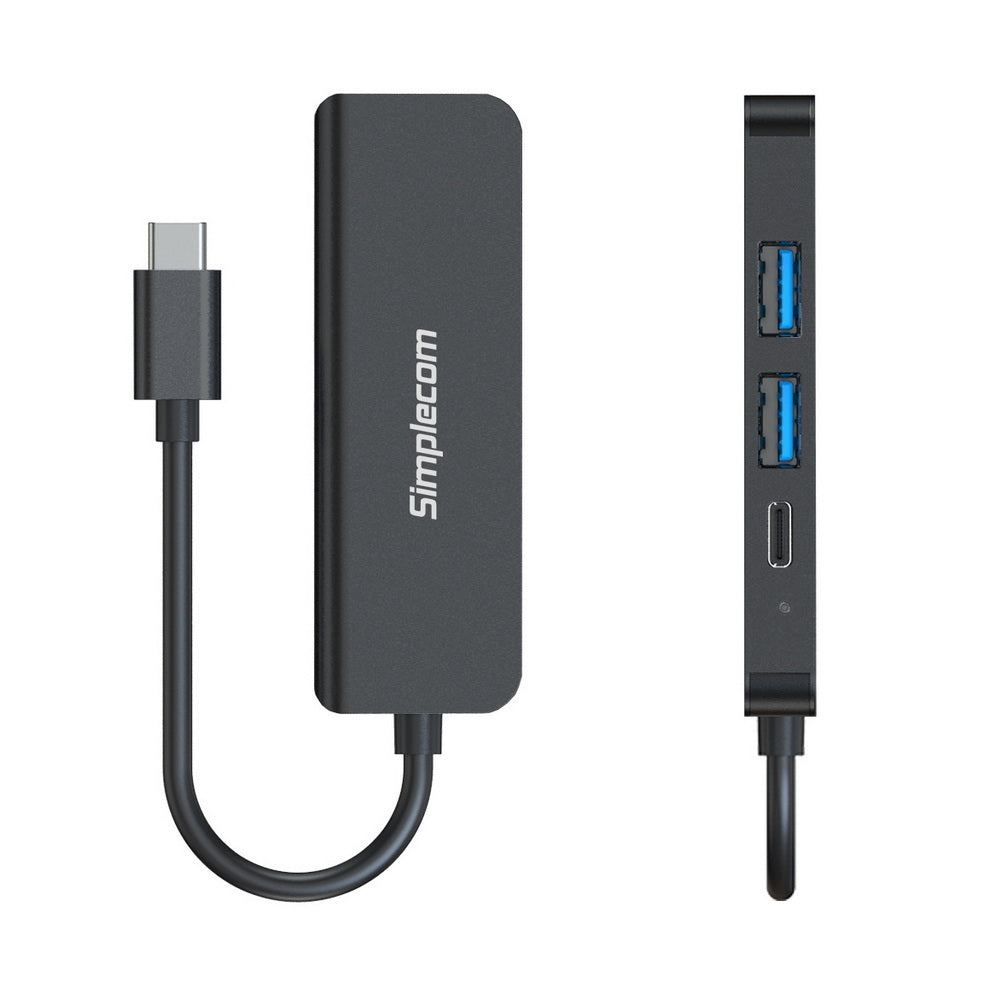

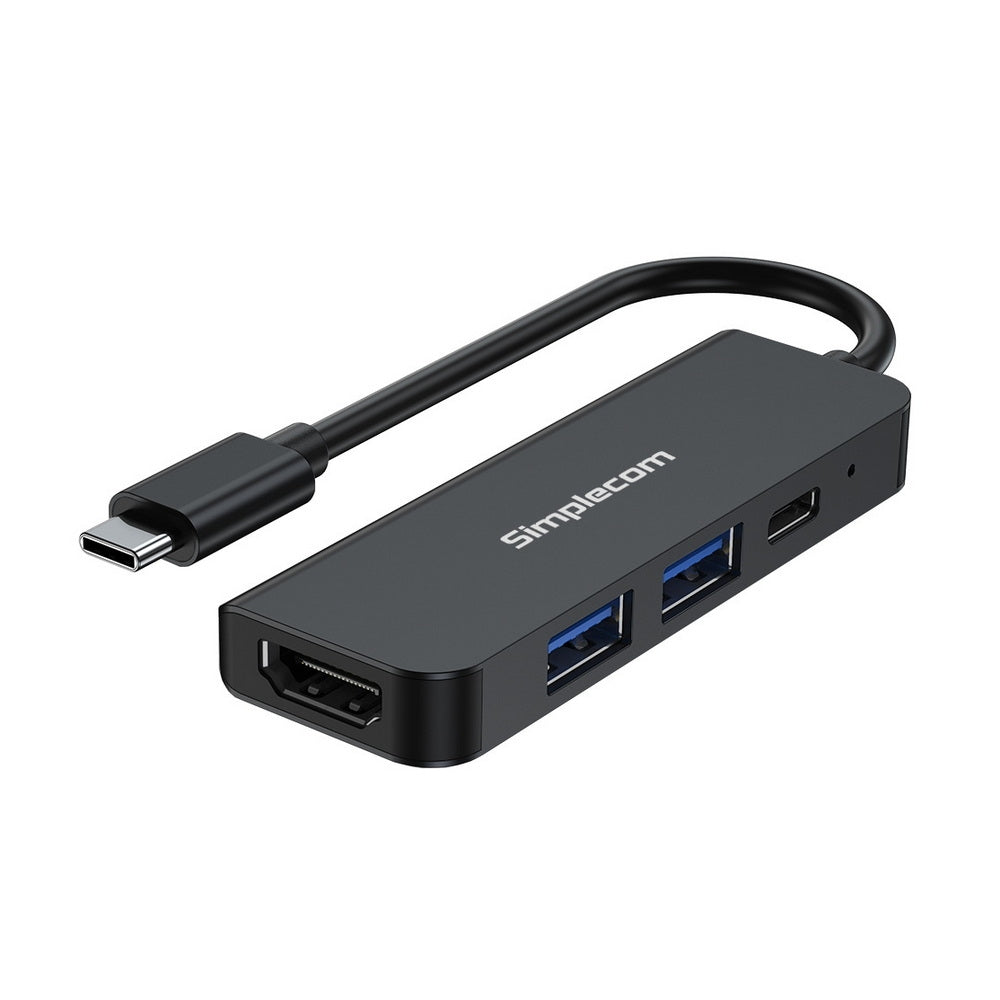

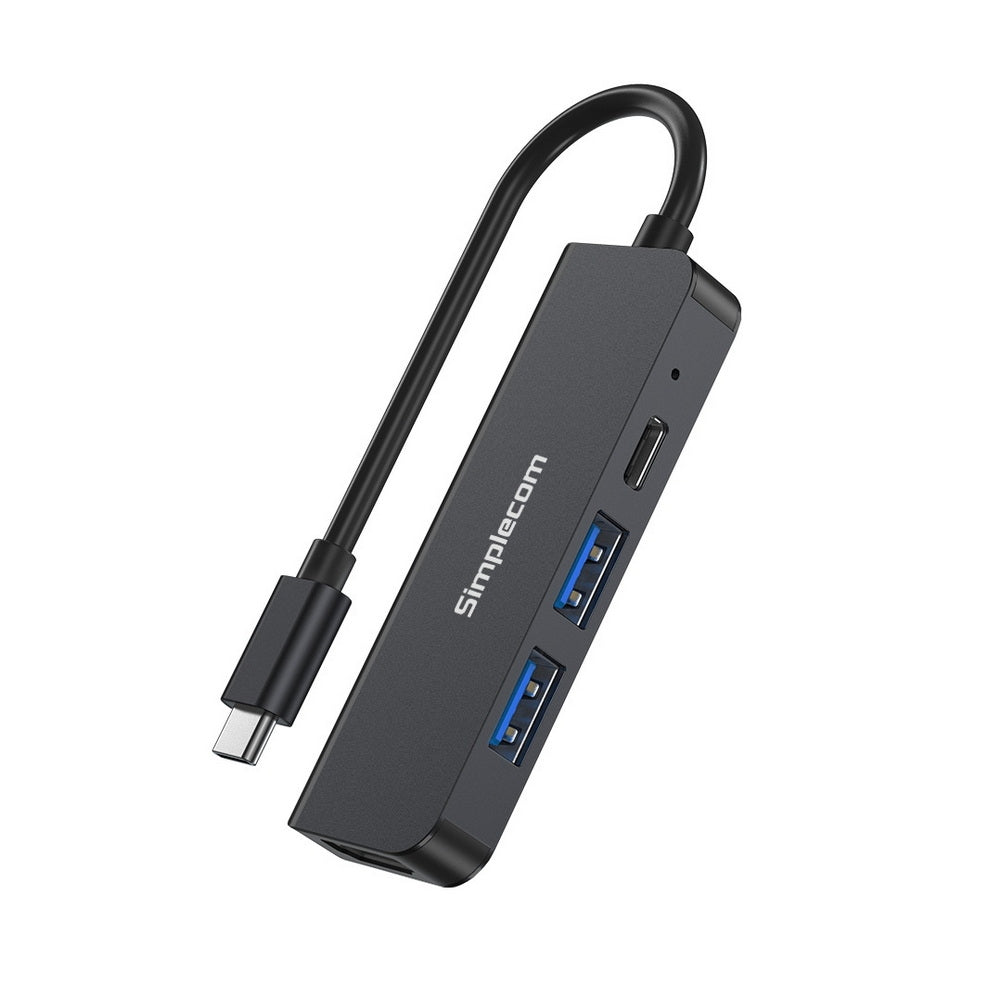

CH540 is a USB-C multiport adapter for modern laptops with multifunctional USB-C interface. It turns a single USB-C port into 4 ports, including two USB-A ports, HDMI Display output, and one USB-C PD charging port. The HDMI port supports transmitting video with resolution up to 4K@30Hz, and the USB hub provides up to 5Gbps transmission speed. It’s an ideal connectivity solution that helps you to increase productivity and convenience.Ultra-Compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work.
Convenience of expanding your laptop with this 4-Port USB-C Hub

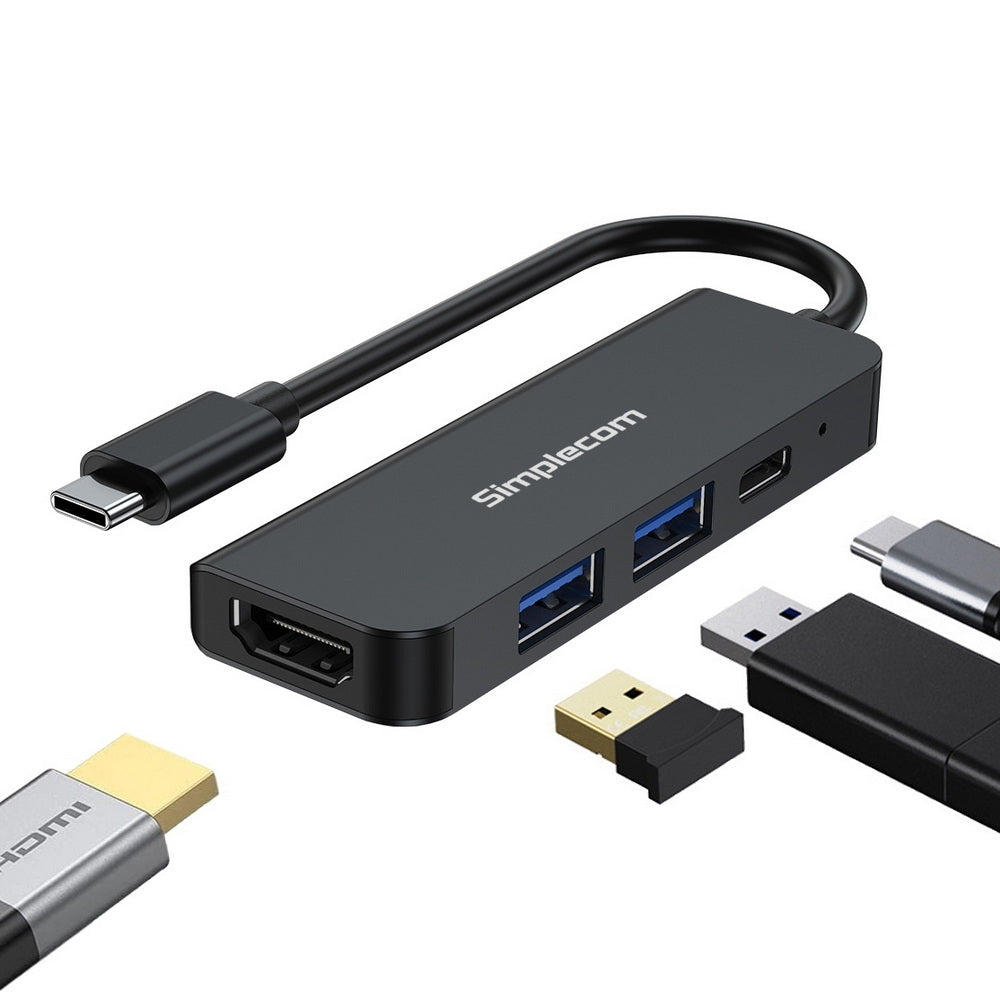

Single USB-C to 2x USB-A, HDMI, and USB-C PD
HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
Two USB-A ports, USB 3.0 and USB 2.0, can be used simultaneously
Up to 5Gbps data transfer rate on USB 3.0 port
USB-C PD port for charging the laptop with up to 87W of power
Durable & stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Built-in flexible USB-C Cable
Plug & play, no driver software required
Specifications:
USB Hub: 2x USB-A Female (1x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps)
HDMI Output: Support up to 3840 x 2160p at 30 Hz (4K@30Hz)
PD Charging: USB-C Female (for charging only), up to 87W
Operation Temperature: 0 - 45°C
Dimensions: 83 x 28 x 11 (mm)
Cable Length: 10cm
Weight: 30g
Housing: Aluminium
System Requirements
Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 7 or above, MacOS 10.7.1 or above, Android
Package Content:
1x Simplecom CH540 USB-C 4-in-1 Multiport Adapter Hub USB 3.0 HDMI 4K PD
