CH570

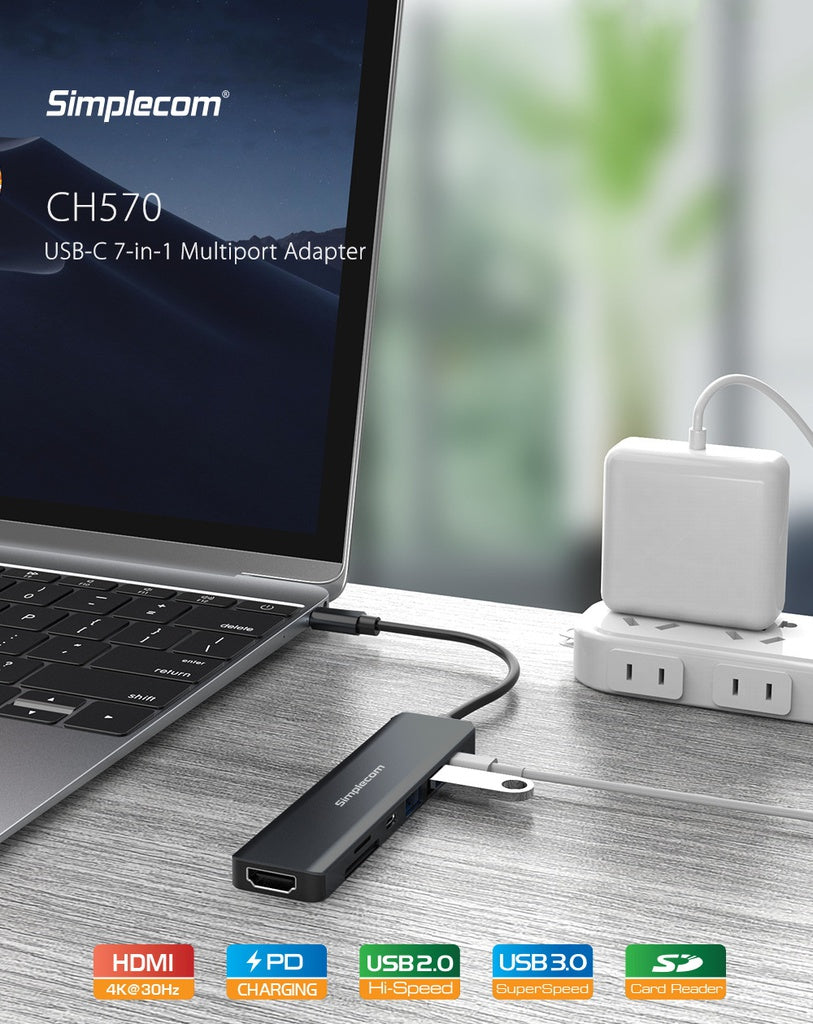

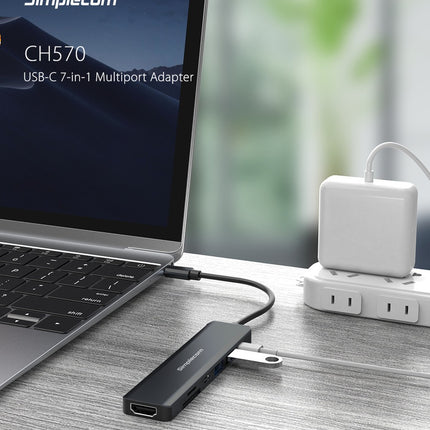

Simplecom CH570 USB-C 7-in-1 Multiport Adapter Hub USB 3.0 HDMI 4K SD Card Reader
OVERVIEW

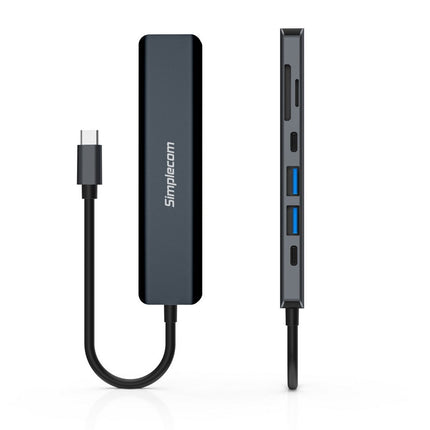

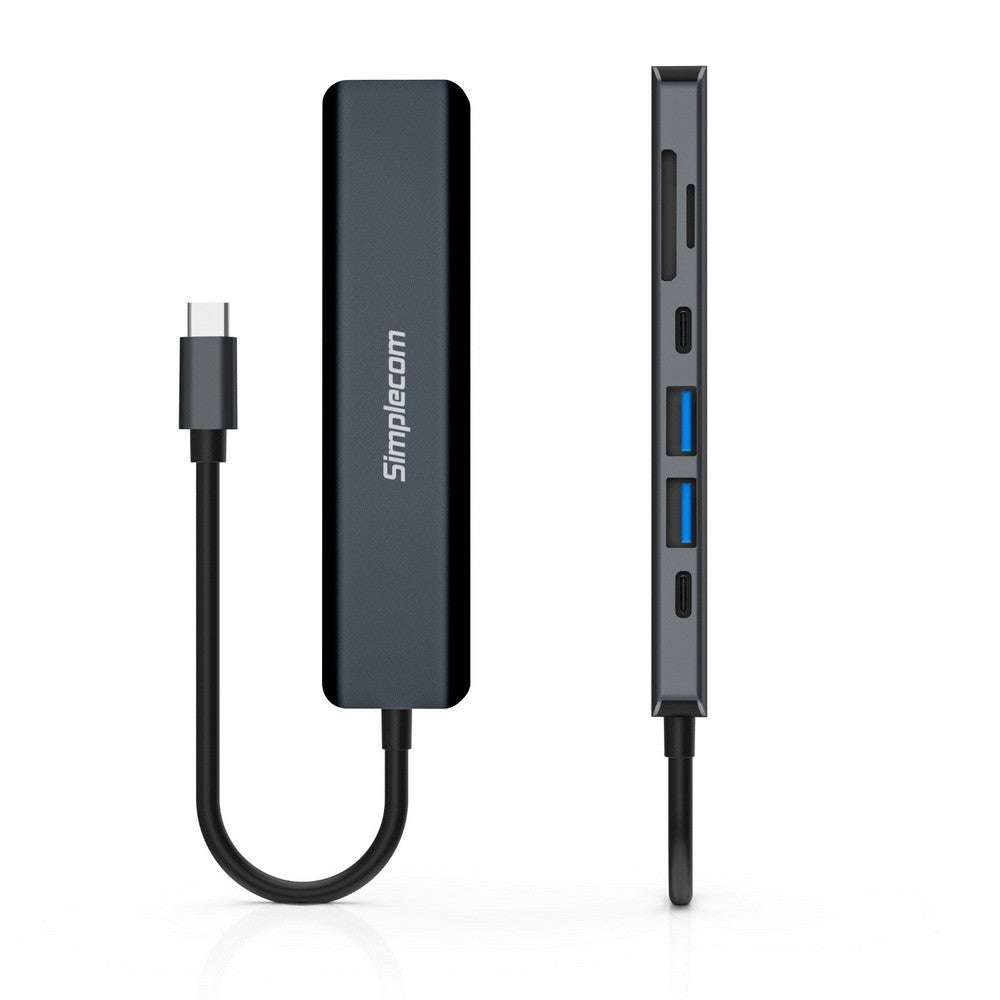

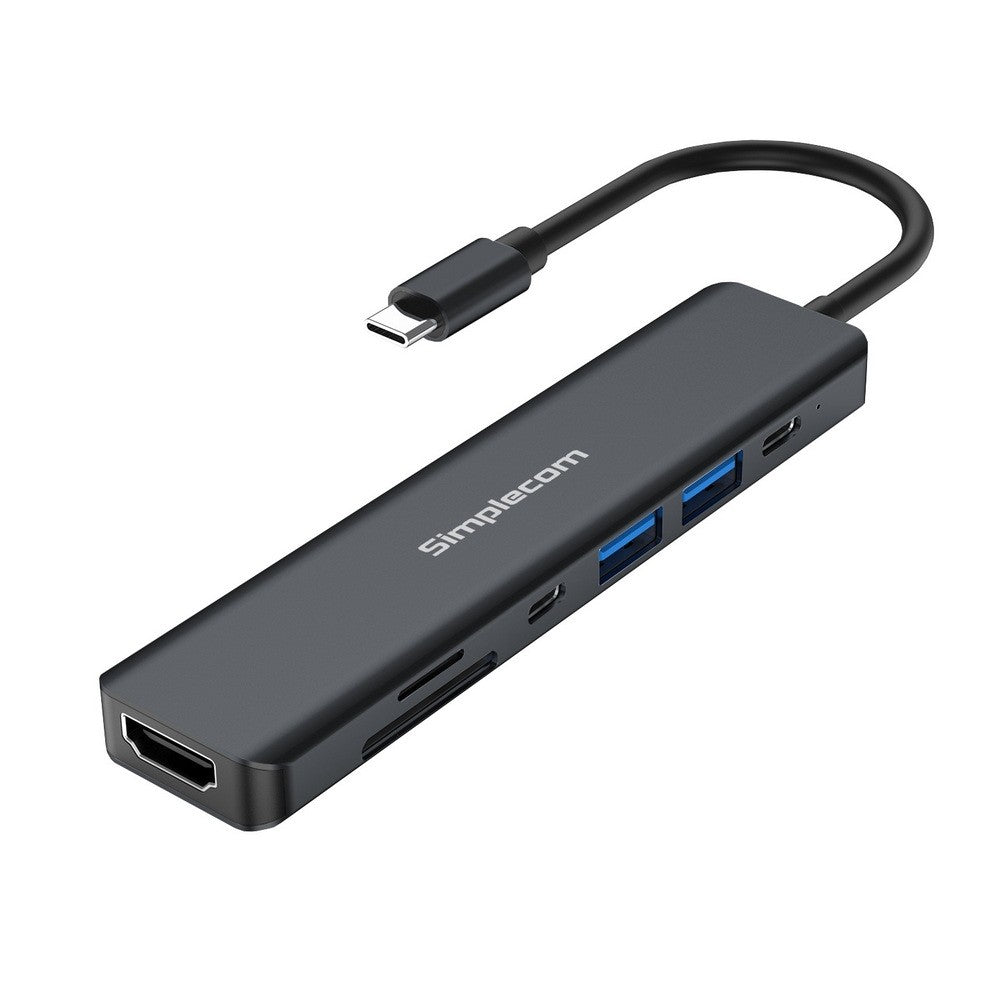

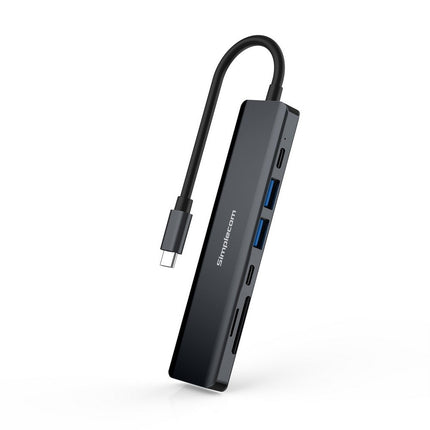

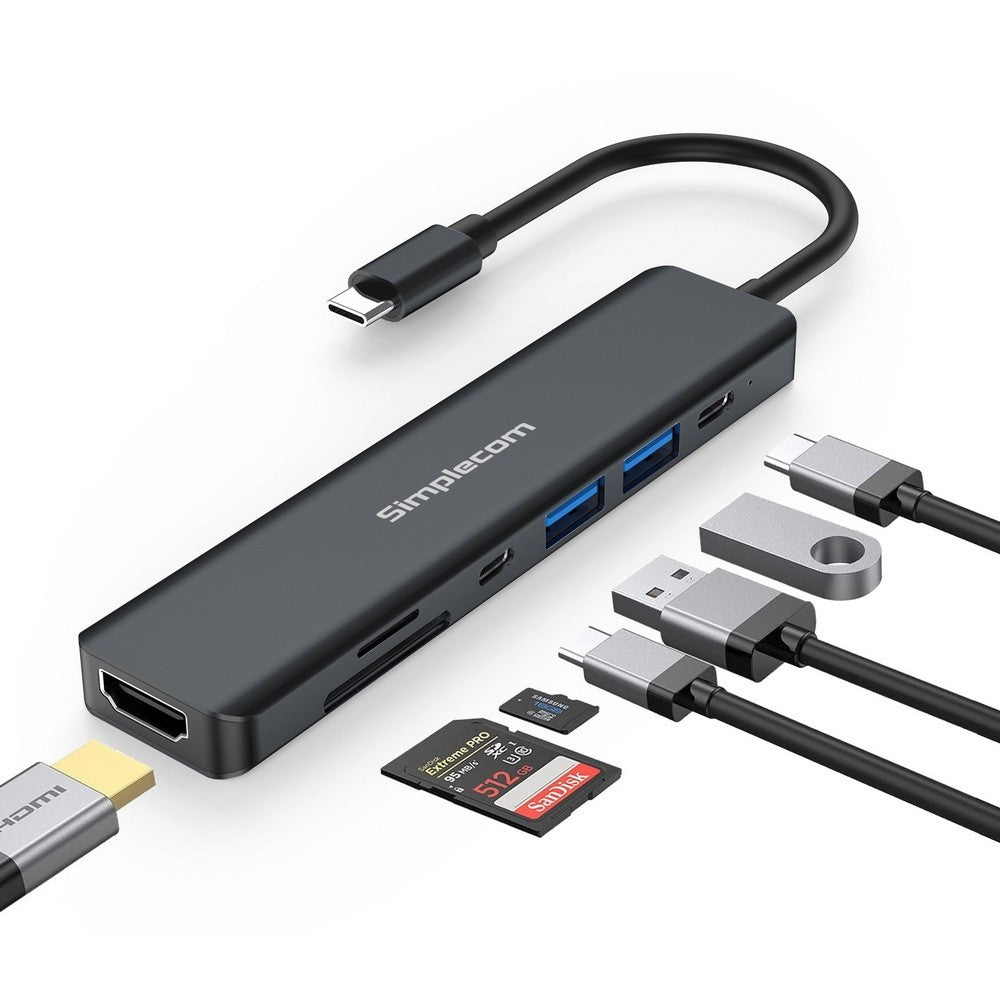

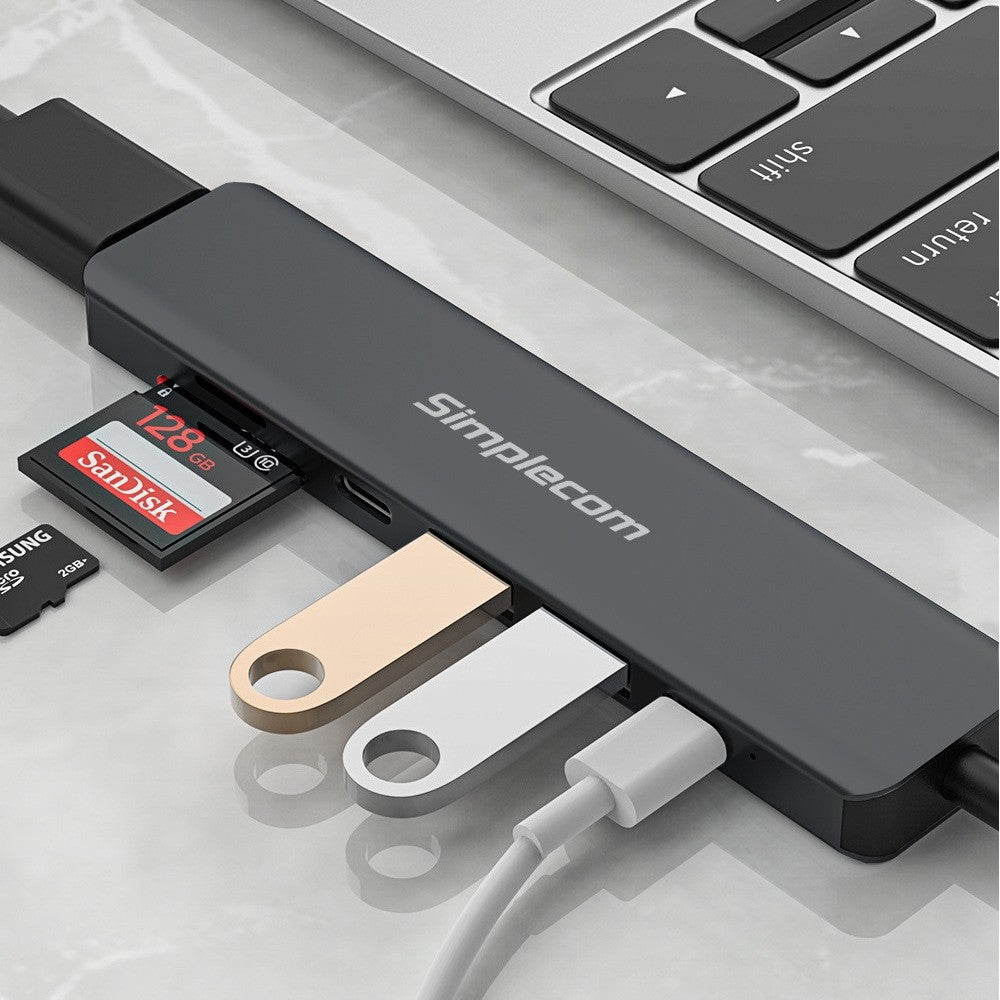

CH570 is a 7-in-1 USB-C multiport adapter for modern laptops with multifunctional USB-C interface, you can get the most out of your laptop through USB-C port. It turns a single USB-C port into 7 ports, including 2x USB-A ports, 2x slots card reader, HDMI Display expansion, 1x USB-C date port and 1x USB-C PD charging port.

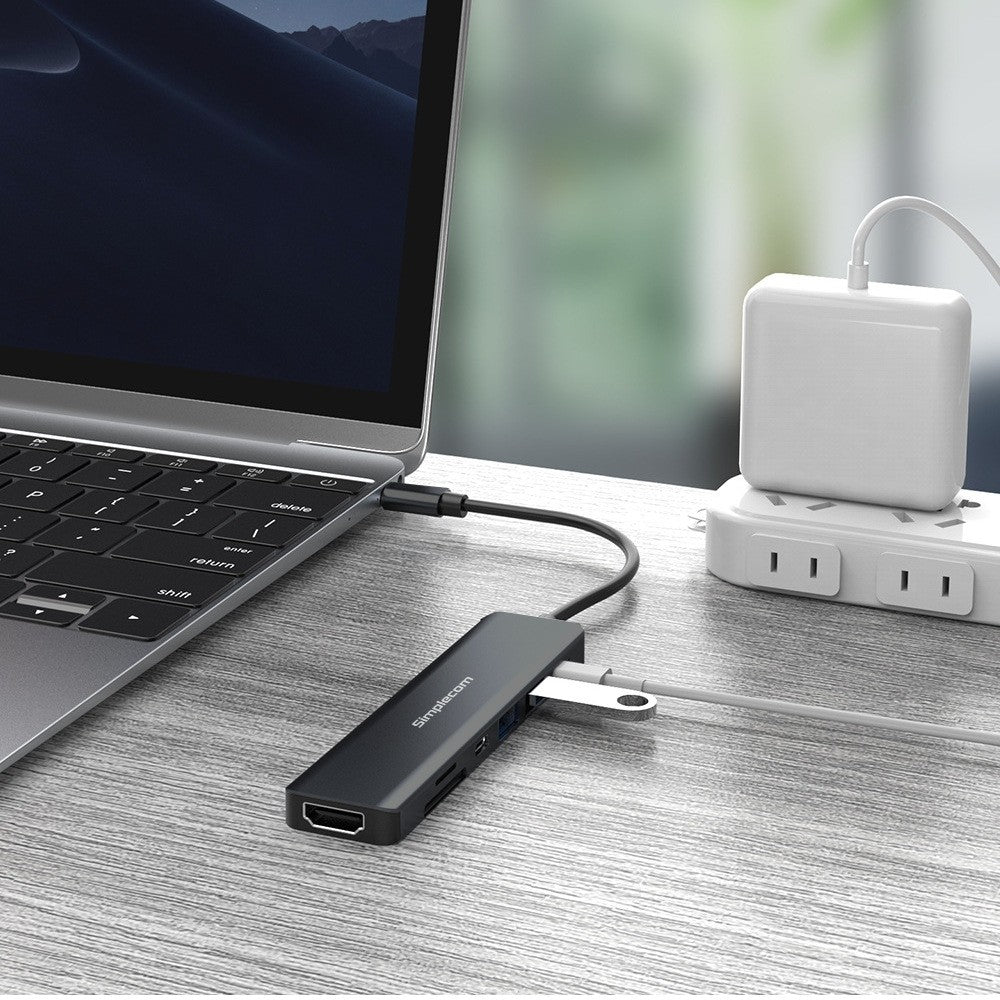

If you need to connect with various devices to your laptop at same time, CH570 is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience. The adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst its compact design makes it perfect for travelling.
FEATURES
- Convenience of expanding your laptop with this 7-Port USB-C Hub
- Single USB-C to USB-A, HDMI, Card Reader and PD
- Up to 5Gbps data transfer rate on USB-A port following USB 3.2 Gen 1 specification
- HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
- 2 Slot Card reader for SD and micro SD Card
- USB-C PD port for charging the laptop with up to 87W of power
- Durable & stylish aluminium alloy housing
- Lightweight, easy to carry along when travelling
- Built-in flexible USB-C Cable
- Plug & play, no driver software required
SPECIFICATION
-
USB Hub: 2x USB-A Female (1x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps), 1x USB-C Female (HighSpeed 480Mbps)
-
HDMI Outputt: Support up to 3840 x 2160p at 30 Hz (4K@30Hz)
-
Card Reader: SD and MicroSD (HighSpeed 480Mbps)
-
PD Charging: USB-C Female (for charging only), up to 87W
-
Operation Temperature: 0 - 45°C
-
Dimensions: 121 x 28 x 10 (mm)
-
Cable Length: 10cm
-
Weight: 45g
-
Housing: Aluminium
-
System Requirements:
Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 7 or above, MacOS 10.7.1 or above, Android
