Description

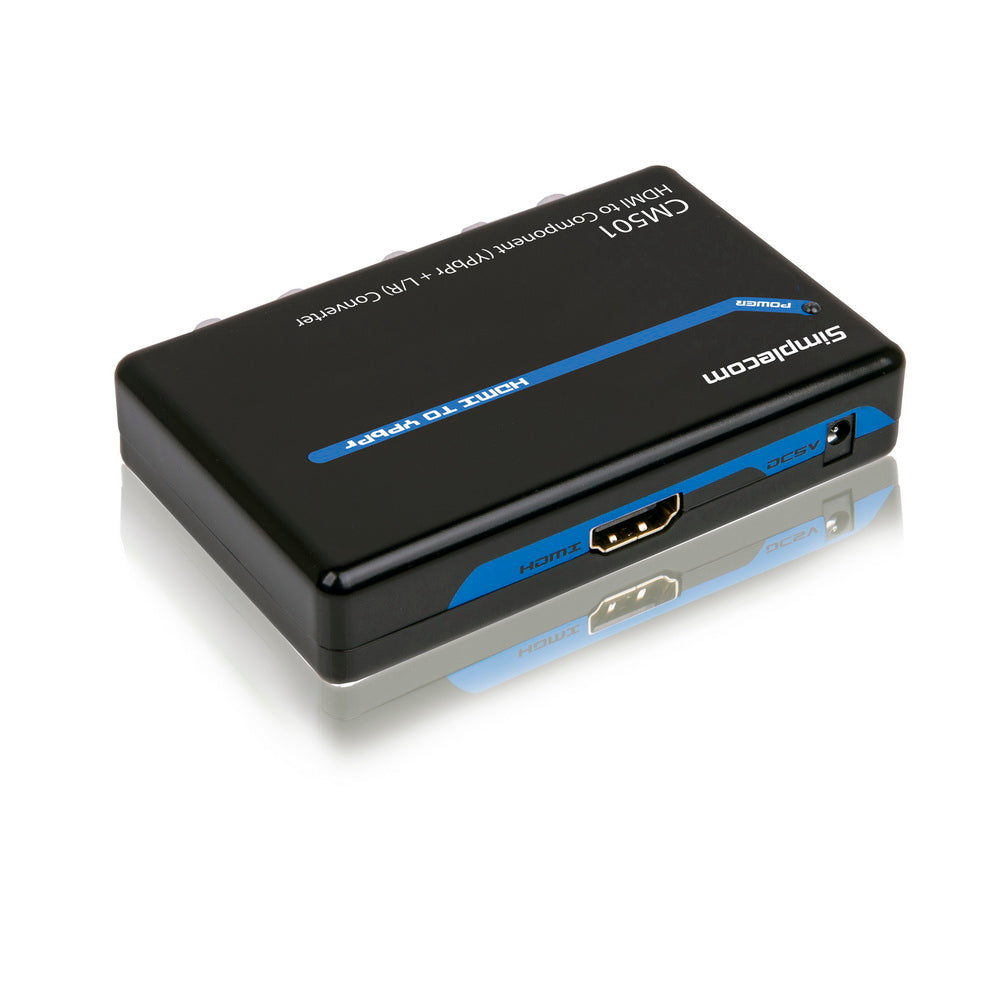

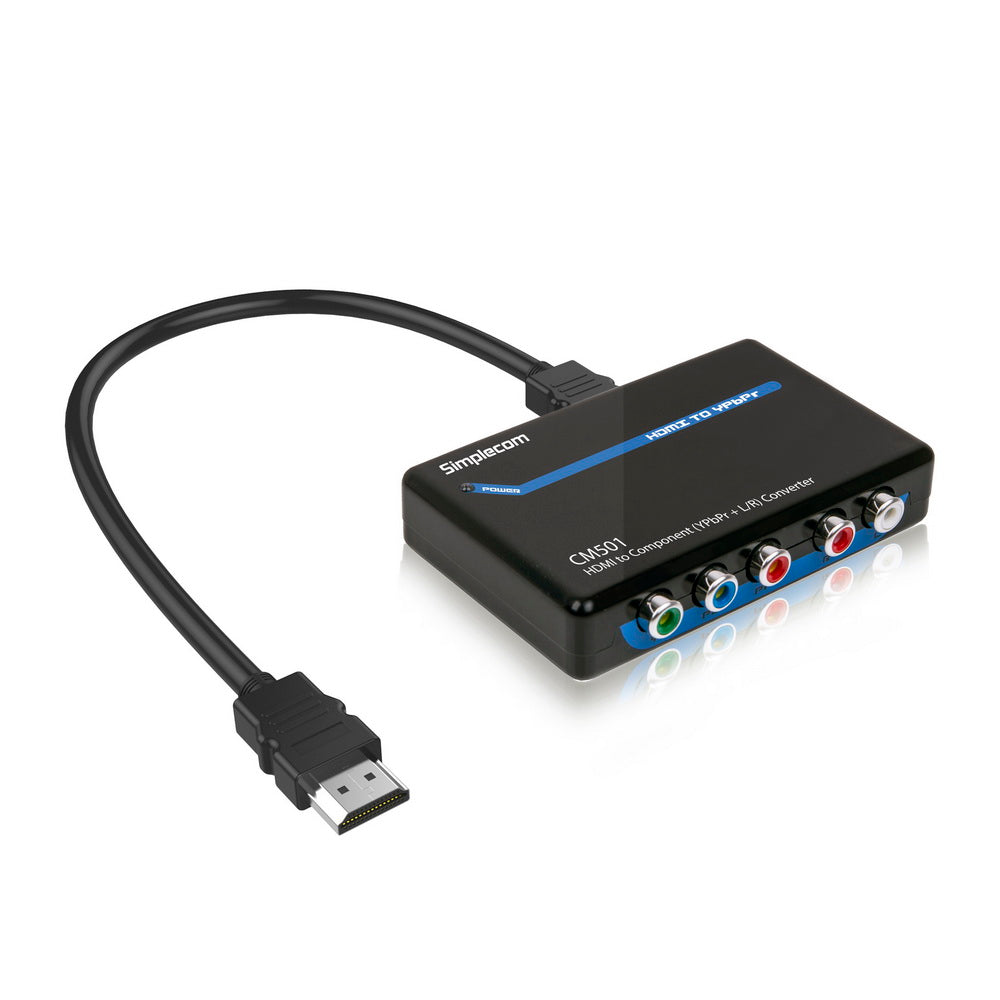

Simplecom CM501 HDMI to Component Video (YPbPr) and Audio (L/R) Converter
CM501 converts HDMI to Component Video (YPbPr) and stereo audio. It allows you to enjoy your high definition movies and games on the older component TV's or projectors that don't have an HDMI input. Also, you can easily connect your speaker system with separate component Video and Audio outputs.
Features
Ease to Use, small size, Installs in seconds
Support most HDMI video output resolution up to 1080p
Resolution pass-through, converting video formats only, no conversion of video resolutions
Audio format support 2 channel LPCM
Compliant with HDMI 1.3 and HDCP 1.2
Supports 225MHz/2.25Gbps per channel bandwidth for HDMI input
Powered by USB, USB Power Cable and Wall Changer included
Specifications
Input Signal: HDMI
Output Signal: Component + Stereo Audio (YPbPr + L/R)
Supported HDMI resolution: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz
Supported Component Video resolution: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz
Video Bandwidth: 2.25Gbps/225MHz
Vertical Frequency Range: 50/60Hz
Operating Humidity: 10% to 85% RH
Storage Humidity: 5% to 90% RH
Power Supply: 5V DC
Power Consumption(Max): 5W
Important Note
The converter doesn’t support audio decoding and only supports PCM audio signals and does NOT support Dolby, DTS, or other proprietary 5.1/7.1 surround sound signals.
Will not convert audio signal only.
Converting from HDMI to Component only, not capable of being reversed.
Package Contents
1x CM501 HDMI to Component Converter
1x HDMI Lead
1x USB Power cable
1x USB Wall Charger
1x User Manual
