Description

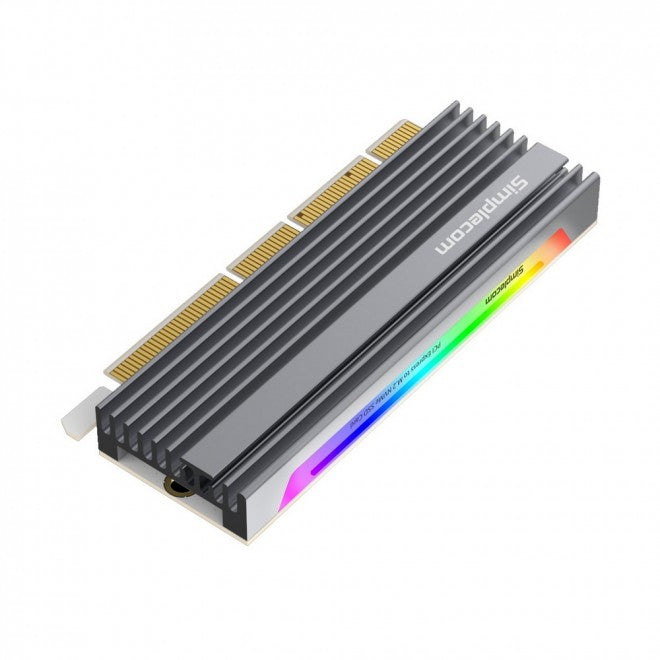

EC415 is a PCI Express expansion card designed to add NVMe M.2 SSD onto existing PC motherboard. It comes with aluminium heat sink for better heat dissipation, and unique RGB LED light for great visual effect inside chassis. Designed for NVMe M.2 SSD only, this expansion card can fully utilize the performance of the NVMe SSD.
Features
Add extra NVMe M.2 SSD to your PC Aluminium heat sink for better heat dissipation Unique RGB LED light for great visual effect
Supports physical PCIe x4 x8 x16 slot Supports logical/throughput interface up to PCIe x4 Powered by PCIe slot, no additional power required
Compatible with Windows 8 and above
Specifications
Model: EC415
Physical Interface: PCI Express x4 / x8 / x16
Logical Interface: PCI Express x4
Bandwidth: up to 7.8 Gbps (PCIe x4 on PCIe 4.0)
Module Key: M key (for NVMe M.2 only)
Number of Supported Drive: 1
Supported Type M.2 SSD: 2230, 2242, 2260, 2280
Dimension: 99 x 45 x 13mm
Package Contents
1x NVMe M.2 to PCIe Expansion Card Heatsink with thermal pad Standoff and screw set
Important Note
This model is for use with NVMe SSD only, SATA M.2 SSD is Not supported It supports physical PCIe x4 x8 x16 slot only, PCIe x1 slot is Not supported
It supports logical/throughput interface up to PCIe x4 NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system If there is a yellow exclamation mark under the Device Manager after installation, you may need to check if additional driver required from SSD manufacturer Older motherboard without built-in NVMe M.2 slot can't support booting operating system from PCI Express
