Description
SE509
Simplecom SE509 NVMe (M Key) M.2 SSD to USB 3.2 Gen 2 USB-C 10Gbps Enclosure
Overview

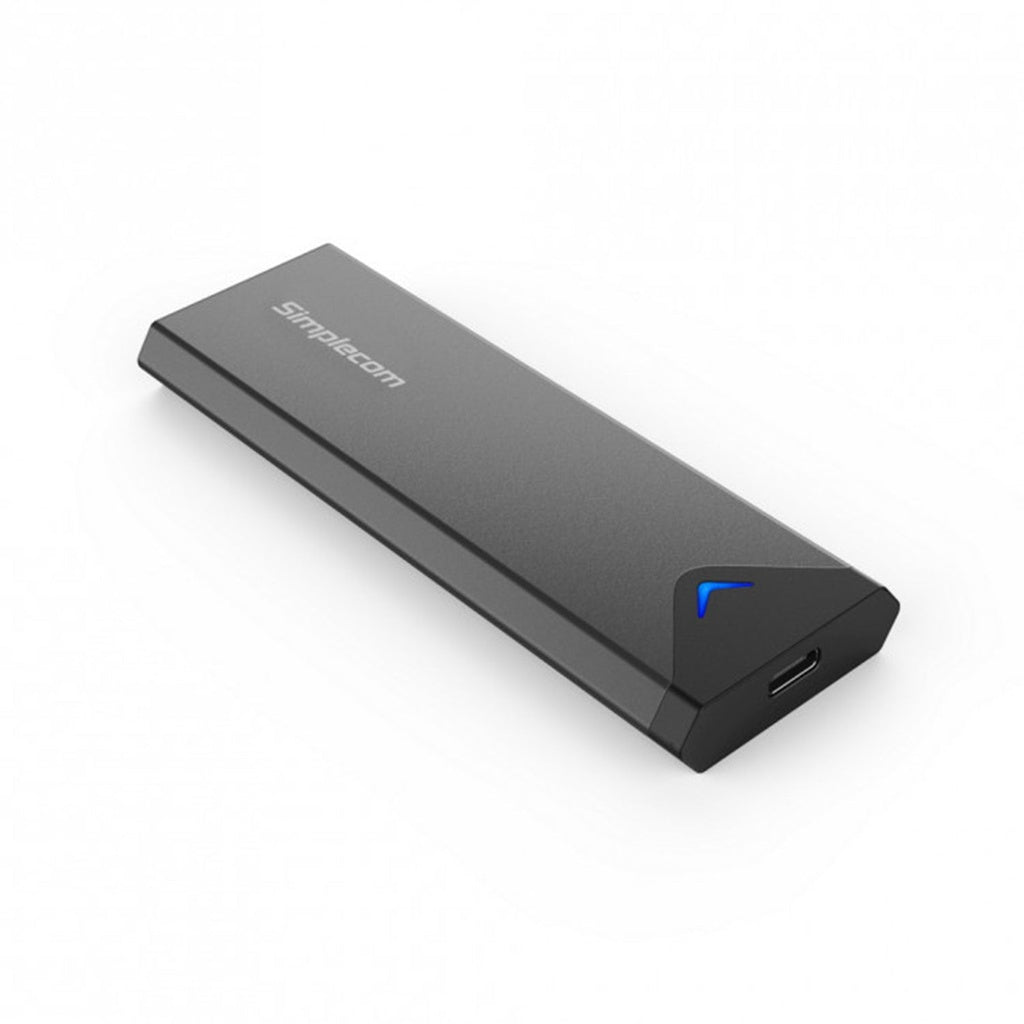

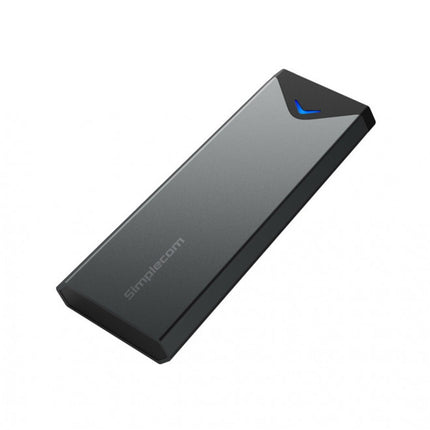

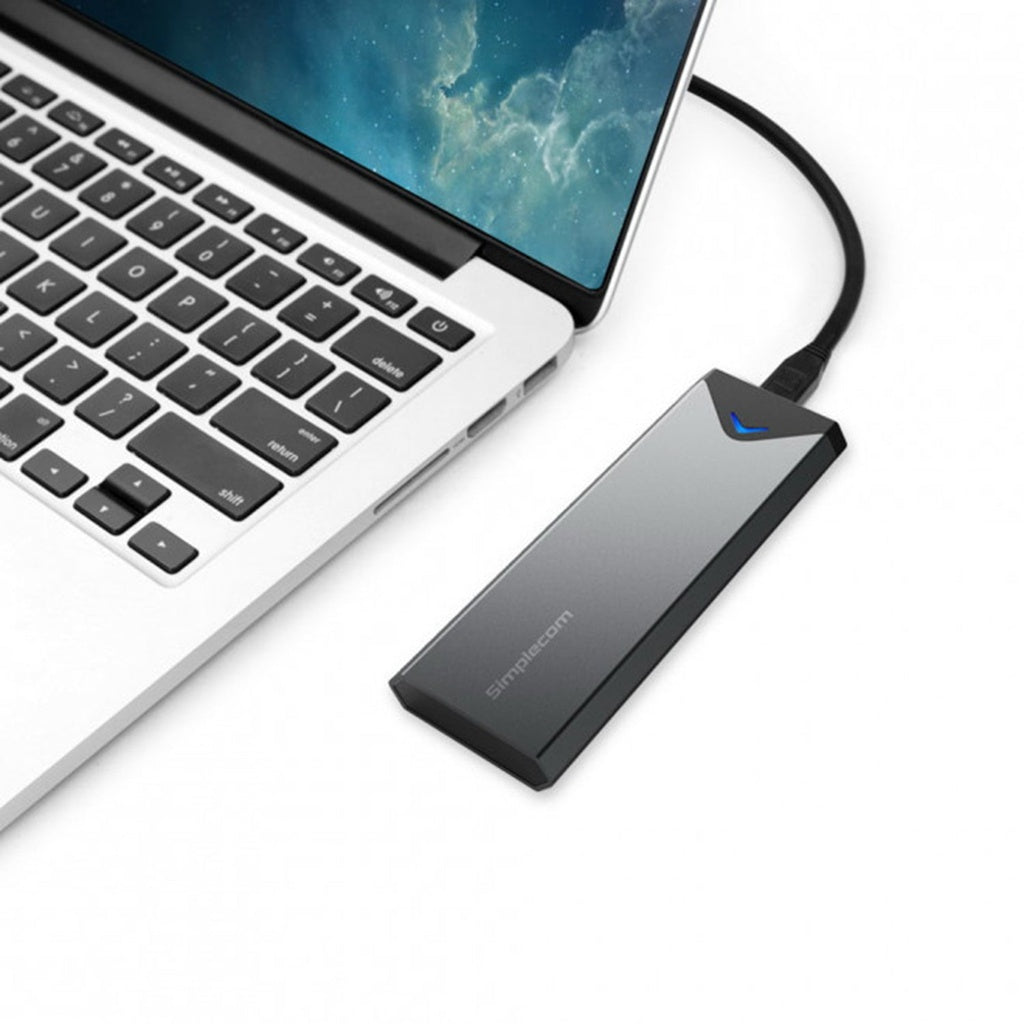

SE509 is a portable and stylish NVMe M.2 enclosure to unleash the full potential of NVMe M.2 SSD via USB 3.2 Gen 2 interface, which supports up to 10Gbps data transfer rate.
The lightweight, robust design features durable aluminium housing so you can quickly and easily put the enclosure into your pocket or laptop bag. The enclosure is USB powered and no external power required. It also features an eye-catching LED indicator for power and activity status.
The USB-C connector is small and reversible, which makes for easier insertions. You can connect the USB-C plug quickly with either side facing up. USB 3.2 Gen 2 enable data transfer speeds up to 10Gbps, which ensures fast access to your files.
Features
- Designed for M Key NVMe M.2 SSD only
- Convert an NVMe M.2 SSD to a USB-C portable drive
- USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
- Aluminium case for durability and excellent heat dissipation
- Plug and play, no drivers required
- LED indicator for power and activity status
- Compact size and lightweight for enhanced portability
Specifications
- Model: SE509
- Interface: USB-C (USB 3.2 Gen 2)
- Material: Aluminum + ABS
- Compatible M.2: NVMe M.2 SSD
- Compatible M.2 Size: 2242, 2260, 2280
- Dimension: 115x39x11mm (LxWxH)
- Operating System Support: Windows 7 and above, Mac OS 10.5 and above

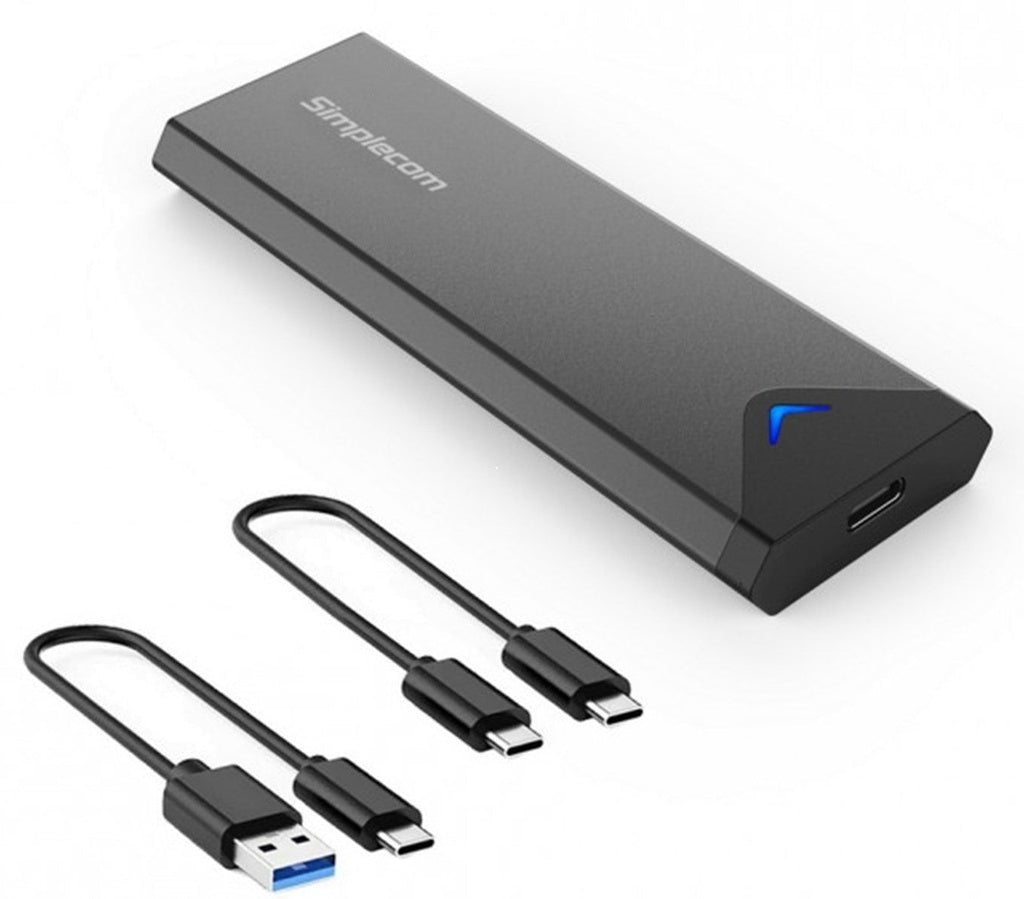

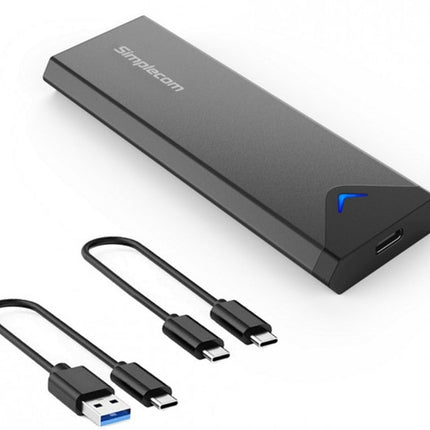

Package Contents
- 1x SE509NVMe M.2 SSD Enclosure
- 1x USB C to USB C Cable (10Gbps)
- 1x USB C to USB A Cable (5Gbps)
- 1x Screw driver
- Standoff and Screw Set
Note
- For NVMe M.2 SSD Only, Not compatible with SATA M.2 SSD
- 10Gbps data transfer rate is only for USB3.2 Gen2 enabled computer (also known as USB3.1 Gen2)
- USB C to USB A Cable is limited to 5Gbps speed
- For new SSD, you need to go into the disk management and initialize the SSD
- Due to high speed of NVMe M.2 SSD, the temperature is higher than traditional USB hard drive, NVMe M.2 SSD is designed to work stably at 60-70°C in heavy workload
