Description

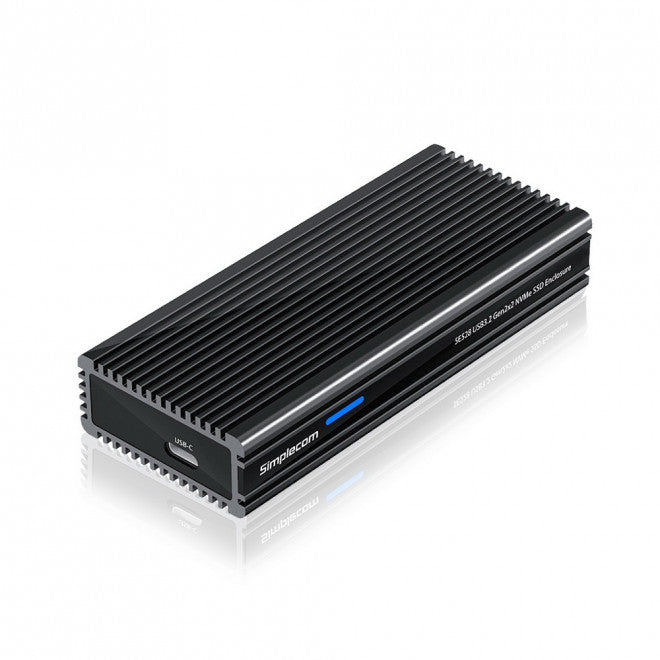

SE528 is a portable and durable NVMe M.2 enclosure with fastest version USB 3.2 Gen 2x2 interface and support data transfer rate up to 20Gbps, to unleash the full potential of high performance NVMe M.2.
The robust design features innovative heat sink style aluminium housing for effective heat dissipation to protect the SSD inside.
It also features an internal thermal pad that transfers heat away from the SSD to case for maximum heat dissipation, ensuring your SSD operates at lower temperature for optimal performance.
The enclosure is USB powered and no external power required.
It also features an eye-catching LED indicator for power and activity status.
Features
Designed for M Key NVMe M.2 2280 SSD only (20x80mm)
Convert an NVMe M.2 SSD to a USB-C portable drive USB 3.2 Gen 2x2 interface support data transfer rate up to 20Gbps Heat sink style aluminium case for durability and excellent heat dissipation
Internal thermal pad and copper heat sink for effective heat transfer
Plug and play, no drivers required LED indicator for power and activity status
Specifications
Model: SE528
Interface: USB-C (USB 3.2 Gen 2x2)
Transfer Rate: up to 20Gbps
Material: Aluminium
Compatible M.2: NVMe M.2 SSD
Compatible M.2 Size: 2280 (20x80mm)
Dimension: 104x36x14.5mm (LxWxH)
Operating System Support: Windows 7 and above, Mac OS 10.8 and above
Package Contents
1x SE528 NVMe M.2 SSD Enclosure
1x USB C to USB C Cable
1x Screw driver
1x Screw set
1x Acrylic side cover
1x Copper heat sink
1x Silicone thermal pad
1x User manual
Important Note
SE528 only support NVMe based M.2 2280 SSD (20x80mm), doesn't support SATA based M.2 SSD (B Key or B+M Key) and AHCI PCIe based M.2 SSD (M Key)
SE528 only can reach data transfer rate up to 20Gbps when a high performance NVMe M.2 SSD installed and connecting to PC with USB 3.2 Gen 2x2 host port. Otherwise, speed will be limited to 5Gbps or 10Gbps according max speed support of SSD and USB port on PC.
