Description

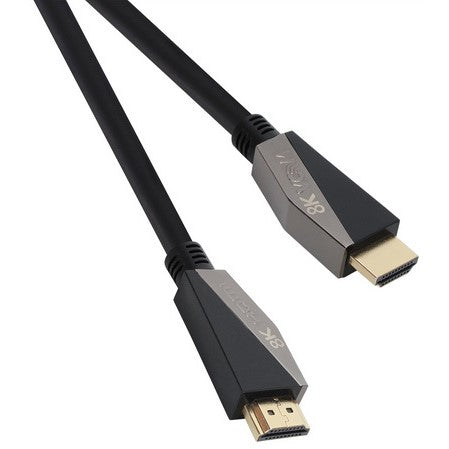

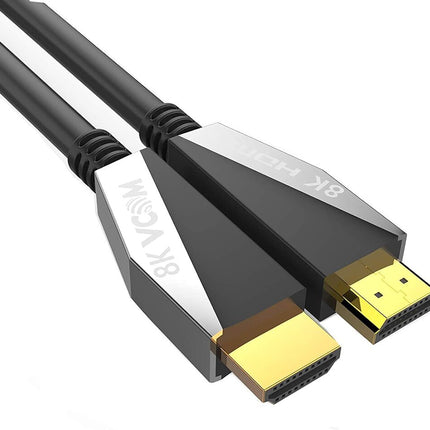

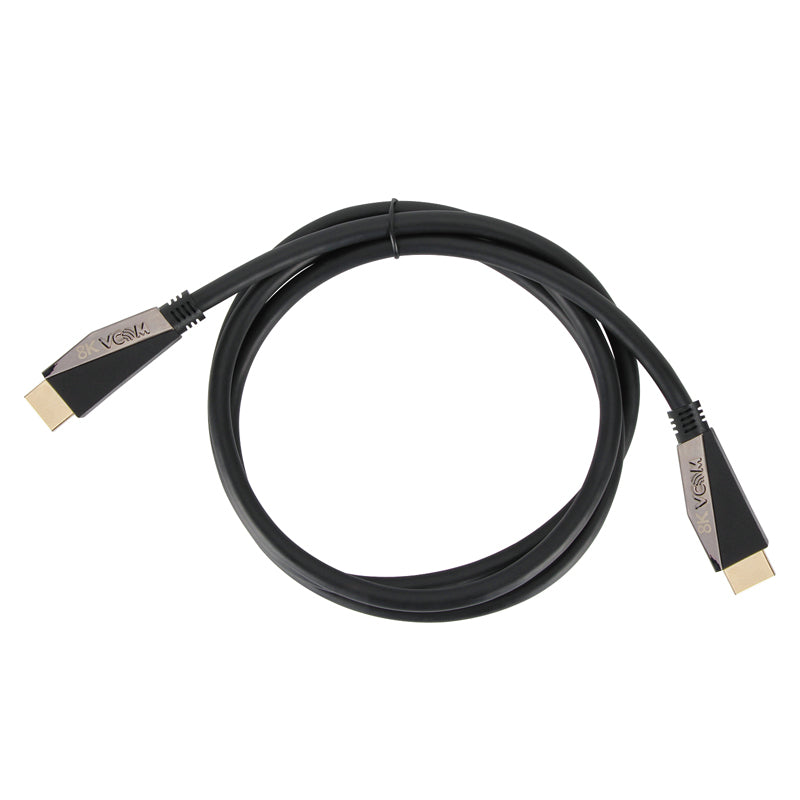

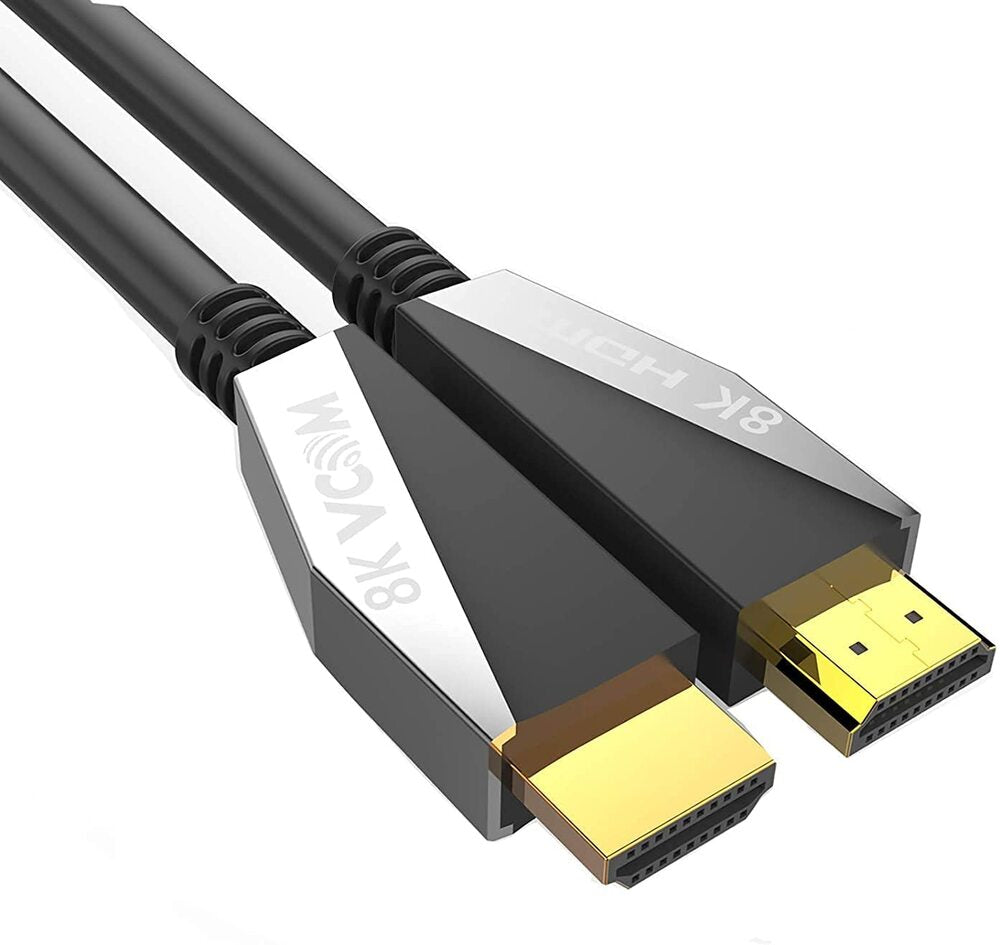

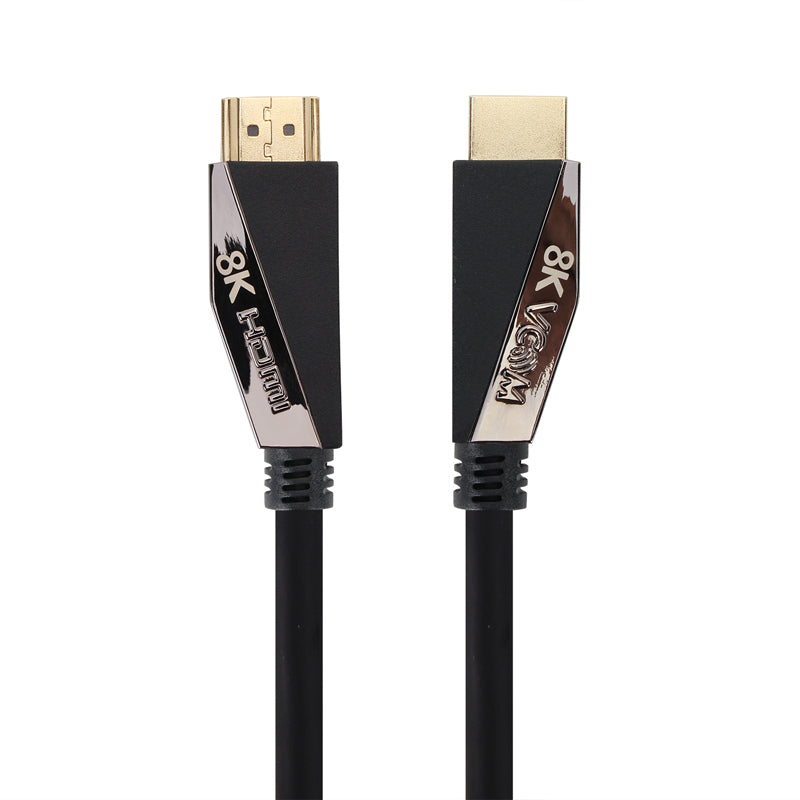

VCOM CG860 1.5M Metal HDMI to HDMI Cable
OVERVIEW
Supports 3D, Ethernet and Audio Return and resolutions up to 8K, 2160p, 1440p, 1080p, 1080i, 720p, 480p, and 480i. Compatible with all HDTVs, Blu-ray players, Xbox, PlayStation and other HDMI devices.
FEATURES
High-Speed transmission
High speed cable which supports of transmission speeds up to 48Gbps and resolutions of up to 8K. Supports True HD Dolby 7.1 and DTS-HD Master Audio for a cinematic experience. HDMI Ethernet Channel (HEC) and Audio Return Channel (ARC) supported.
Wide range compatibility
Compatible with various devices such as HDTVs, Blu-ray players, Xbox, PlayStation and any devices with HDMI port. Supports ethernet connectivity.

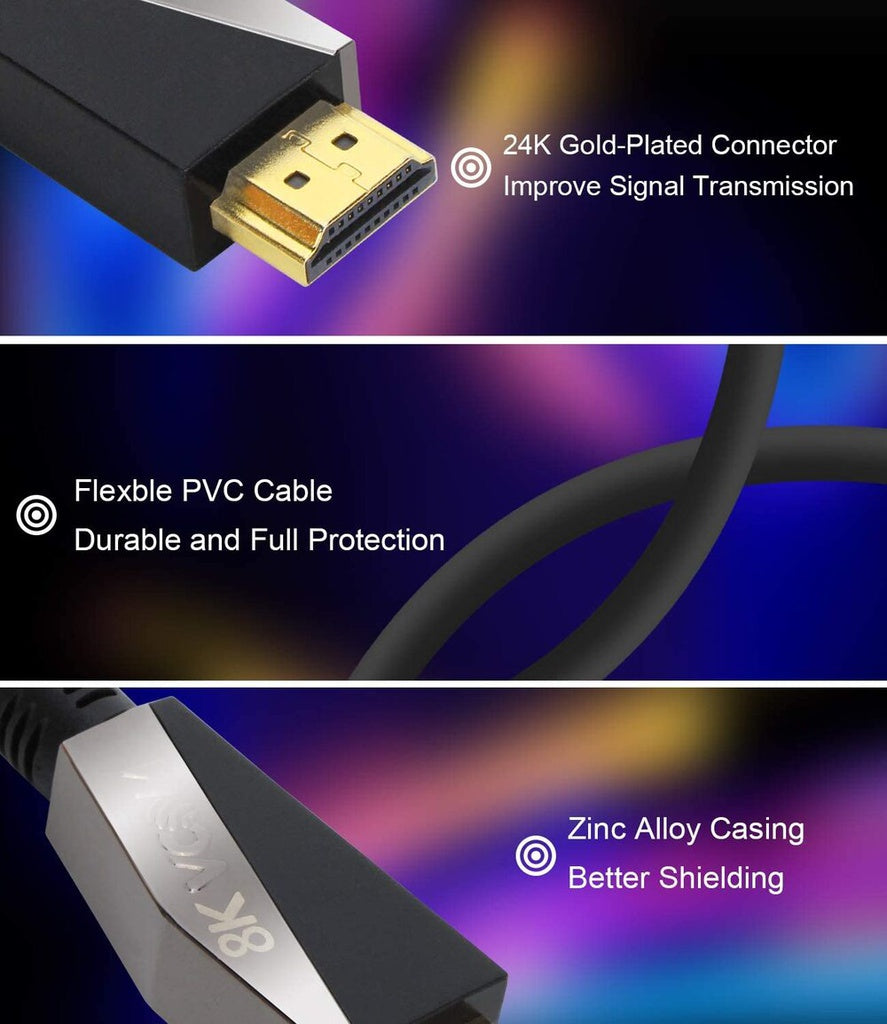

Tough and durable
Constructed with 32AWG pure Copper and triple layer shielding, ensuring high durability and gold-plated connectors ensures good connectivity between devices.
TECHNICAL SPECIFICATIONS
Connector Type: HDMI Male (HDMI A), HDMI Male (HDMI A)
Connector: Gold Plated
Gauge: 30 / 28 AWG
Jacket: Metal + PVC Material
SPECIFICATIONS
Details
Jacket: Metal + PVC Materials
Outer Diameter: 7.3mm/8.0mm
Connector 1: HDMI A Male Gold-Plated
-Widest Diameter: 22mm
-Thickest Diameter: 12mm
Connector 2: HDMI A Male Gold-Plated
-Widest Diameter: 22mm
-Thickest Diameter: 12mm
Conductors: 32AWG(1/0.23mm) Copper
Shielding 1: 100% Coverage Mylar Backed Aluminum Foil
Shielding 2: 32AWG(1/0.23mm) Copper Ground Wire
Shielding 3: Aluminum-Magnesium Alloy Wire Braiding (16/4/0.12mm)
Packaging
1x HDMI cable
Performance
Transfer Rate: Up to 48Gbp/s
Supported Resolutions: Up to 8K, 2160p, 1440p, 1080p, 1080i, 720p, 480p, and 480i Resolution
Audio: Audio return channel, True HD Dolby 7.1 and DTS-HD Master Audio
Standards
Certificate: CE, RoHS
