DVB4304GL

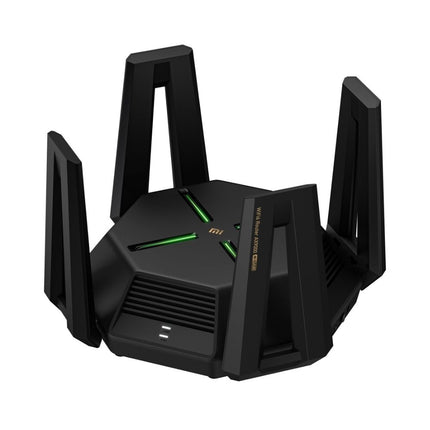

Xiaomi Mi Router AX9000 DVB4304GL
OVERVIEW
AIoT Router AX9000 is an innovative router with a futuristic design suitable for multi-user applications. This router is directed at the audience of gamers who will need a device that reaches a speed of 9000 Gb / s. Such characteristics allow it to be used even in gaming clubs. Meanwhile, the owners should not worry that the game will be interrupted at the most exciting moment due to the low speed. The router can transmit a signal at maximum speed even over long distances despite the presence of obstacles. At the same time, the gadget pleases with its compactness and low weight. The device is equipped with numerous necessary ports.
FEATURES
5GHz For gaming
5GHz For entertainment
2.4GHz For smart home devices
12 independent signal amplifiers
Qualcomm® hexa-core flagship processor
4K QAM + 160 MHz Wi-Fi 6
2.5Gbps Ethernet port
USB 3.0 Super Speed port
SPECIFICATIONS
Product Dimensions L—W—H (per unit): 270mm — 270mm — 174mm
Product color: Black
HARDWARE CONFIGURATION
Processor: Qualcomm® IPQ8072 quad-core A53 2.2GHz CPU
Network processing unit: Dual core 1.7GHz NPU
Memory: 1GB
2.4G Wi-Fi - 4—4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1148Mbps)
5GHz-1 Wi-Fi - 4—4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 4804Mbps)
Antennas: External high gain antenna + internal AIoT antenna
Heat dissipation: Active cooling
WIRELESS SPECIFICATIONS
Tri-band: 2.4GHz, 5GHz-1 and 5GHz-2
SOFTWARE SPECIFICATIONS
Operating system: MiWiFi ROM, a smart router operating system based on Open WRT
Management applications: Supports Web, Android, iOS
WORKING ENVIRONMENT
Working environment temperature: 0-40°C
Operating humidity: 10%-90%RH (non-condensing)
Storage temperature: -40-70°C
Storage humidity: 5%-90%RH (non-condensing)
PACKAGE CONTENT
Mi Router AX9000 —1
Instruction Manual —1
Power adapter —1
Network cable —1
